onsemi Dual Stepper Motor Driver Shield Evaluation Board for AMIS30543C5431RG, MBRS360BT3G, MMBT2222ALT1G,
- RS Stock No.:
- 171-9127
- Mfr. Part No.:
- D-STPR-GEVK
- Brand:
- onsemi
Discontinued
- RS Stock No.:
- 171-9127
- Mfr. Part No.:
- D-STPR-GEVK
- Brand:
- onsemi
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| For Use With | Stepper Motor Driver | |
| Kit Classification | Evaluation Board | |
| Featured Device | AMIS30543C5431RG, MBRS360BT3G, MMBT2222ALT1G, PCA9655EMTTXG | |
| Kit Name | Dual Stepper Motor Driver Shield Evaluation Board | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
For Use With Stepper Motor Driver | ||
Kit Classification Evaluation Board | ||
Featured Device AMIS30543C5431RG, MBRS360BT3G, MMBT2222ALT1G, PCA9655EMTTXG | ||
Kit Name Dual Stepper Motor Driver Shield Evaluation Board | ||
ON Semiconductor Evaluation Board

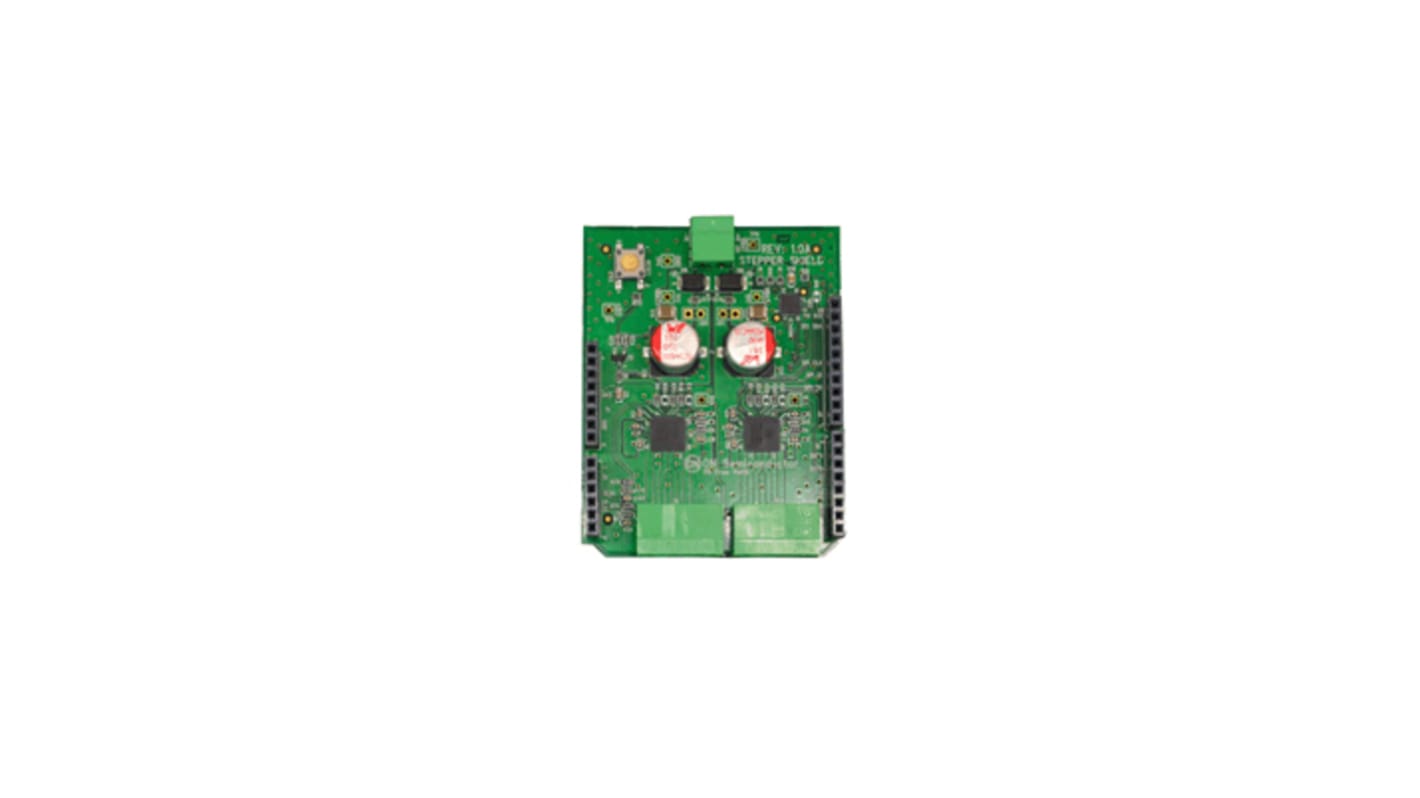

The ON Semiconductor evaluation board is a dual stepper motor driver evaluation board that evaluates the AMIS30543, has a micro-stepping driver. It has an on-chip voltage regulator and reset output. This chip is connected through IO pins and an SPI interface with an external microcontroller that is regulated through the PCA9655E's 16 bits of general-purpose parallel input and output (GPIO) expansion. It is applicable for stepper motor driver.
Features and Benefits:
• 128 micro steps
• Active fly back diodes
• Integrated power and watchdog support for an external MCU
• Programmable peak current up to 3A
• Programmable PWM voltage slopes
• Speed and load angle output
• Active fly back diodes
• Integrated power and watchdog support for an external MCU
• Programmable peak current up to 3A
• Programmable PWM voltage slopes
• Speed and load angle output
