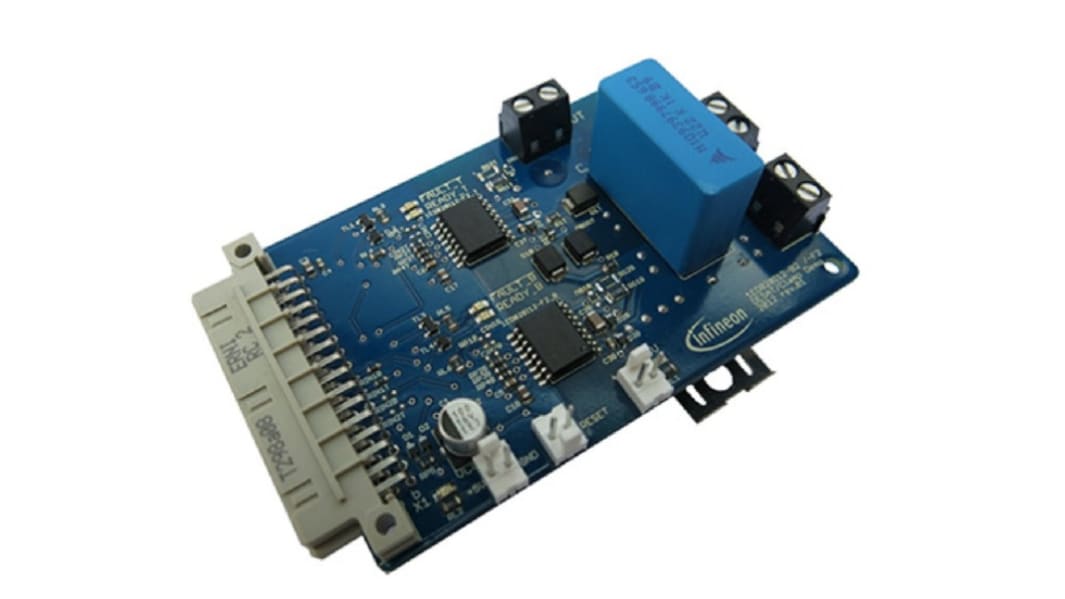

Infineon Evaluation board, IGBT Gate Driver, For Use With Motor Control & Drives/Power Supplies - EVAL1ED020I12B2TOBO1

This evaluation board showcases the functionalities and key features of the Infineon IGBT gate driver 1ED020I12-B2, designed for motor control and power supply applications. Its robust construction provides versatility across various power management environments, making it suitable for users in automation and electrical sectors.

Features & Benefits

• Galvanic isolation enhances operational safety
• Short circuit protection prevents damage to the device
• Active Miller clamp avoids unwanted gate turn-on
• Under voltage lockout guarantees safe operation under low voltage conditions
• Status LEDs enable real-time monitoring during operation
• Bootstrap functionality facilitates high-side IGBT driving

Applications

• Utilised in IGBT-based motor control systems
• Suitable for power supply in diverse circuits
• Effective for developing and testing IGBT driver configurations
• Useful for evaluating performance in power management solutions
• Employed in designing customised IGBT control systems

What types of power supplies are compatible with this board?

The board accommodates a +5V digital supply and a +15V driver output, ensuring compatibility with various power supply configurations.

How is the under voltage lockout feature implemented?

The circuit monitors the +15V supply, deactivating the driver output if the voltage drops below 13V to ensure safe functionality.

What is the maximum output current supported?

The output current is limited to 25A, which is suitable for most motor control applications while maintaining performance.

Can I modify the gate resistors for specific applications?

Yes, the gate resistors can be adjusted to achieve desired switching characteristics for different IGBT modules, optimising performance.

What safety measures are integrated into the board?

Safety features such as short circuit protection and under voltage lockout protect the board and connected components during operation.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Power Management Function	IGBT Gate Driver
	For Use With	Motor Control & Drives, Power Supplies
	Kit Classification	Evaluation Board
	Featured Device	1ED020I12-B2, 1ED020I12-F2
	Kit Name	EVAL-1ED020I12-B2

	Select all
	Brand Infineon
	Power Management Function IGBT Gate Driver
	For Use With Motor Control & Drives, Power Supplies
	Kit Classification Evaluation Board
	Featured Device 1ED020I12-B2, 1ED020I12-F2
	Kit Name EVAL-1ED020I12-B2
