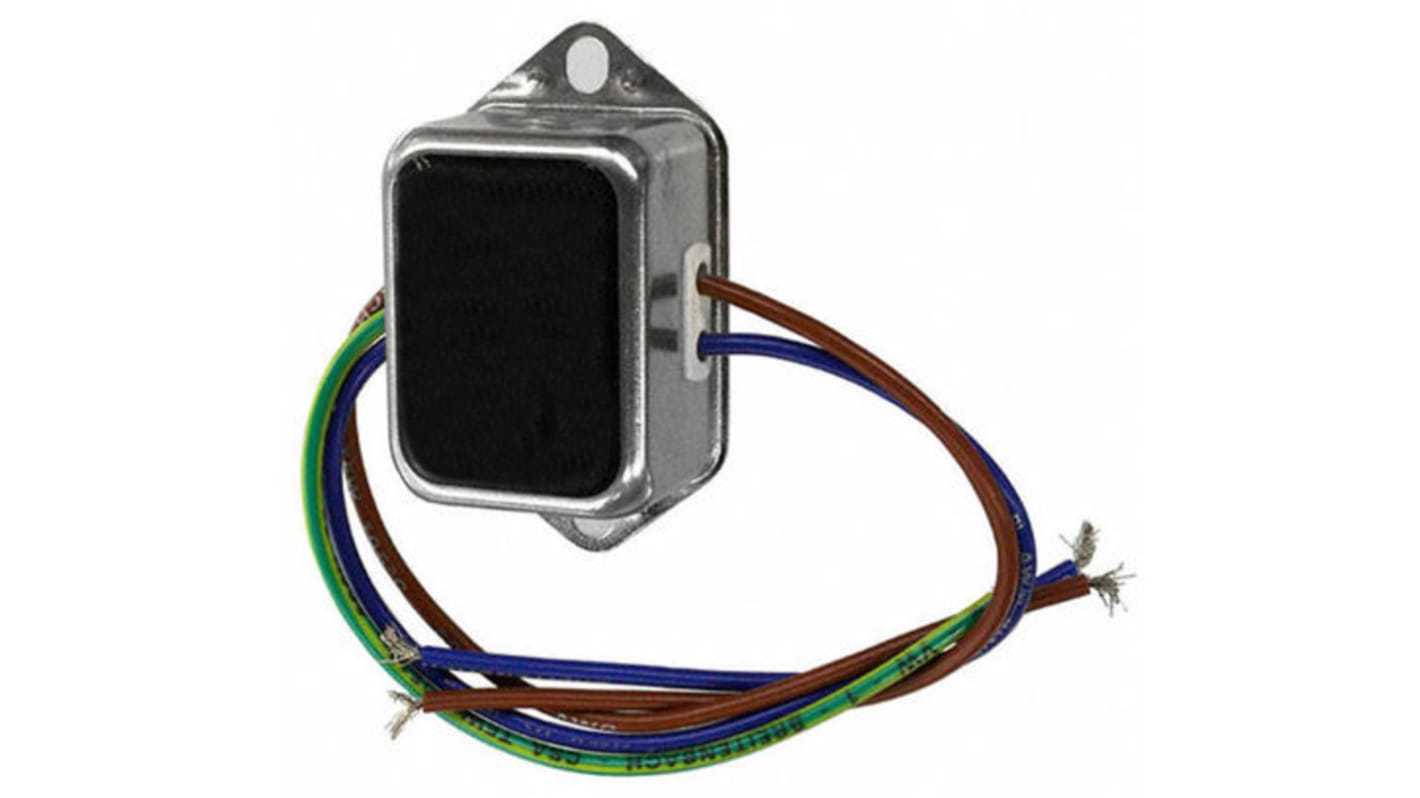

Schaffner, FN2010 1A 250 V ac/dc 0 → 400Hz, Chassis Mount EMI Filter, Wire Lead, Single Phase
- RS Stock No.:
- 776-1128
- Mfr. Part No.:
- FN2010-1-07
- Brand:
- Schaffner
Available to back order for despatch 20/09/2024
Added
Price Each
£13.67
(exc. VAT)
£16.40
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £13.67 |
| 10 - 24 | £12.71 |
| 25 - 49 | £11.89 |
| 50 - 99 | £11.21 |
| 100 + | £10.39 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 776-1128
- Mfr. Part No.:
- FN2010-1-07
- Brand:
- Schaffner
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
FN2010 Series
Low cost chassis mount filters in an aluminium case
General purpose filtering applications
Connection by Faston type terminals
General purpose filtering applications
Connection by Faston type terminals
Approvals
UL recognised component, CSA certified, VDE
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 1A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Lead |
| Number of Phases | 1 |
| Series | FN2010 |
| Number of Stages | Single Stage |
| Operating Frequency | 0 → 400Hz |
| Length | 64mm |
| Depth | 35mm |
| Capacitance | 4.7 nF, 100nF |
| Height | 24.3mm |
| Inductance | 12 mH |
| Dimensions | 64 x 35 x 24.3mm |
| Leakage Current | 0.74 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Power Loss | 0.8W |
- RS Stock No.:
- 776-1128
- Mfr. Part No.:
- FN2010-1-07
- Brand:
- Schaffner
