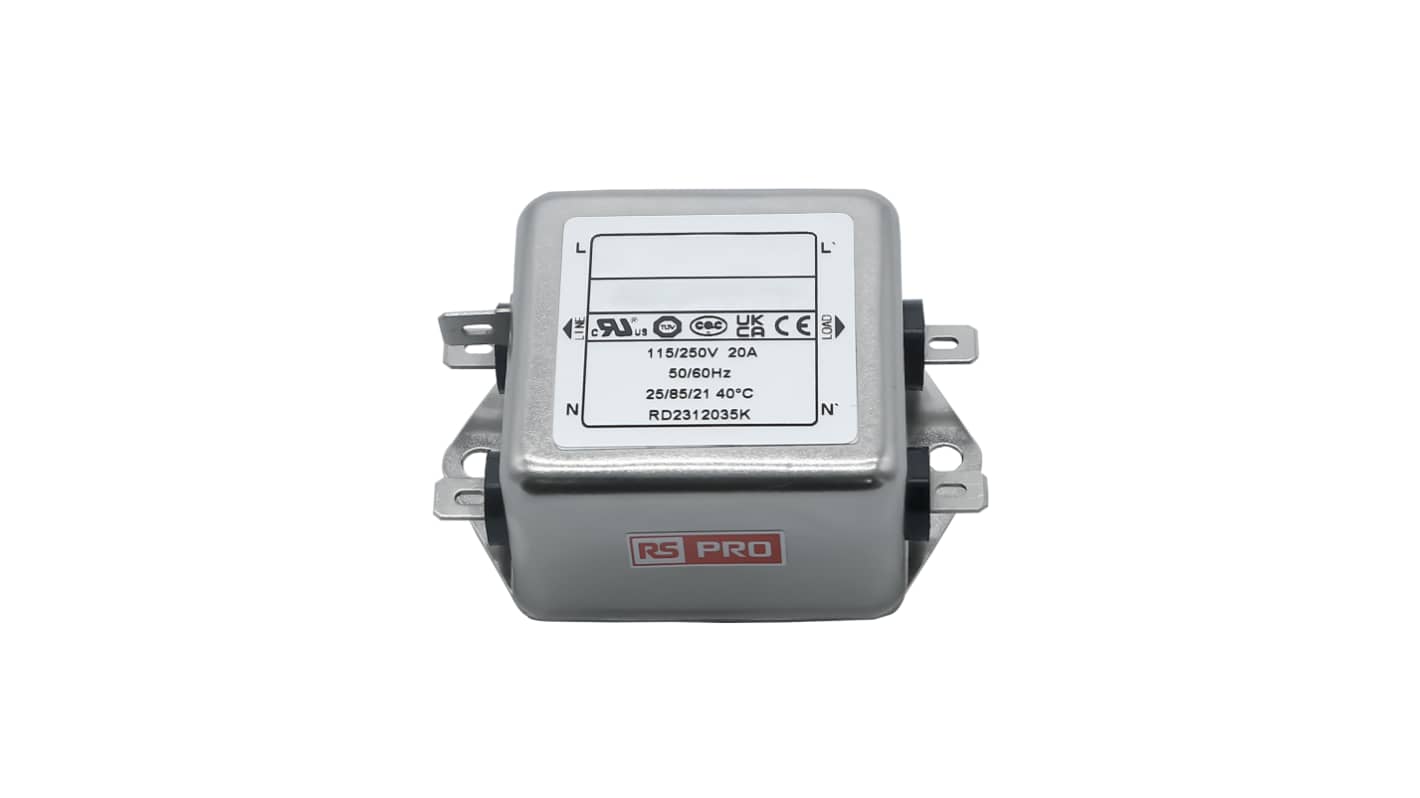

RS PRO, YB12D 20 A 250V ac 50Hz, 60 Hz, Chassis Mount Power Line Filter, Fast-On 1 Phase
- RS Stock No.:
- 286-7254
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£19.20
(exc. VAT)
£23.04
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 70 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £19.20 |
| 10 - 24 | £17.86 |
| 25 - 49 | £16.60 |
| 50 - 99 | £15.44 |
| 100 + | £14.36 |
*price indicative
- RS Stock No.:
- 286-7254
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Power Line Filter | |
| Maximum Current | 20A | |
| Maximum Voltage | 250V ac | |
| Mount Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Series | YB12D | |
| Number of Stages | 1 | |
| Operating Frequency | 50, 60Hz | |
| Capacitance | 0.47μF | |
| Inductance | 0.5mH | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 1mA | |
| Maximum Operating Temperature | 85°C | |
| Height | 29mm | |
| Length | 51mm | |
| Depth | 51mm | |
| Resistance | 1mΩ | |
| Standards/Approvals | UL 1283 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Power Line Filter | ||
Maximum Current 20A | ||
Maximum Voltage 250V ac | ||
Mount Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Series YB12D | ||
Number of Stages 1 | ||
Operating Frequency 50, 60Hz | ||
Capacitance 0.47μF | ||
Inductance 0.5mH | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 1mA | ||
Maximum Operating Temperature 85°C | ||
Height 29mm | ||
Length 51mm | ||
Depth 51mm | ||
Resistance 1mΩ | ||
Standards/Approvals UL 1283 | ||
- COO (Country of Origin):
- CN
RS PRO 20A Single Phase EMI Filter (115/250V)
A general purpose single phase one stage EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment. ;Designed for chassis mounting and built to a compact size of 51 x 51 x 29mm the power line filter is ideal for areas with limited space and is easily connected using the 6.35 x 0.8mm fast on terminals.;Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and suitable for use with general electrical and electronic equipment, sensitive medical equipment, energy applications and communication equipment.
Features and Benefits
Power line EMI filter;Current rated to 20A;Resistance of 1MΩ;Hipot Rating 2250vdc (line to ground), 500Vdc (line to line);IP40 rated;Dimensions of 51 x 51 x 29mm;63mm mounting hole spacing;6.35 x 0.8mm Fast on terminals;Weight of 200g
Standards and Approvals: UL, TUV, CQC, CE, UKCA, UL/EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Standards
UL E542953
