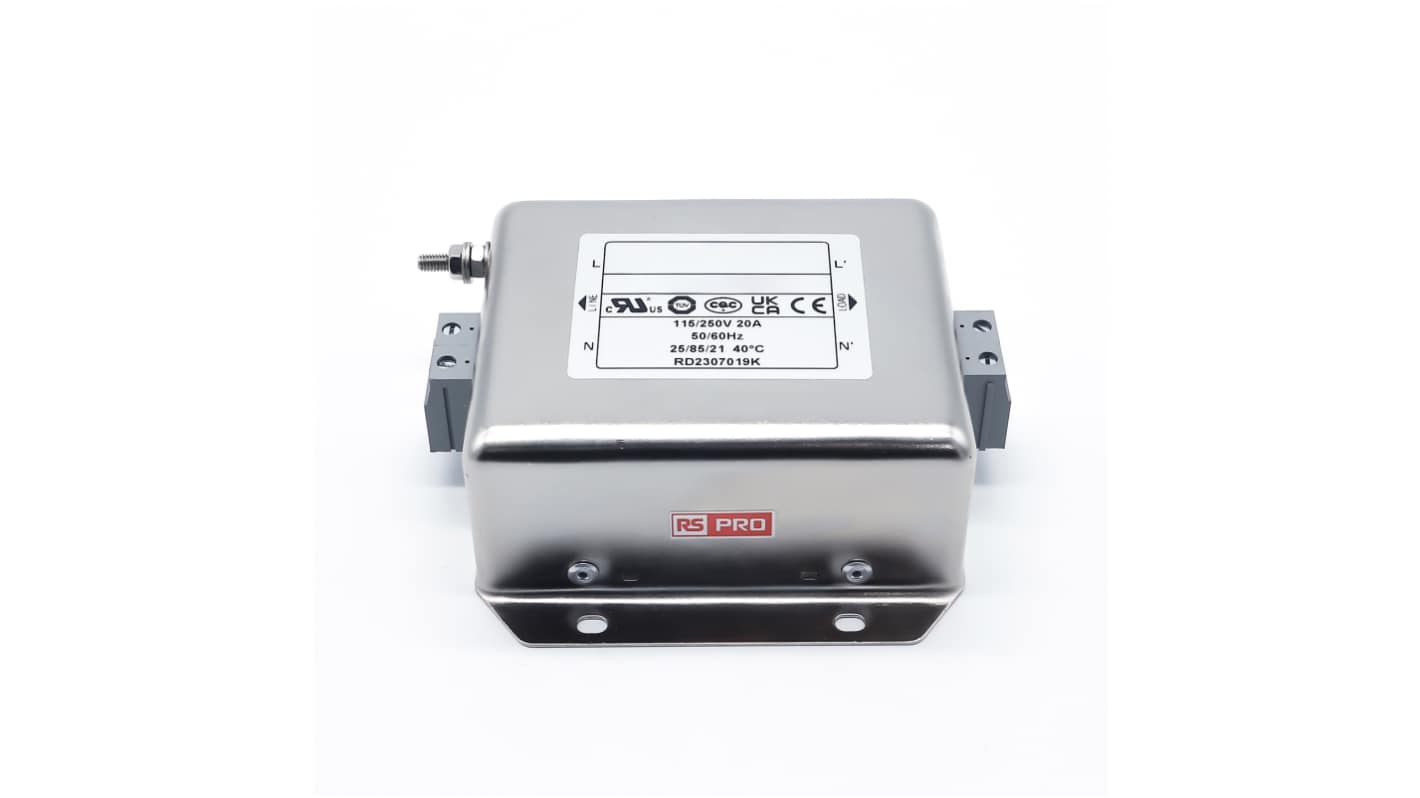

RS PRO, YB12F 20 A 250V ac 50Hz, 60 Hz, Chassis Mount Power Line Filter, Terminal Block 1 Phase
- RS Stock No.:
- 286-7267
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£88.13
(exc. VAT)
£105.76
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 26 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £88.13 |
| 5 - 9 | £81.96 |
| 10 - 24 | £76.22 |
| 25 + | £70.88 |
*price indicative
- RS Stock No.:
- 286-7267
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Current | 20A | |
| Product Type | Power Line Filter | |
| Maximum Voltage | 250V ac | |
| Mount Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 1 | |
| Series | YB12F | |
| Number of Stages | 1 | |
| Operating Frequency | 50, 60Hz | |
| Capacitance | 0.68μF | |
| Inductance | 2mH | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 5.0mA | |
| Maximum Operating Temperature | 85°C | |
| Height | 41mm | |
| Length | 96mm | |
| Depth | 80mm | |
| Resistance | 470kΩ | |
| Standards/Approvals | UL 1283 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Current 20A | ||
Product Type Power Line Filter | ||
Maximum Voltage 250V ac | ||
Mount Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 1 | ||
Series YB12F | ||
Number of Stages 1 | ||
Operating Frequency 50, 60Hz | ||
Capacitance 0.68μF | ||
Inductance 2mH | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 5.0mA | ||
Maximum Operating Temperature 85°C | ||
Height 41mm | ||
Length 96mm | ||
Depth 80mm | ||
Resistance 470kΩ | ||
Standards/Approvals UL 1283 | ||
- COO (Country of Origin):
- CN
RS PRO 20A Single Phase EMI Filter (115/250V)
A general purpose single phase one stage EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment. ;Designed for chassis mounting and built to a compact size of 96 x 80 x 41mm the power line filter is ideal for areas with limited space and is easy to install using the terminal connections.;Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and suitable for use with general electrical and electronic equipment, sensitive medical equipment, energy applications and communication equipment.
Features and Benefits
Power line EMI filter;Current rated to 20A;Resistance of 470KΩ;Hipot Rating 2250vdc (line to ground), 500Vdc (line to line);IP40 rated;Dimensions of 96 x 80 x 41mm;95mm mounting hole spacing;Terminal connections;Weight of 500g
Standards and Approvals: UL, TUV, CQC, CE, UKCA, UL/EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994;
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Standards
UL E542953
