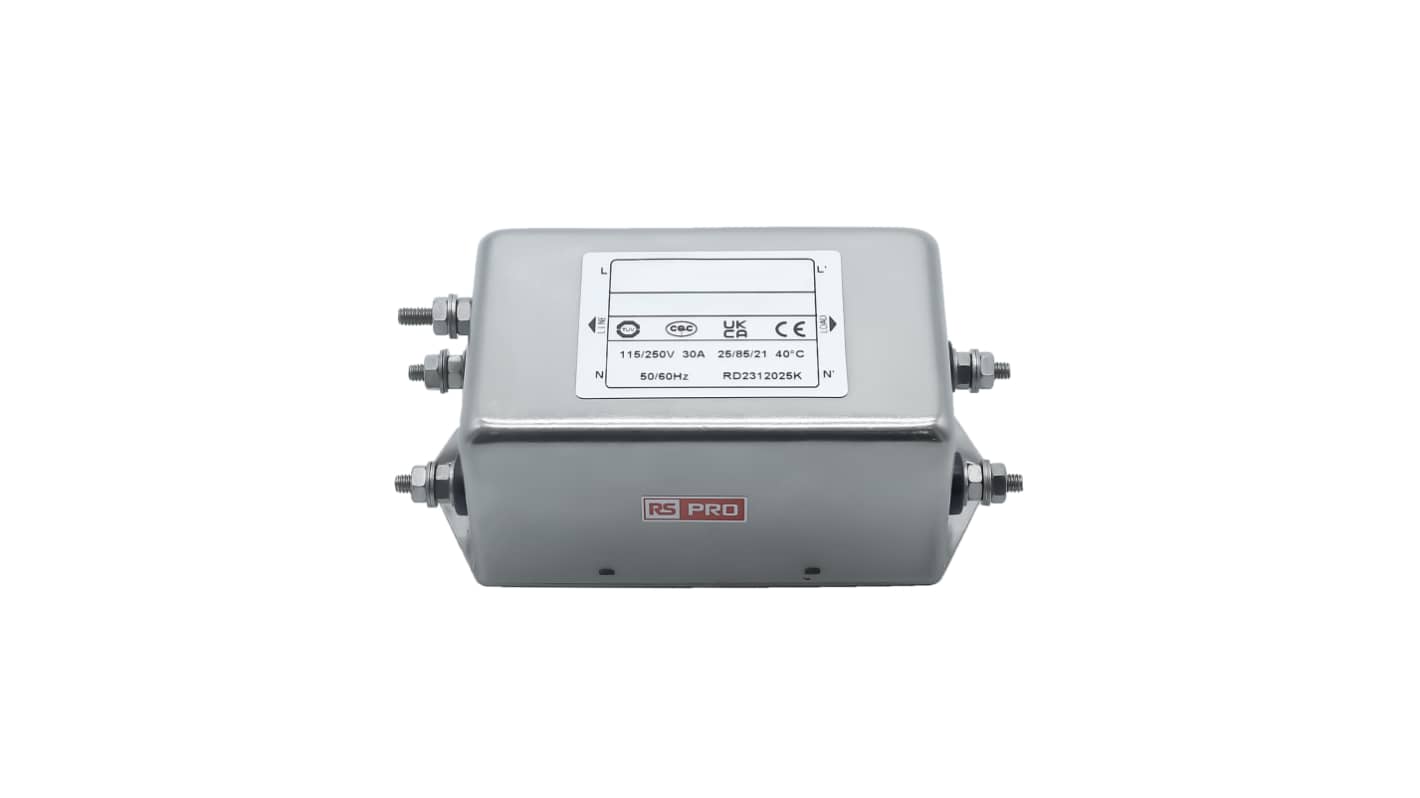

RS PRO 30A 115/250 V ac 50 → 60Hz, Chassis Mount Power Line Filter, Screw, Single Phase

View all Power Line Filters
Bulk discount available

Subtotal (1 unit)*

£24.96

(exc. VAT)

£29.95

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship
  • Plus 999,999,969 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£24.96
10 - 24£23.22
25 - 49£21.59
50 - 99£20.07
100 +£18.67

*price indicative

RS Stock No.:
286-7242
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Current Rating

30A

Maximum Voltage Rating

115/250 V ac

Mounting Type

Chassis Mount

Termination Style

Screw

Number of Phases

1

Number of Stages

Single Stage

Operating Frequency

50 → 60Hz

Length

92mm

Depth

57mm

Height

44.5mm

Capacitance

0.47µF

Inductance

2 x 0.9mH

Dimensions

92 x 57 x 44.5mm

Minimum Operating Temperature

-25°C

Leakage Current

1.0/2.0mA

Maximum Operating Temperature

+85°C

Resistance

1MΩ
