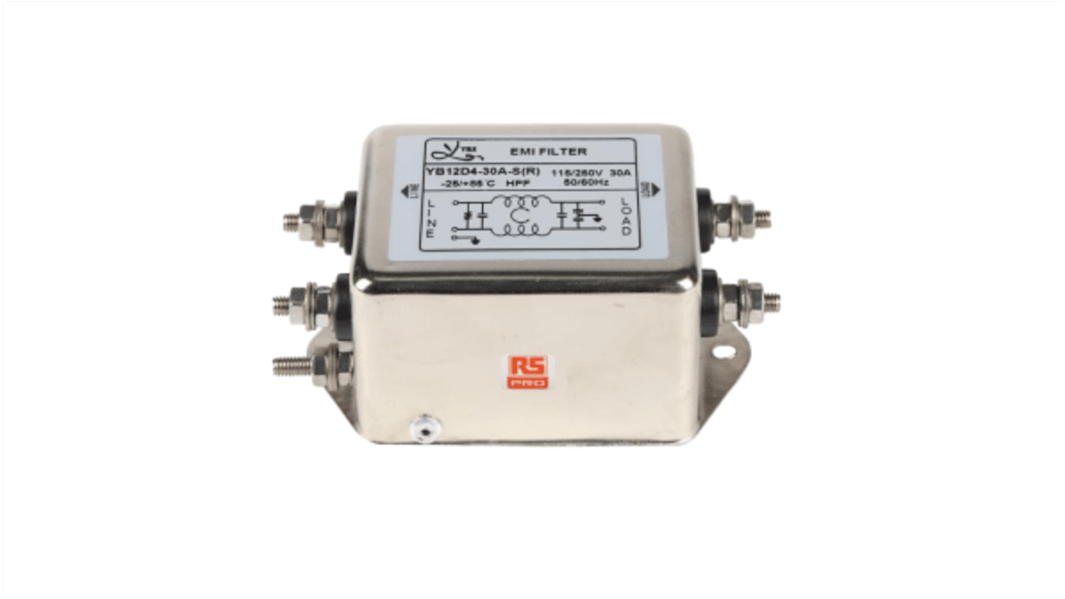

RS PRO 30A 115/250 V ac 50/60Hz, Chassis Mount Power Line Filter, Stud, Single Phase
- RS Stock No.:
- 237-8690
- Brand:
- RS PRO
160 In stock - FREE next working day delivery available
Added
Price Each (In a Box of 80)
£12.054
(exc. VAT)
£14.465
(inc. VAT)
| Units | Per unit | Per Box* |
| 80 + | £12.054 | £964.32 |
| *price indicative | ||
- RS Stock No.:
- 237-8690
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO Power Line Filter
This range of RS PRO Power Line Filters have been designed with the highest quality and versatility in mind
a compact component that can be connected to electrical devices to prevent external radio frequencies from impairing performance.
This power line filter significantly reduces the amount of conducted frequencies between your equipment and the connecting power line. RFI can cause permanent damage to electronic circuits, so filtering them out is crucial to prolong the working life of your devices. The filter also protects against transient voltage spikes, which can result from power outages, short circuits, and nearby lightning strikes.
This RS PRO filter is available with fuse holder for two (5*20mm) fuses (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing. There are a variety of parts and combinations to meet different customer's EMC tests.
This power line filter significantly reduces the amount of conducted frequencies between your equipment and the connecting power line. RFI can cause permanent damage to electronic circuits, so filtering them out is crucial to prolong the working life of your devices. The filter also protects against transient voltage spikes, which can result from power outages, short circuits, and nearby lightning strikes.
This RS PRO filter is available with fuse holder for two (5*20mm) fuses (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing. There are a variety of parts and combinations to meet different customer's EMC tests.
Features and Benefits
- Rated currents up to 10A
- Screw connection
- There are a variety of parts and combinations to meet different customer's EMC tests
- Customized products according to customer's requirementss
Applications
These RS PRO Power Line Filters can ensure equipment runs safely and reliably by Preventing interference, even when exposed to unpredictable electromagnetic environments. This RFI filter is a great size for small and medium-sized machines and household equipment and is a good way to ensure that sensitive electronics, such as medical and industrial equipment, are well protected.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Also available for purchase in a pack size of 80. Please see RS 237-8690
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 30A |
| Maximum Voltage Rating | 115/250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Stud |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Operating Frequency | 50/60Hz |
| Length | 85 |
| Depth | 51 |
| Height | 38 |
| Capacitance | 0.1µF |
| Dimensions | 85*51*38mm |
| Inductance | 2*0.5mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.4/0.8mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 2.2MΩ |
