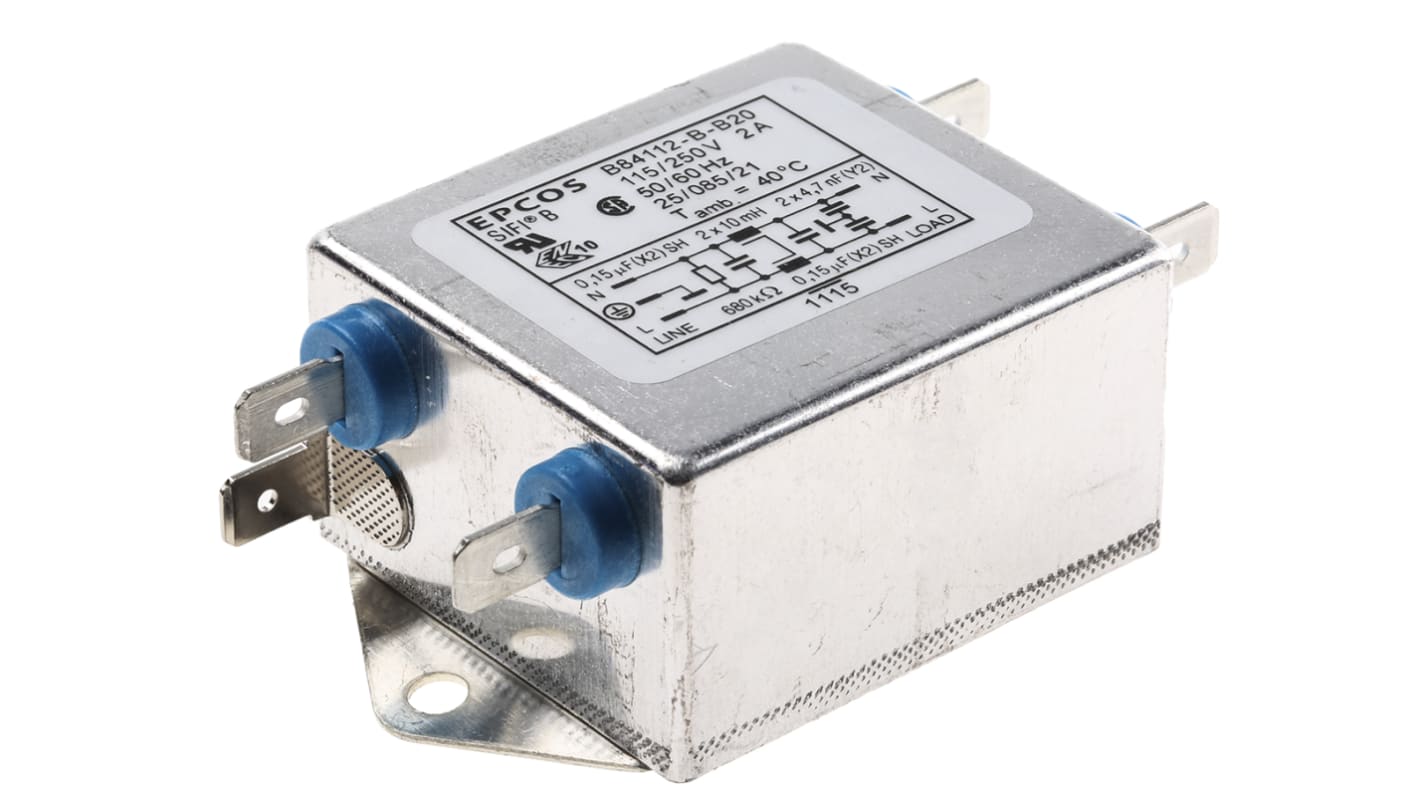

EPCOS B84112B Series 2A 250 V ac 50 → 60Hz Chassis Mount RFI Filter, with Screw Terminals, Single Phase

View all Power Line Filters
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
EPCOS B84112B Series 3A 250 V ac 50 → 60Hz Chassis Mount RFI Filter, with Screw Terminals, Single Phase
RS Stock No.
213-7031

Each

£27.31

(exc. VAT)

£32.77

(inc. VAT)

RS Stock No.:
213-7025
Mfr. Part No.:
B84112B0000B020
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Maximum Current Rating

2A

Maximum Voltage Rating

250 V ac

Mounting Type

Chassis Mount

Termination Style

Screw

Number of Phases

1

Number of Stages

Single Stage

Series

B84112B

Operating Frequency

50 → 60Hz

Length

70mm

Depth

76.5mm

Capacitance

0.1 x 25 μF, 4700 x 2 pF

Height

28.6mm

Dimensions

70 x 76.5 x 28.6

Inductance

10 x 2 mH

Leakage Current

0.369 mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+85°C

Standards Met

UL 1283

B84112 Series


EPCOS B84112 series RFI 2 - line filter is for 1 phase systems. The RFI filter is a compact design and easy to install, it features optimized leakage current. Rated voltage VR: 250 V ac/dc. Rated current IR: 1 A to 20 A

Applications


Industrial electronics
Switch-mode power supplies
Telecommunications
DC applications
Data systems

Approvals

UL Listed, CSA Certified, VDE, SEV, SEMKO, DEMKO
