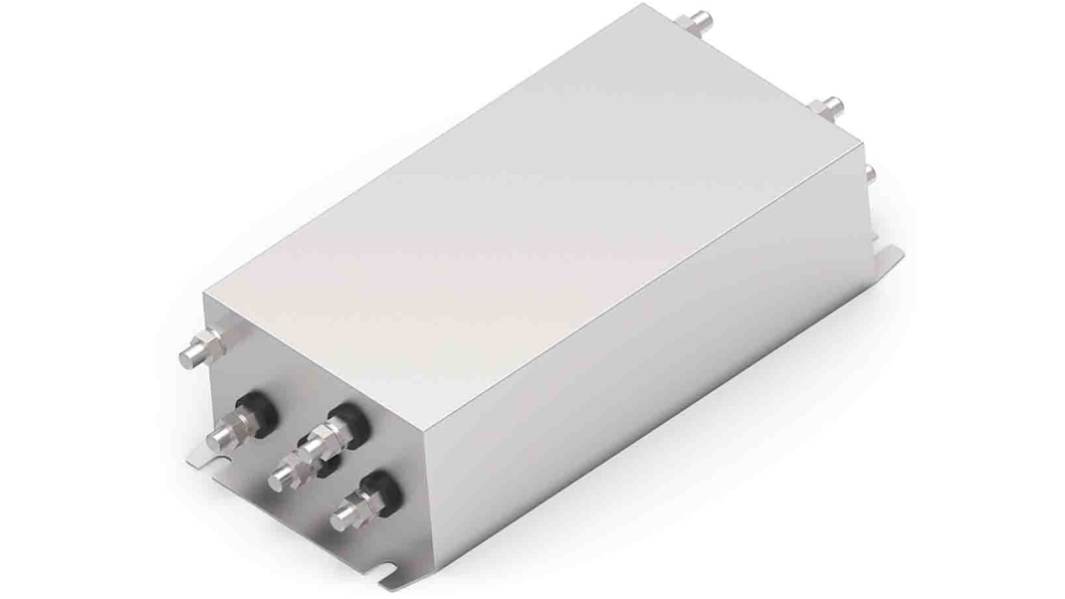

TE Connectivity, KES 150A 520 V ac 50 → 60Hz, Chassis Mount EMI Filter, Threaded Bolt 3 Phase
- RS Stock No.:
- 209-4422
- Mfr. Part No.:
- 150KESS6BFPW
- Brand:
- TE Connectivity
2 In stock - FREE next working day delivery available
Added
Price Each (In a Box of 2)
£447.25
(exc. VAT)
£536.70
(inc. VAT)
| Units | Per unit | Per Box* |
| 2 + | £447.25 | £894.50 |
| *price indicative | ||
- RS Stock No.:
- 209-4422
- Mfr. Part No.:
- 150KESS6BFPW
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
The TE Connectivity KEB series 3-phase general purpose EMI filter has single stage delta (3wire + ground )configuration. It has electrical ratings of 3-phase 520VAC voltage and 150A current. This power line filters are universal and cost-effective with good power attenuation. It is designed to be used in ideal applications include HVAC, rectifier and industrial control systems.
Operating frequency = 50/60Hz
Leakage current = 8mA
Standard attenuation performance
Chassis mounting
Operating temperature range = -25°C to +85ºC
Leakage current = 8mA
Standard attenuation performance
Chassis mounting
Operating temperature range = -25°C to +85ºC
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 150A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Threaded Bolt |
| Number of Phases | 3 |
| Series | KES |
| Number of Stages | Single Stage |
| Operating Frequency | 50 → 60Hz |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 8 mA |
| Maximum Operating Temperature | +85°C |
