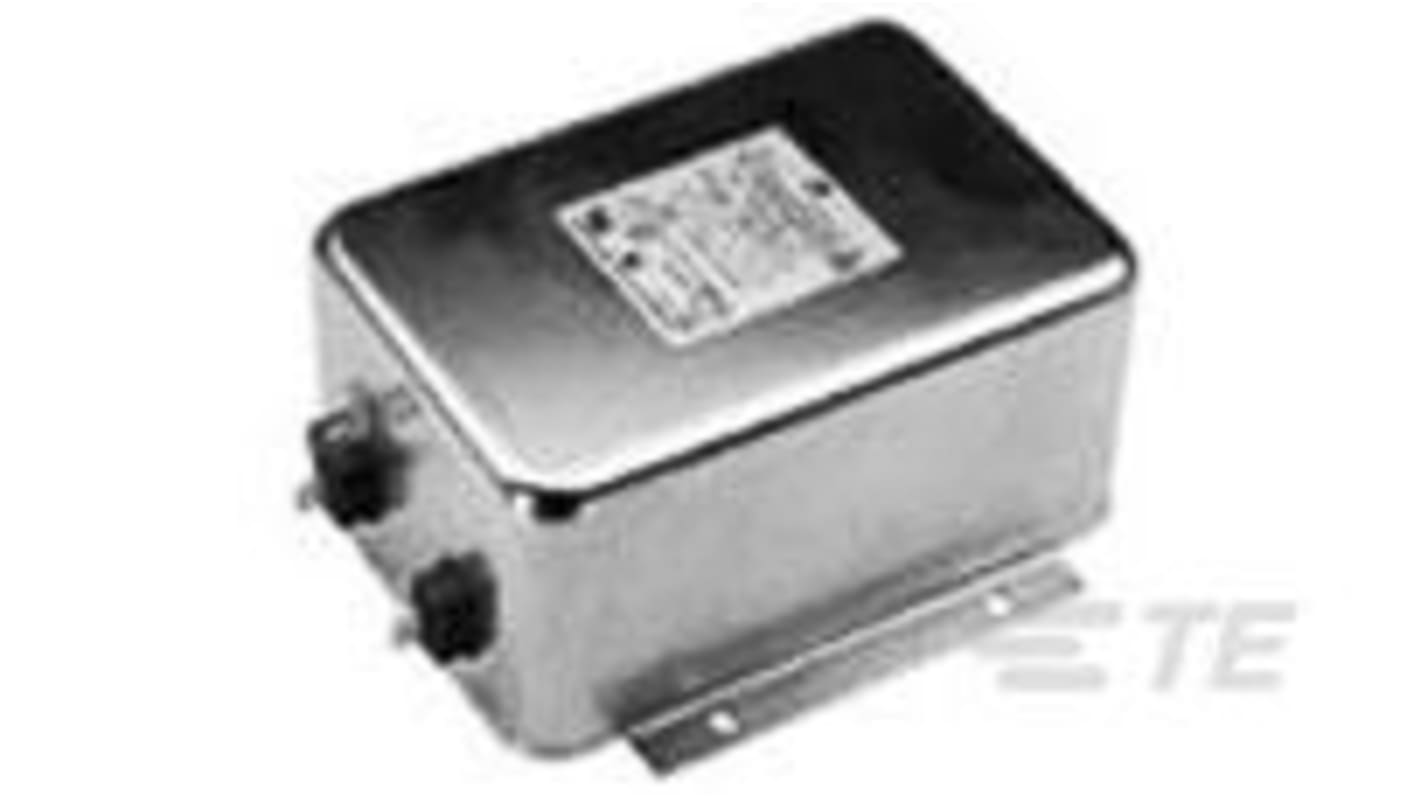

TE Connectivity, Corcom T 15A 250 V ac 50/60Hz, Flange Mount RFI Filter, Fast-On, Single Phase
- RS Stock No.:
- 186-3677
- Mfr. Part No.:
- 15ET1
- Brand:
- TE Connectivity
13 In stock - FREE next working day delivery available
Price Each
£76.40
(exc. VAT)
£91.68
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 1 | £76.40 |
| 2 - 4 | £74.11 |
| 5 - 9 | £71.05 |
| 10 + | £68.00 |
- RS Stock No.:
- 186-3677
- Mfr. Part No.:
- 15ET1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
High Performance RFI Power Line Filters for Switching Power Supplies. Superior common-mode and premium differential-mode attenuation.
High Performance RFI Power Line Filters for Switching Power Supplies
Superior common-mode and premium differential-mode attenuation
Smaller package sizes than the EP Series
ET models with low leakage current
Applications
Consumer electronics
Single phase industrial applications
Drive motors and controllers
Commercial & building equipment
Superior common-mode and premium differential-mode attenuation
Smaller package sizes than the EP Series
ET models with low leakage current
Applications
Consumer electronics
Single phase industrial applications
Drive motors and controllers
Commercial & building equipment
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 15A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | Corcom T |
| Operating Frequency | 50/60Hz |
| Length | 138.4mm |
| Depth | 55.4mm |
| Height | 100.6mm |
| Dimensions | 138.4 x 55.4 x 100.6mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +40°C |
