- RS Stock No.:
- 186-3618
- Mfr. Part No.:
- 6ET7
- Brand:
- TE Connectivity
Available to back order for despatch 03/12/2024
Added
Price Each (In a Box of 10)
£56.782
(exc. VAT)
£68.138
(inc. VAT)
Units | Per unit | Per Box* |
10 + | £56.782 | £567.82 |
*price indicative |
- RS Stock No.:
- 186-3618
- Mfr. Part No.:
- 6ET7
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

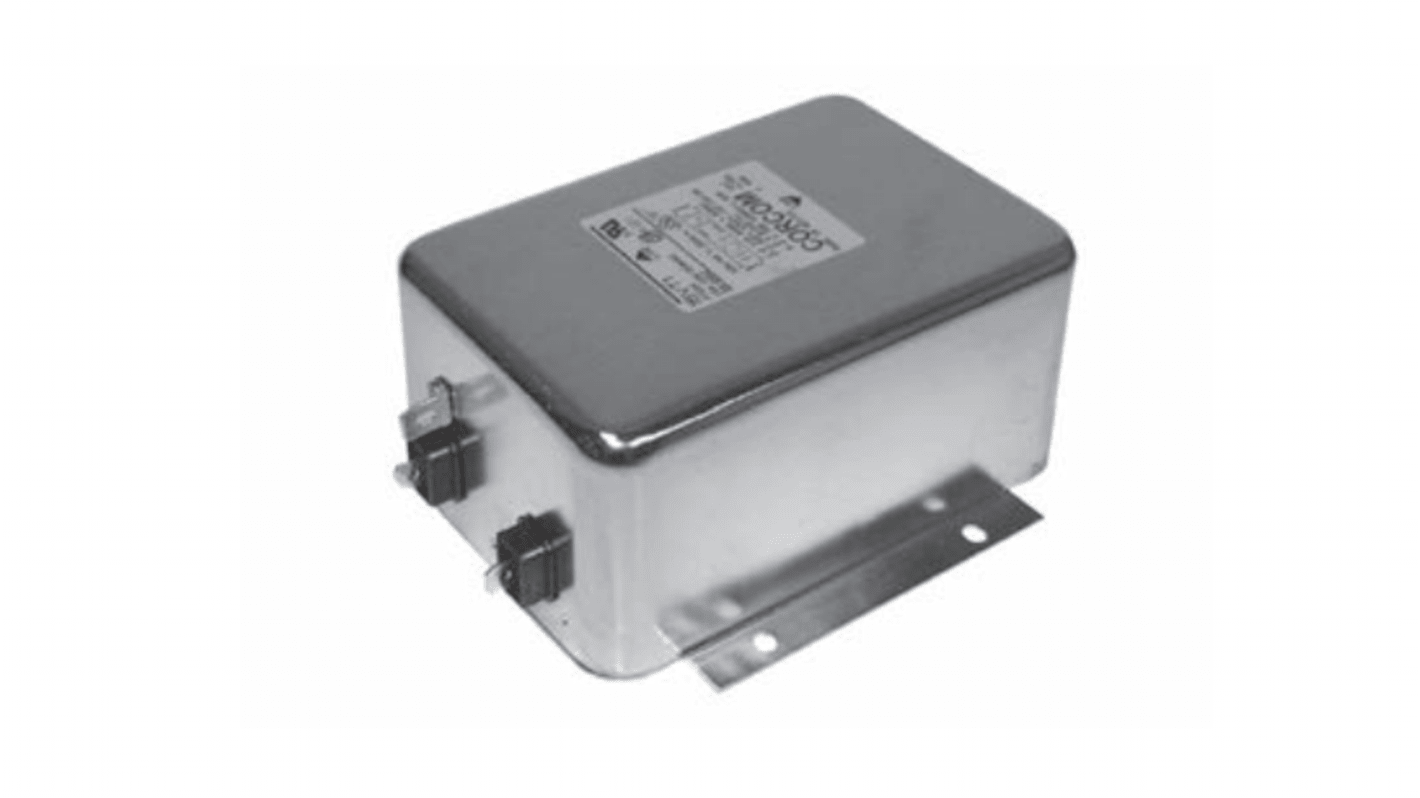

High Performance RFI Power Line Filters for Switching Power Supplies. Superior common-mode and premium differential-mode attenuation.
High Performance RFI Power Line Filters for Switching Power Supplies
Superior common-mode and premium differential-mode attenuation
Smaller package sizes than the EP Series
ET models with low leakage current
Applications
Consumer electronics
Single phase industrial applications
Drive motors and controllers
Commercial & building equipment
Superior common-mode and premium differential-mode attenuation
Smaller package sizes than the EP Series
ET models with low leakage current
Applications
Consumer electronics
Single phase industrial applications
Drive motors and controllers
Commercial & building equipment
Specifications
Attribute | Value |
---|---|
Maximum Current Rating | 6A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | Screw Mount |
Termination Style | Spade |
Number of Phases | 1 |
Series | Corcom T |
Operating Frequency | 50/60Hz |
Length | 89.4mm |
Depth | 45.2mm |
Height | 57.2mm |
Dimensions | 89.4 x 45.2 x 57.2mm |
Leakage Current | 0.5 mA |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +40°C |
