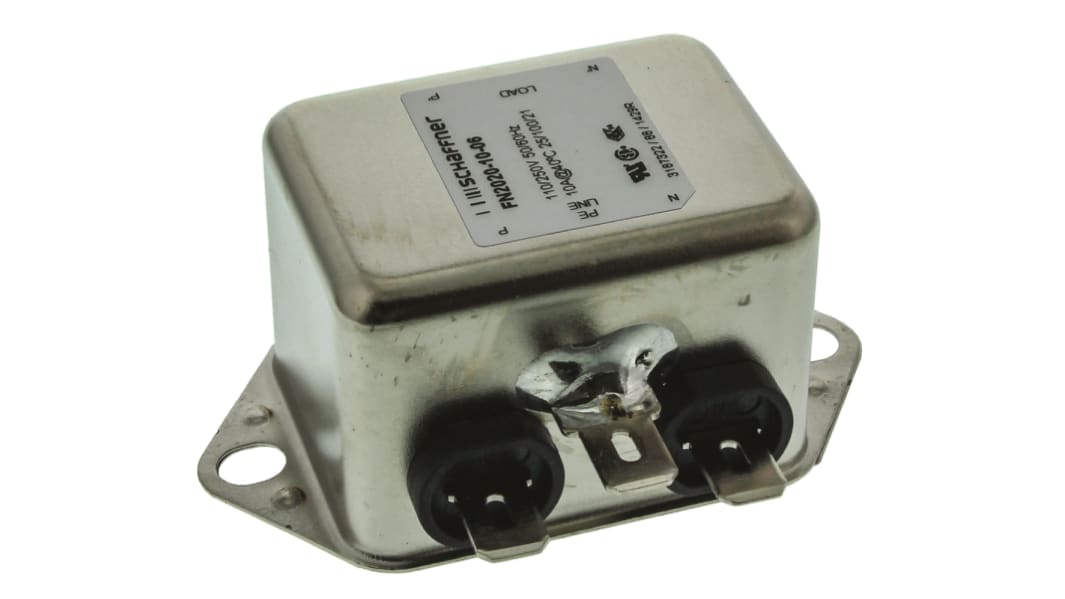

Schaffner, FN2020 10A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase

View all Power Line Filters

Subtotal (1 box of 60 units)*

£652.80

(exc. VAT)

£783.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 300 unit(s) ready to ship
  • Plus 1,200 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
60 +£10.88£652.80

*price indicative

RS Stock No.:
170-5002
Mfr. Part No.:
FN2020-10-06
Brand:
Schaffner
Find similar products by selecting one or more attributes.
Select all

Brand

Schaffner

Maximum Current Rating

10A

Maximum Voltage Rating

250 V ac/dc

Mounting Type

Chassis Mount

Termination Style

Fast-On

Number of Phases

1

Number of Stages

Single Stage

Series

FN2020

Operating Frequency

400Hz

Length

64mm

Depth

35mm

Height

29.3mm

Capacitance

4.7 nF, 150nF

Inductance

800 μH

Dimensions

64 x 35 x 29.3mm

Leakage Current

0.74 mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+100°C

Resistance

1MΩ

Power Loss

2.9W

FN2020 Series


FN2020 filters are designed for easy and fast chassis mounting and are also avaialble as B versions, the Medical option and A version the Safety option. All FN2020 filters provide a general purpose attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.

Higher phase to neutral capacitance for better differential mode performance
Connection by 0.25in Faston terminals

Approvals

UL recognised component, CSA certified, VDE

Approvals

UL recognised component, CSA certified, VDE
