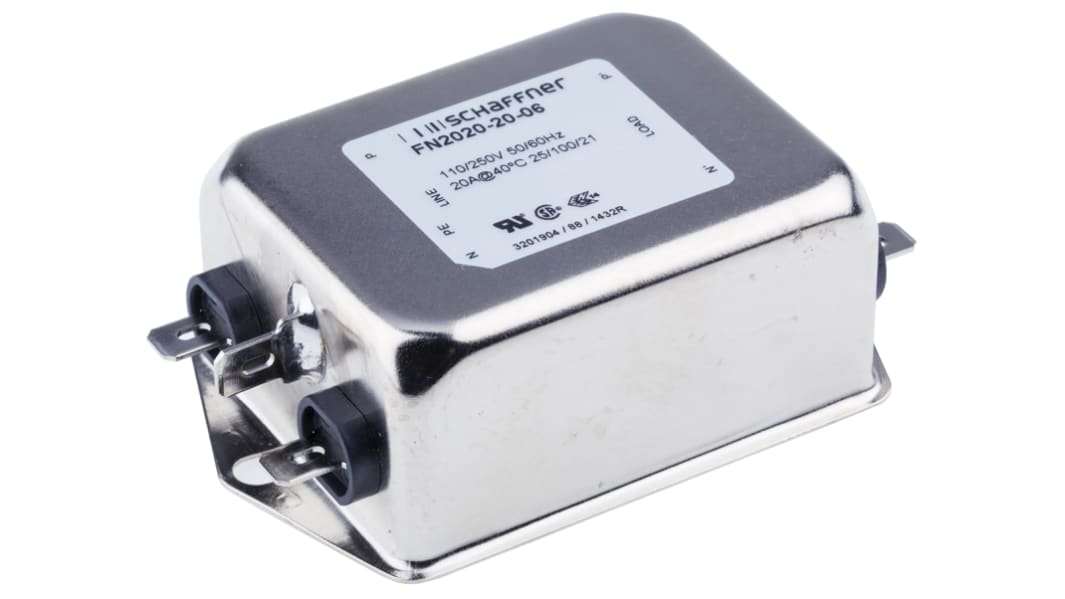

Schaffner, FN2020 20 A 250V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On 1 Phase
- RS Stock No.:
- 466-8515
- Mfr. Part No.:
- FN2020-20-06
- Brand:
- Schaffner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£21.07
(exc. VAT)
£25.28
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 142 unit(s) shipping from 20 July 2026
- Plus 22 unit(s) shipping from 20 July 2026
- Plus 66 unit(s) shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £21.07 |
| 10 - 24 | £19.60 |
| 25 - 49 | £18.61 |
| 50 - 99 | £18.11 |
| 100 + | £17.64 |
*price indicative
- RS Stock No.:
- 466-8515
- Mfr. Part No.:
- FN2020-20-06
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Product Type | EMI Filter | |
| Maximum Current | 20A | |
| Maximum Voltage | 250V ac/dc | |
| Mount Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Number of Stages | 1 | |
| Series | FN2020 | |
| Operating Frequency | 400Hz | |
| Capacitance | 150nF | |
| Minimum Operating Temperature | -25°C | |
| Inductance | 600μH | |
| Leakage Current | 0.74mA | |
| Maximum Operating Temperature | 100°C | |
| Depth | 85mm | |
| Length | 54mm | |
| Height | 30.3mm | |
| Resistance | 1mΩ | |
| Power Loss | 3.8W | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Schaffner | ||
Product Type EMI Filter | ||
Maximum Current 20A | ||
Maximum Voltage 250V ac/dc | ||
Mount Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Number of Stages 1 | ||
Series FN2020 | ||
Operating Frequency 400Hz | ||
Capacitance 150nF | ||
Minimum Operating Temperature -25°C | ||
Inductance 600μH | ||
Leakage Current 0.74mA | ||
Maximum Operating Temperature 100°C | ||
Depth 85mm | ||
Length 54mm | ||
Height 30.3mm | ||
Resistance 1mΩ | ||
Power Loss 3.8W | ||
Standards/Approvals No | ||
FN2020 Series
FN2020 filters are designed for easy and fast chassis mounting and are also avaialble as B versions, the Medical option and A version the Safety option. All FN2020 filters provide a general purpose attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.
Higher phase to neutral capacitance for better differential mode performance
Connection by 0.25in Faston terminals
Approvals
UL recognised component, CSA certified, VDE
