EPCOS, B84142B*R000 25A 250 V ac/dc 60Hz, Screw Mount EMC Filter, Terminal Block, Single Phase
- RS Stock No.:
- 167-8335
- Mfr. Part No.:
- B84142B0025R000
- Brand:
- EPCOS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 167-8335
- Mfr. Part No.:
- B84142B0025R000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPCOS | |
Maximum Current Rating | 25A | |
Maximum Voltage Rating | 250 V ac/dc | |
Mounting Type | Screw Mount | |
Termination Style | Terminal Block | |
Number of Phases | 1 | |
Series | B84142B*R000 | |
Operating Frequency | 60Hz | |
Length | 113mm | |
Depth | 206mm | |
Height | 81mm | |
Dimensions | 113 x 206 x 81mm | |
Minimum Operating Temperature | -25°C | |
Leakage Current | 2.77 mA | |
Maximum Operating Temperature | +100°C | |
Resistance | 9mΩ | |
Standards Met | IEC 60939 | |
Select all | ||
---|---|---|
Brand EPCOS | ||
Maximum Current Rating 25A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type Screw Mount | ||
Termination Style Terminal Block | ||
Number of Phases 1 | ||
Series B84142B*R000 | ||
Operating Frequency 60Hz | ||
Length 113mm | ||
Depth 206mm | ||
Height 81mm | ||
Dimensions 113 x 206 x 81mm | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 2.77 mA | ||
Maximum Operating Temperature +100°C | ||
Resistance 9mΩ | ||
Standards Met IEC 60939 | ||

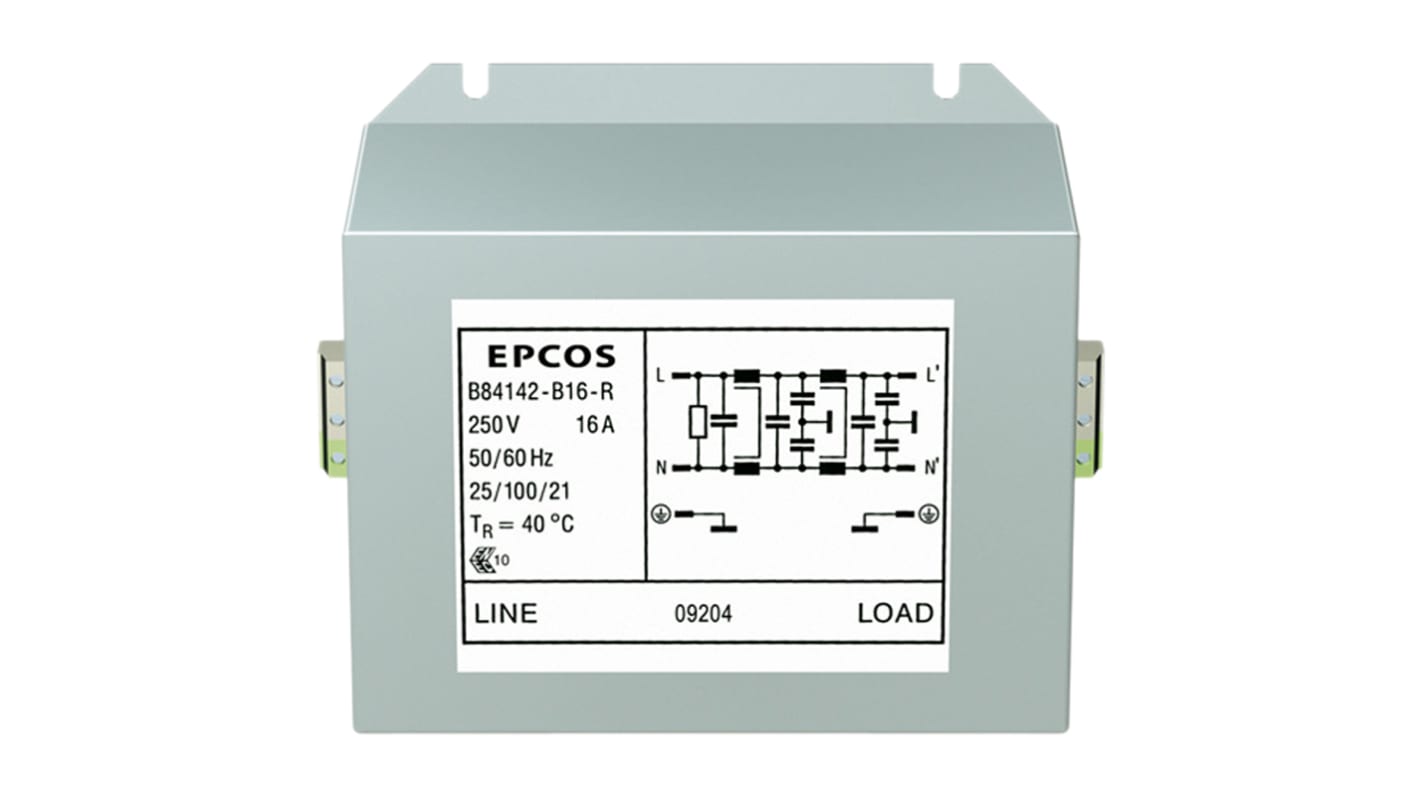

B84142-Bx-R Series
EPCOS B84142-Bx-R Series Power line filters for convertors and power electronics. These 2 line filters feature a high insertion loss due to its two stage construction, easy to install and has optimised leakage current. Rated voltage VR: 250 V AC/DC.Rated current IR: 8 A to 25 A.
Applications
Frequency convertors for motor drives
Pumps
Elevators
Conveyer systems
HVAC systems (heating heating, ventilation and air conditioning)
DC applications
Power supplies
Pumps
Elevators
Conveyer systems
HVAC systems (heating heating, ventilation and air conditioning)
DC applications
Power supplies
Standards
EN 133 200
Approvals
UL1283, CSA22.2 No.8 1986
