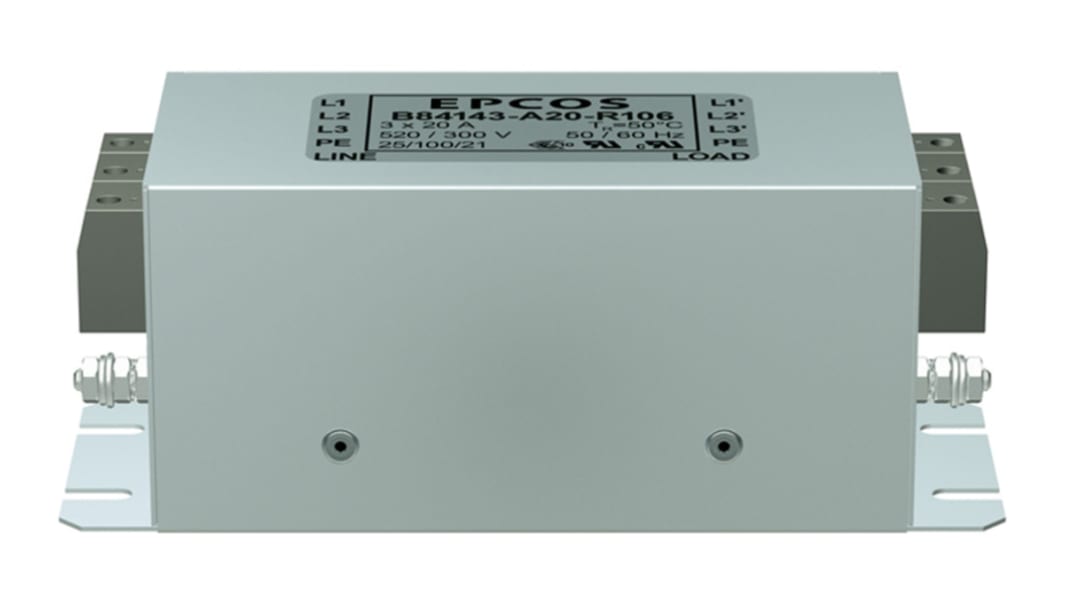

EPCOS, B84143A*R106 10A 520 V ac 50 → 60Hz, Flange Mount EMC Filter, Screw 3 Phase
- RS Stock No.:
- 167-8202
- Mfr. Part No.:
- B84143A0010R106
- Brand:
- EPCOS
8 In stock - FREE next working day delivery available
Added
Price Each (In a Box of 4)
£84.663
(exc. VAT)
£101.596
(inc. VAT)
| Units | Per unit | Per Box* |
| 4 - 4 | £84.663 | £338.652 |
| 8 + | £81.278 | £325.112 |
| *price indicative | ||
- RS Stock No.:
- 167-8202
- Mfr. Part No.:
- B84143A0010R106
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
Product Details
B84143A*R106 Series
Easy to install 3-line filter in a compact metal case
Optimised for long motor cables and operation under full load
High insertion loss
Optimised leakage current
Applications include: Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies, Textile machines, Packaging machines and Machine–tools
IP 20 rated
Optimised for long motor cables and operation under full load
High insertion loss
Optimised leakage current
Applications include: Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies, Textile machines, Packaging machines and Machine–tools
IP 20 rated
Standards
IEC 60939
Approvals
UL 1283, CSA 22.2 No.8
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Series | B84143A*R106 |
| Number of Stages | Single Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 150mm |
| Depth | 57.5mm |
| Height | 58mm |
| Dimensions | 150 x 57.5 x 58mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 3.1 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 5.5mΩ |
