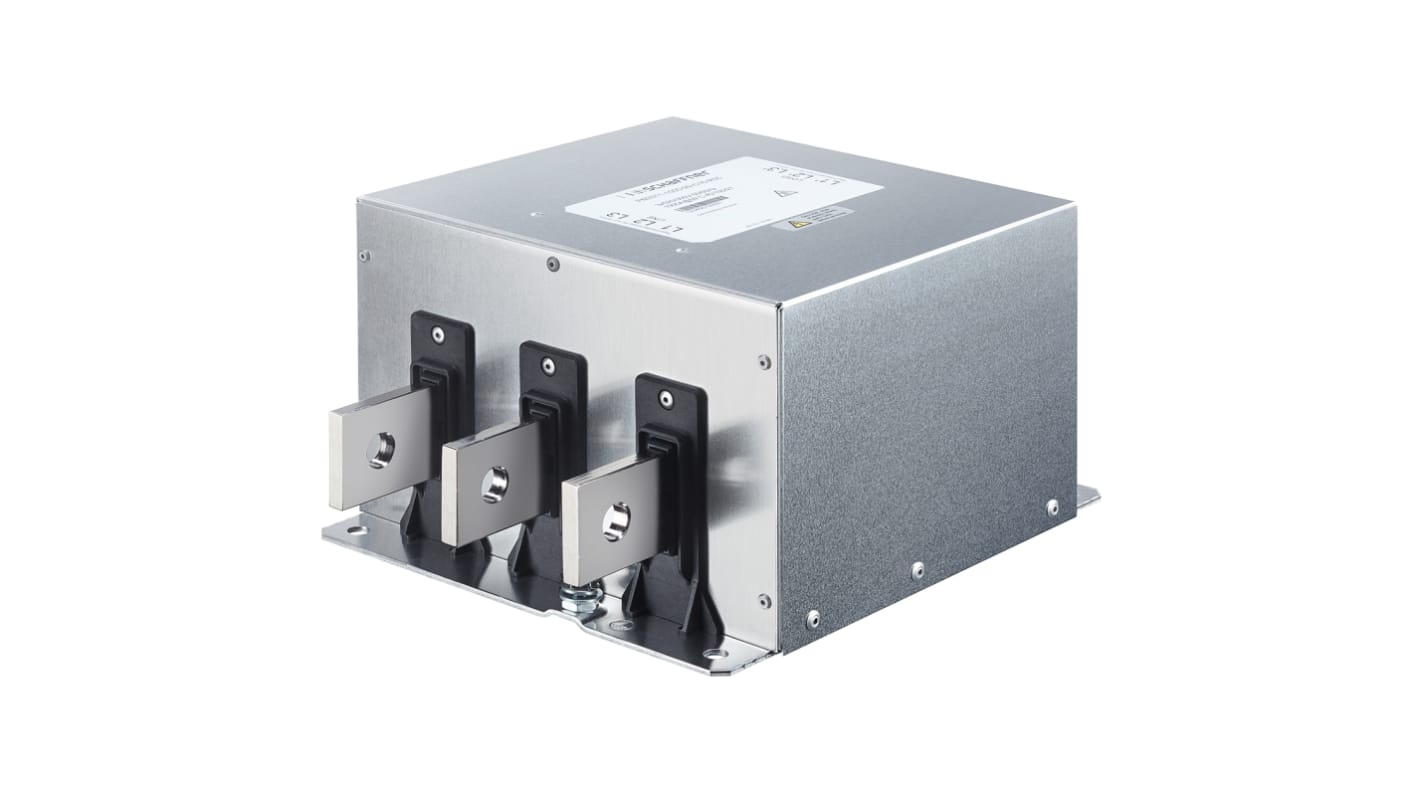

Schaffner, FN3311 250A 520/300 V ac DC → 60Hz, Chassis Mount EMI Filter, Busbar 3 Phase
- RS Stock No.:
- 146-3444
- Distrelec Article No.:
- 304-21-991
- Mfr. Part No.:
- FN3311-250-99-C16-R55
- Brand:
- Schaffner
Bulk discount available
Subtotal (1 unit)*
£460.57
(exc. VAT)
£552.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £460.57 |
5 - 9 | £442.15 |
10 + | £428.33 |
*price indicative
- RS Stock No.:
- 146-3444
- Distrelec Article No.:
- 304-21-991
- Mfr. Part No.:
- FN3311-250-99-C16-R55
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schaffner | |
Maximum Current Rating | 250A | |
Maximum Voltage Rating | 520/300 V ac | |
Mounting Type | Chassis Mount | |
Termination Style | Busbar | |
Number of Phases | 3 | |
Number of Stages | Single Stage | |
Series | FN3311 | |
Operating Frequency | DC → 60Hz | |
Length | 170mm | |
Depth | 195mm | |
Height | 140mm | |
Dimensions | 170 x 195 x 140mm | |
Leakage Current | 0.06 mA | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +100°C | |
Power Loss | 18W | |
Select all | ||
---|---|---|
Brand Schaffner | ||
Maximum Current Rating 250A | ||
Maximum Voltage Rating 520/300 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Busbar | ||
Number of Phases 3 | ||
Number of Stages Single Stage | ||
Series FN3311 | ||
Operating Frequency DC → 60Hz | ||
Length 170mm | ||
Depth 195mm | ||
Height 140mm | ||
Dimensions 170 x 195 x 140mm | ||
Leakage Current 0.06 mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Power Loss 18W | ||
The FN 3311/FN 3310 series are the most compact dedicated high current AC filters, not only suitable for PV applications, but being an optimum fit with most modern PV inverter topologies. In addition the filters can be configured in a very flexible way to fulfil custom specific application requirements. All FN 3311/FN 3310 come in unsymmetrical housings, which help to prevent inverse installation and wrong electrical connection.
High current 3-phase filter up to 2300 A
Extremly compact and light weight design
Minimum installation foot print
Performance optimised for standard purpose
applications
FN 3310 series without Cy capacitors to ground
Extremly compact and light weight design
Minimum installation foot print
Performance optimised for standard purpose
applications
FN 3310 series without Cy capacitors to ground
