RS PRO Modified Sine Wave 4000W Power Inverter, 12V dc Input, 230V ac Output
- RS Stock No.:
- 816-0078
- Brand:
- RS PRO
34 In stock - FREE next working day delivery available
Price Each
£585.96
(exc. VAT)
£703.15
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £585.96 |
5 - 9 | £568.38 |
10 - 24 | £550.80 |
25 - 49 | £533.22 |
50 + | £515.64 |
- RS Stock No.:
- 816-0078
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

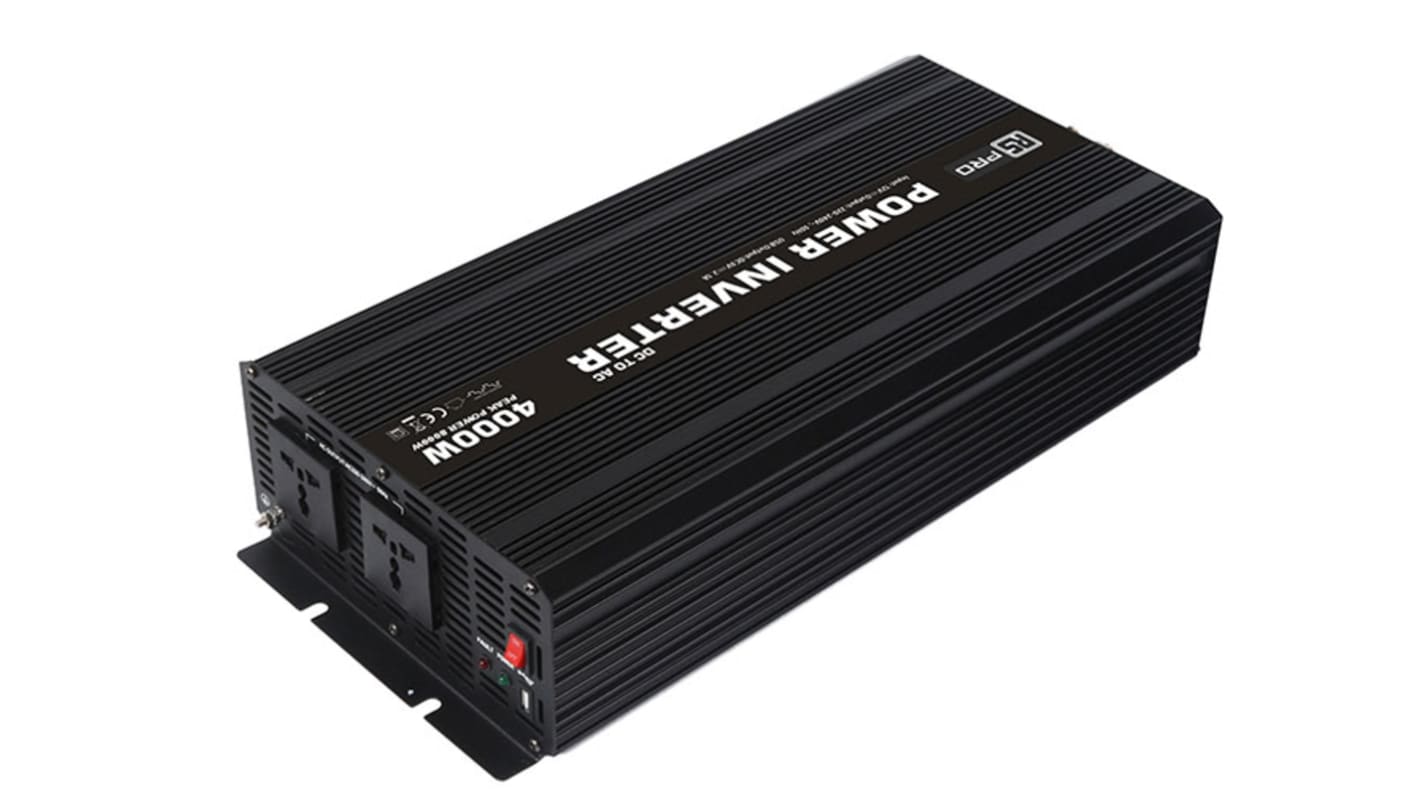

RS PRO 4,000 W Fixed Installation DC-AC Power Inverter, 24 V DC / 230 V AC
This fixed installation DC-AC power inverter essentially converts DC power into AC power, which runs most homes. It uses a modified sine wave to simulate an alternating current, allowing you to reroute your car battery for AC-powered tools and devices.
The 4,000 W inverter features a straightforward manual switch to turn it on or off. Two coloured LED lights indicate whether the device is working (green) or not (red). The anodized aluminium case is both durable and efficient at dissipating heat. The USB and universal UK/EU output sockets enable connection to a variety of tools and appliances.
The modified sine wave inverter also has safeguards to keep you and your equipment safe from short-circuits, overloads and overheating. This handy device is essential for situations where mains electricity isn't available, but you need to use AC-powered tools.
The 4,000 W inverter features a straightforward manual switch to turn it on or off. Two coloured LED lights indicate whether the device is working (green) or not (red). The anodized aluminium case is both durable and efficient at dissipating heat. The USB and universal UK/EU output sockets enable connection to a variety of tools and appliances.
The modified sine wave inverter also has safeguards to keep you and your equipment safe from short-circuits, overloads and overheating. This handy device is essential for situations where mains electricity isn't available, but you need to use AC-powered tools.
Features and Benefits
• Input/output voltage of 12 V DC and 230 V AC
• Output power of 4,000 W (continuous), 8,000 W (intermittent)
• Universal output connection
• Weight of 8.2 kg
• Length of 520 mm
• Width of 230 mm
• Depth of 108 mm
• Minimum operating temperature of 0°C
• Maximum operating temperature of +40°C
• 50/60 Hz output frequency range
• Over-temperature, over-voltage, overload, reverse polarity, short-circuit protection features
• Output power of 4,000 W (continuous), 8,000 W (intermittent)
• Universal output connection
• Weight of 8.2 kg
• Length of 520 mm
• Width of 230 mm
• Depth of 108 mm
• Minimum operating temperature of 0°C
• Maximum operating temperature of +40°C
• 50/60 Hz output frequency range
• Over-temperature, over-voltage, overload, reverse polarity, short-circuit protection features
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Input Voltage | 12V dc |
Output Voltage | 230V ac |
Output Power Continuous | 4000W |
Output Power Intermittent | 8000W |
Output Power Waveform | Modified Sine Wave |
Output Connection Type | Universal |
Length | 520mm |
Width | 230mm |
Depth | 108mm |
Weight | 8.2kg |
Minimum Temperature | 0°C |
Maximum Temperature | +40°C |
Special Features | Compact, East to Operate, LED Indicators, Lightweight |
Protection Features | Over Temperature Protection, Over Voltage Protection, Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
Output Frequency Range | 50/60Hz |
