- RS Stock No.:
- 192-3575
- Mfr. Part No.:
- B32305A4302B040
- Brand:
- EPCOS
Available to back order for despatch 31/01/2025
Added
Price Each (In a Box of 4)
£124.673
(exc. VAT)
£149.608
(inc. VAT)
Units | Per unit | Per Box* |
4 + | £124.673 | £498.692 |
*price indicative |
- RS Stock No.:
- 192-3575
- Mfr. Part No.:
- B32305A4302B040
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details

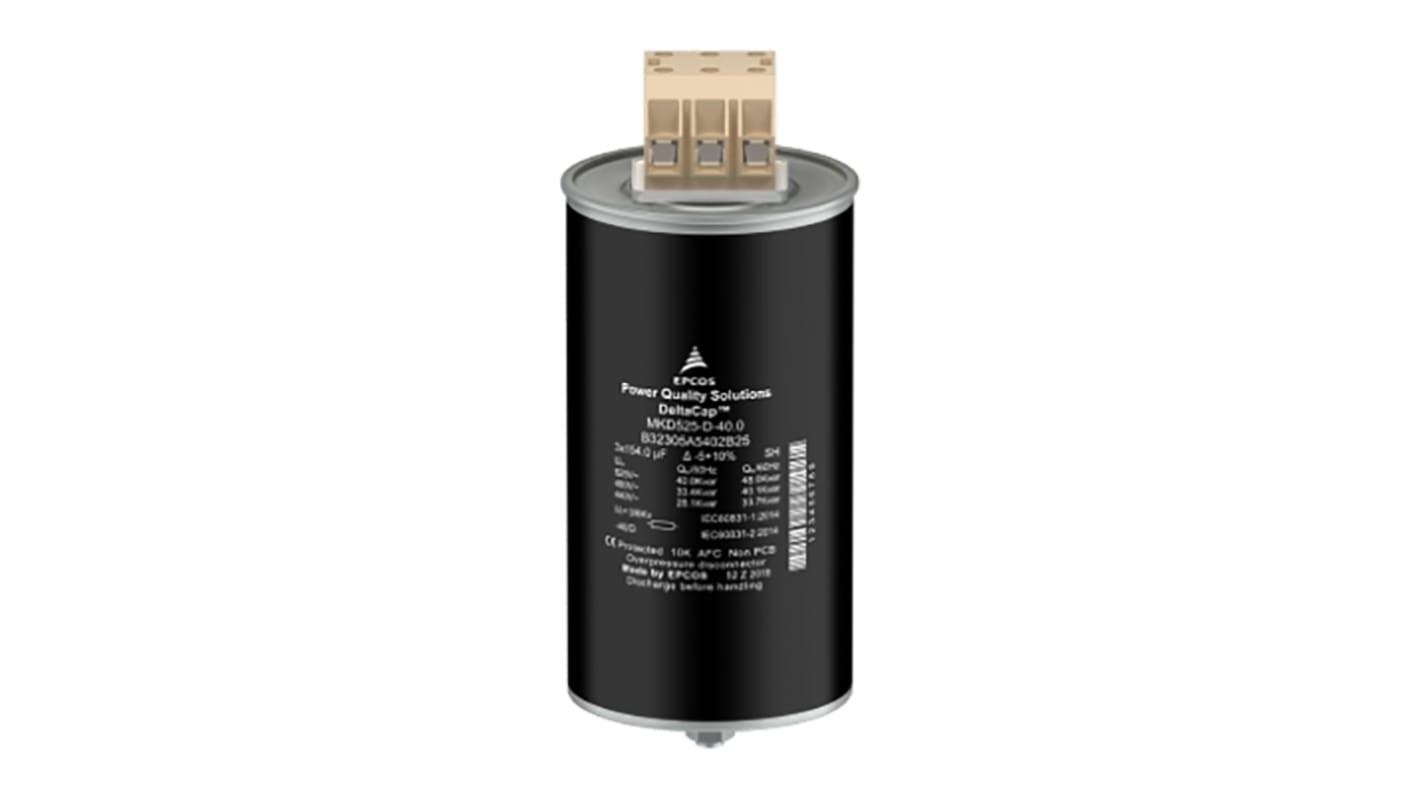

Based on the proven MKP technology with stacked windings, DeltaCap™ X Black Premium Capacitors are developed for low-voltage power factor correction (LV-PFC) applications, especially in industrial installations in harsh conditions. The series features a highly robust design and offers a selective output range from 20 kvar to 37 kvar. Their rated voltage ranges from 440 V to 850 V.
Three-phase, internal delta connection
Double safety system:
Overpressure disconnector,
Self-healing technology
Naturally air cooled (or forced air cooling)
Indoor mounting
Applications
For Power Factor Correction
Double safety system:
Overpressure disconnector,
Self-healing technology
Naturally air cooled (or forced air cooling)
Indoor mounting
Applications
For Power Factor Correction
Specifications
Attribute | Value |
---|---|
Minimum Operating Temperature | -40°C |
Series | MKD |
Voltage | 440V ac |
Maximum Operating Temperature | +65°C |
Mounting Type | Stud Mount |
Height | 275mm |
Number of Phases | 3 |
Tolerance Minus | -5% |
Width | 136mm |
kvar 60Hz | 36kvar |
kvar 50Hz | 30kvar |
Capacitance | 165µF |
Dielectric Material | Polypropylene |
Terminal Type | Screw |
Weight | 4.6kg |
Tolerance Plus | +5% |
