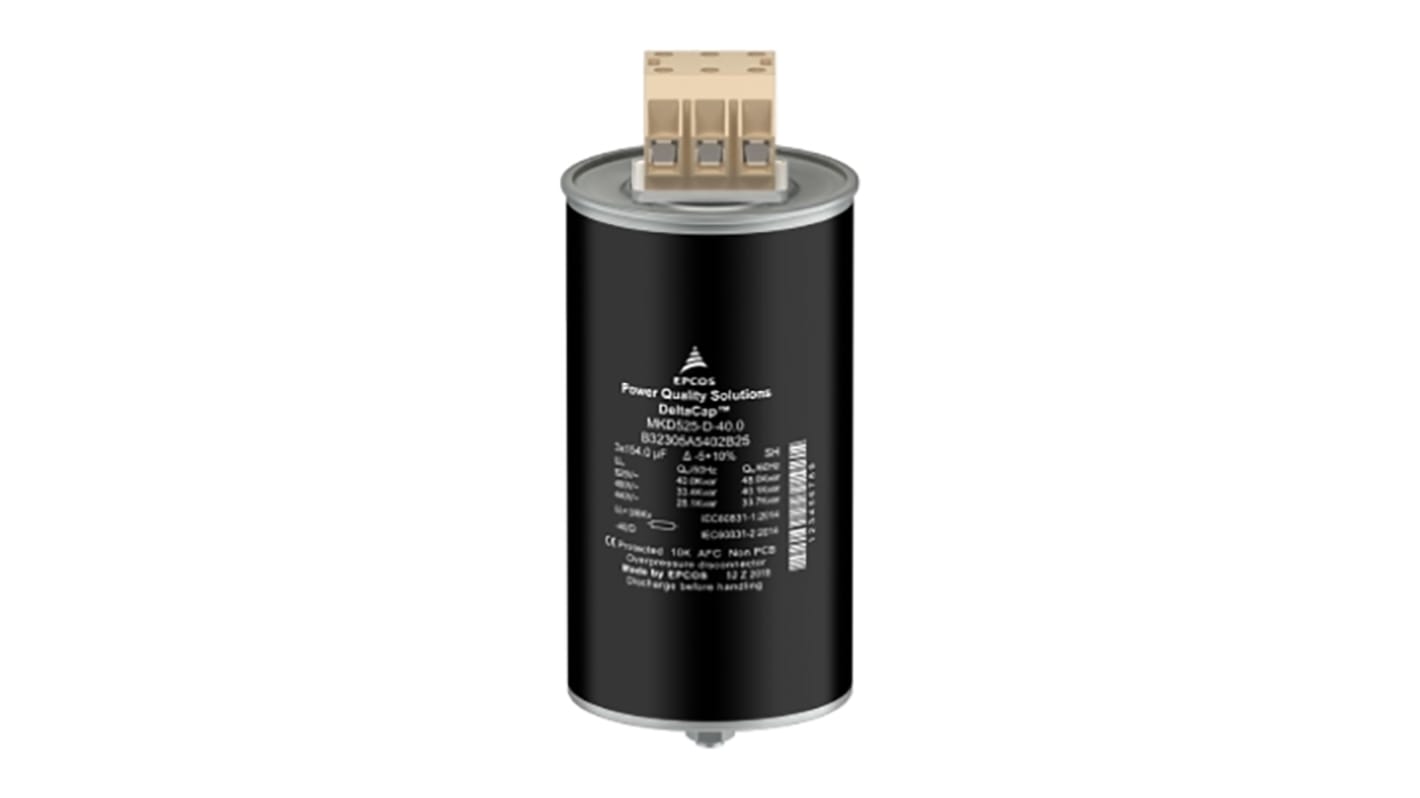

EPCOS Power Factor Correction Capacitor (PFC) 115μF 25kvar 30kvar 3
- RS Stock No.:
- 192-3571
- Mfr. Part No.:
- B32305A4252B080
- Brand:
- EPCOS
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Box of 4)
£111.09
(exc. VAT)
£133.31
(inc. VAT)
| Units | Per unit | Per Box* |
| 4 + | £111.09 | £444.36 |
| *price indicative | ||
- RS Stock No.:
- 192-3571
- Mfr. Part No.:
- B32305A4252B080
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details
Based on the proven MKP technology with stacked windings, DeltaCap™ X Black Premium Capacitors are developed for low-voltage power factor correction (LV-PFC) applications, especially in industrial installations in harsh conditions. The series features a highly robust design and offers a selective output range from 20 kvar to 37 kvar. Their rated voltage ranges from 440 V to 850 V.
Three-phase, internal delta connection
Double safety system:
Overpressure disconnector,
Self-healing technology
Naturally air cooled (or forced air cooling)
Indoor mounting
Applications
For Power Factor Correction
Double safety system:
Overpressure disconnector,
Self-healing technology
Naturally air cooled (or forced air cooling)
Indoor mounting
Applications
For Power Factor Correction
Specifications
Attribute | Value |
|---|---|
| Number of Phases | 3 |
| Dielectric Material | Polypropylene |
| Tolerance Minus | -5% |
| Height | 245mm |
| Mounting Type | Stud Mount |
| Series | MKD |
| Minimum Operating Temperature | -40°C |
| Voltage | 480V ac |
| Maximum Operating Temperature | +65°C |
| Capacitance | 115µF |
| kvar 50Hz | 25kvar |
| kvar 60Hz | 30kvar |
| Width | 136mm |
| Tolerance Plus | +5% |
| Terminal Type | Screw |
| Weight | 4.2kg |
