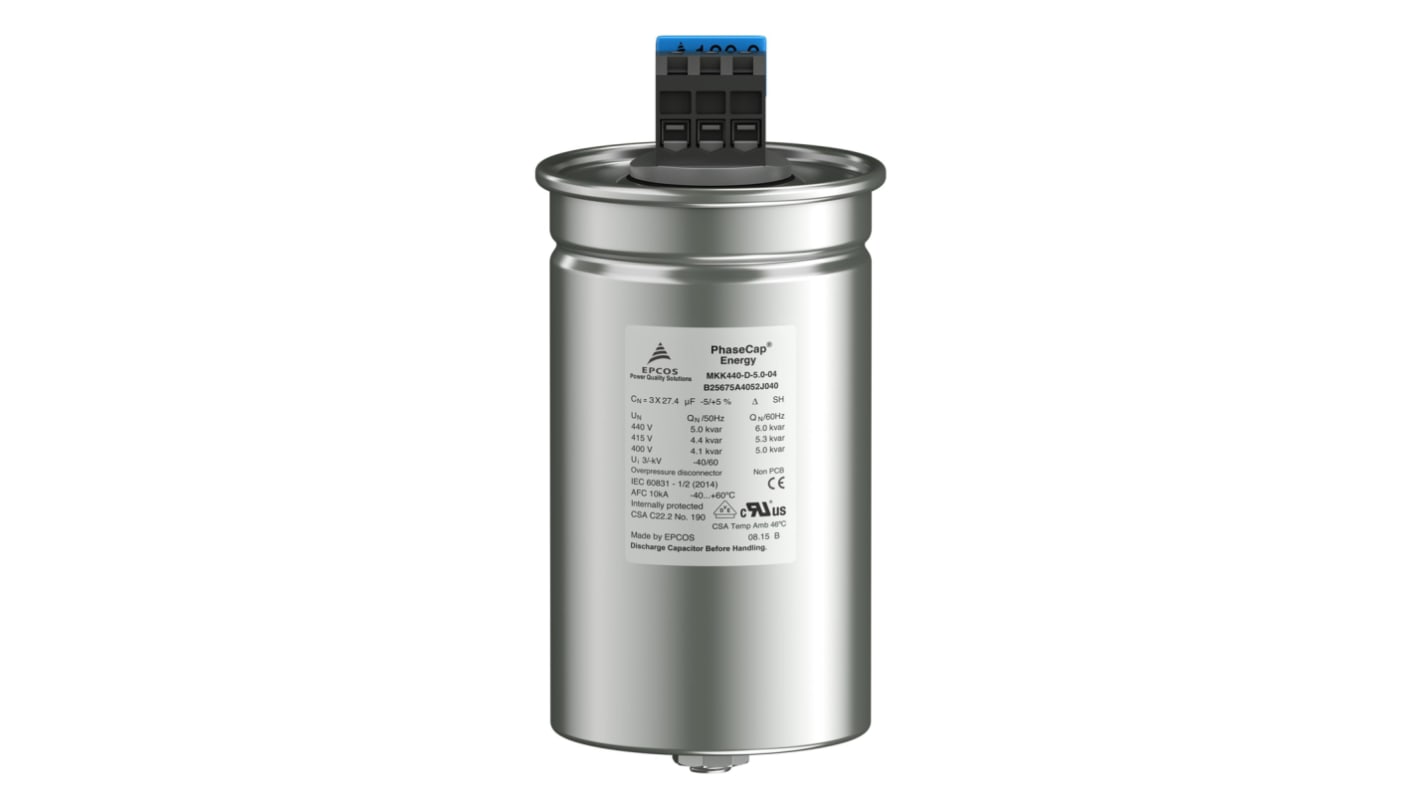

EPCOS Power Factor Correction Capacitor (PFC) 3 x 137μF 25kvar 30kvar 3
- RS Stock No.:
- 136-4922
- Mfr. Part No.:
- B25675C4252J040
- Brand:
- EPCOS
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 136-4922
- Mfr. Part No.:
- B25675C4252J040
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPCOS | |
Series | MKK | |
Minimum Operating Temperature | -40°C | |
Voltage | 440V ac | |
Maximum Operating Temperature | +60°C | |
Dielectric Material | Polypropylene | |
Capacitance | 3 x 137µF | |
kvar 50Hz | 25kvar | |
kvar 60Hz | 30kvar | |
Width | 116mm | |
Tolerance Minus | -5% | |
Mounting Type | Stud Mount | |
Height | 192mm | |
Number of Phases | 3 | |
Weight | 2.4kg | |
Tolerance Plus | +5% | |
Terminal Type | Screw | |
Select all | ||
---|---|---|
Brand EPCOS | ||
Series MKK | ||
Minimum Operating Temperature -40°C | ||
Voltage 440V ac | ||
Maximum Operating Temperature +60°C | ||
Dielectric Material Polypropylene | ||
Capacitance 3 x 137µF | ||
kvar 50Hz 25kvar | ||
kvar 60Hz 30kvar | ||
Width 116mm | ||
Tolerance Minus -5% | ||
Mounting Type Stud Mount | ||
Height 192mm | ||
Number of Phases 3 | ||
Weight 2.4kg | ||
Tolerance Plus +5% | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- IN
EPCOS B25673A Series Power Factor Correction Capacitors(PFC)
EPCOS Phasecap B25673A Series are Power Factor Correction (PFC) metallised polypropylene film capacitors. B25673A film capacitors are wave cut and feature concentric winding. Constructed in a cylindrical aluminium case with a threaded stud on the base, these PFC film capacitors have an overpressure disconnector and a ceramic discharge module. With optimised safety terminals, EPCOS PFC capacitors are suitable for indoor mounting and are naturally air cooled (forced air cooling).
Features & Benefits
Polypropylene film dielectric
Constructed from non-PCB, semi-dry biodegradable resin
B25673A film capacitors utilise self-healing technology
Compact size
Delta connected
3 phase
Constructed from non-PCB, semi-dry biodegradable resin
B25673A film capacitors utilise self-healing technology
Compact size
Delta connected
3 phase
Applications
These capacitors are suited to power factor correction applications.
