Vishay Power Factor Correction Capacitor 192.5 μF 50 kvar 60 kvar 3
- RS Stock No.:
- 548-703
- Mfr. Part No.:
- PhMKDg525.3.50,00-K
- Brand:
- Vishay
Subtotal (1 unit)*
£487.25
(exc. VAT)
£584.70
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £487.25 |
*price indicative
- RS Stock No.:
- 548-703
- Mfr. Part No.:
- PhMKDg525.3.50,00-K
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Power Factor Correction Capacitor | |
| Rated AC Voltage | 525V ac | |
| Dielectric | Polypropylene | |
| Pin Count | 3 | |
| Weight | 3.9kg | |
| Standards/Approvals | ESTA LVAC, IEC/EN 60831-1 + 2 (VDE 0560‑46+47), UL/ULC, CE | |
| Number of Phases | 3 | |
| Mount Type | Chassis Mount | |
| Height | 210mm | |
| Minimum Operating Temperature | -25°C | |
| Capacitance | 192.5μF | |
| kVAr 60Hz | 60kvar | |
| Tolerance | ±5% | |
| kVAr 50Hz | 50kvar | |
| Length | 172mm | |
| Maximum Operating Temperature | 55°C | |
| Width | 160mm | |
| Series | PhMKDg triangular, Dry type | |
| Terminal Type | M10 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Power Factor Correction Capacitor | ||
Rated AC Voltage 525V ac | ||
Dielectric Polypropylene | ||
Pin Count 3 | ||
Weight 3.9kg | ||
Standards/Approvals ESTA LVAC, IEC/EN 60831-1 + 2 (VDE 0560‑46+47), UL/ULC, CE | ||
Number of Phases 3 | ||
Mount Type Chassis Mount | ||
Height 210mm | ||
Minimum Operating Temperature -25°C | ||
Capacitance 192.5μF | ||
kVAr 60Hz 60kvar | ||
Tolerance ±5% | ||
kVAr 50Hz 50kvar | ||
Length 172mm | ||
Maximum Operating Temperature 55°C | ||
Width 160mm | ||
Series PhMKDg triangular, Dry type | ||
Terminal Type M10 | ||
- COO (Country of Origin):
- CZ

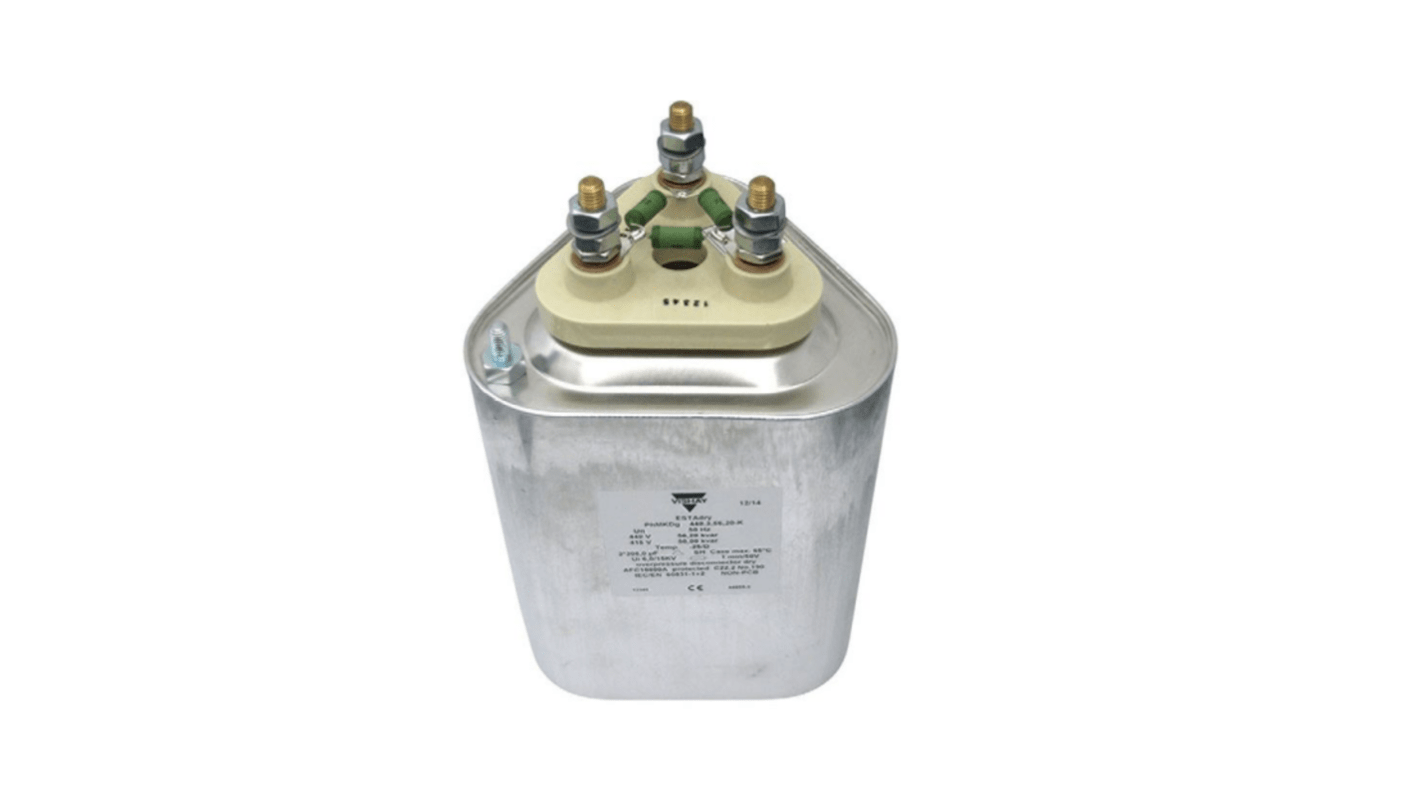

ESTAdry D-Type,triangular LVAC power cap
The Vishay Capacitor in a triangular aluminium case, augments Vishay ESTA broad line of reliable three-phase power capacitors. It has an aluminium tubular casings. It can be used for both controlled equipment and for stationary or mobile fixed compensation, e.g. for induction motor operated conveyor belts in the mining industry. The triangular case and corresponding triangular arrangement of the winding elements allows for simple connection in parallel of several units.
Self healing technology
Over pressure tear off fuse
UL and cUL approved
Excellent heat dissipation
