Schneider Electric Power Factor Correction Capacitor 12.5 kvar
- RS Stock No.:
- 358-109
- Mfr. Part No.:
- LVR05125B48T
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£434.27
(exc. VAT)
£521.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £434.27 |
*price indicative
- RS Stock No.:
- 358-109
- Mfr. Part No.:
- LVR05125B48T
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Factor Correction Capacitor | |
| Rated AC Voltage | 480 V ac | |
| Weight | 13kg | |
| Standards/Approvals | RoHS, REACH, IEC 60068 | |
| kVAr 60Hz | 12.5kvar | |
| Tolerance | -5 5 % | |
| Width | 240 mm | |
| Height | 220mm | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | 0°C | |
| Series | SAH | |
| Terminal Type | Pad Terminal | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Factor Correction Capacitor | ||
Rated AC Voltage 480 V ac | ||
Weight 13kg | ||
Standards/Approvals RoHS, REACH, IEC 60068 | ||
kVAr 60Hz 12.5kvar | ||
Tolerance -5 5 % | ||
Width 240 mm | ||
Height 220mm | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature 0°C | ||
Series SAH | ||
Terminal Type Pad Terminal | ||
- COO (Country of Origin):
- CZ

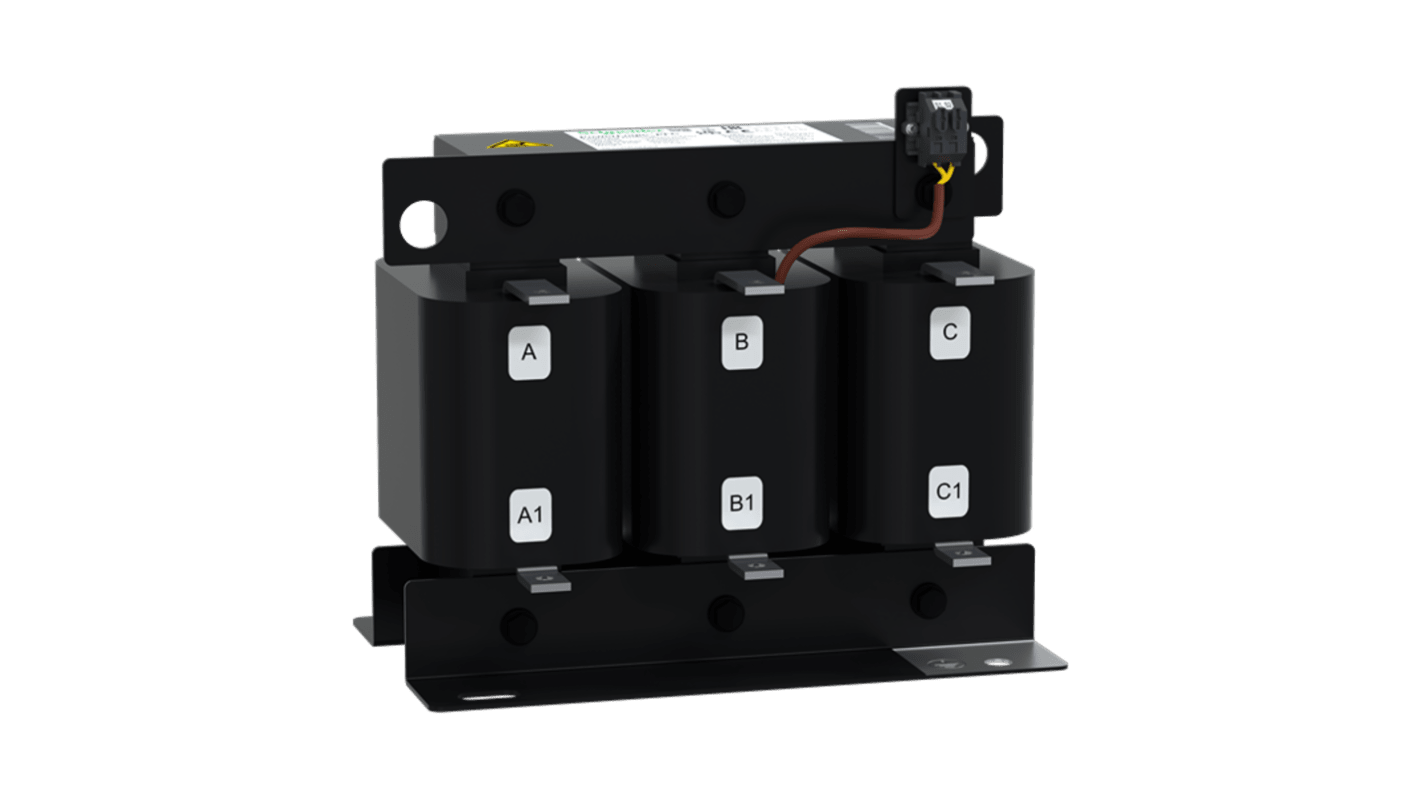

The Schneider Electric Anti-Harmonic PowerLogic PFC detuned reactor is rated at 12.5 kVAR and operates at 252 Hz (4.2) with a 5.7% detuning. It is designed for 60 Hz, 480V systems, providing harmonic filtering and improving power factor correction (PFC) while protecting equipment from voltage distortions caused by harmonics in electrical systems.
EU RoHS Directive
Mercury free
