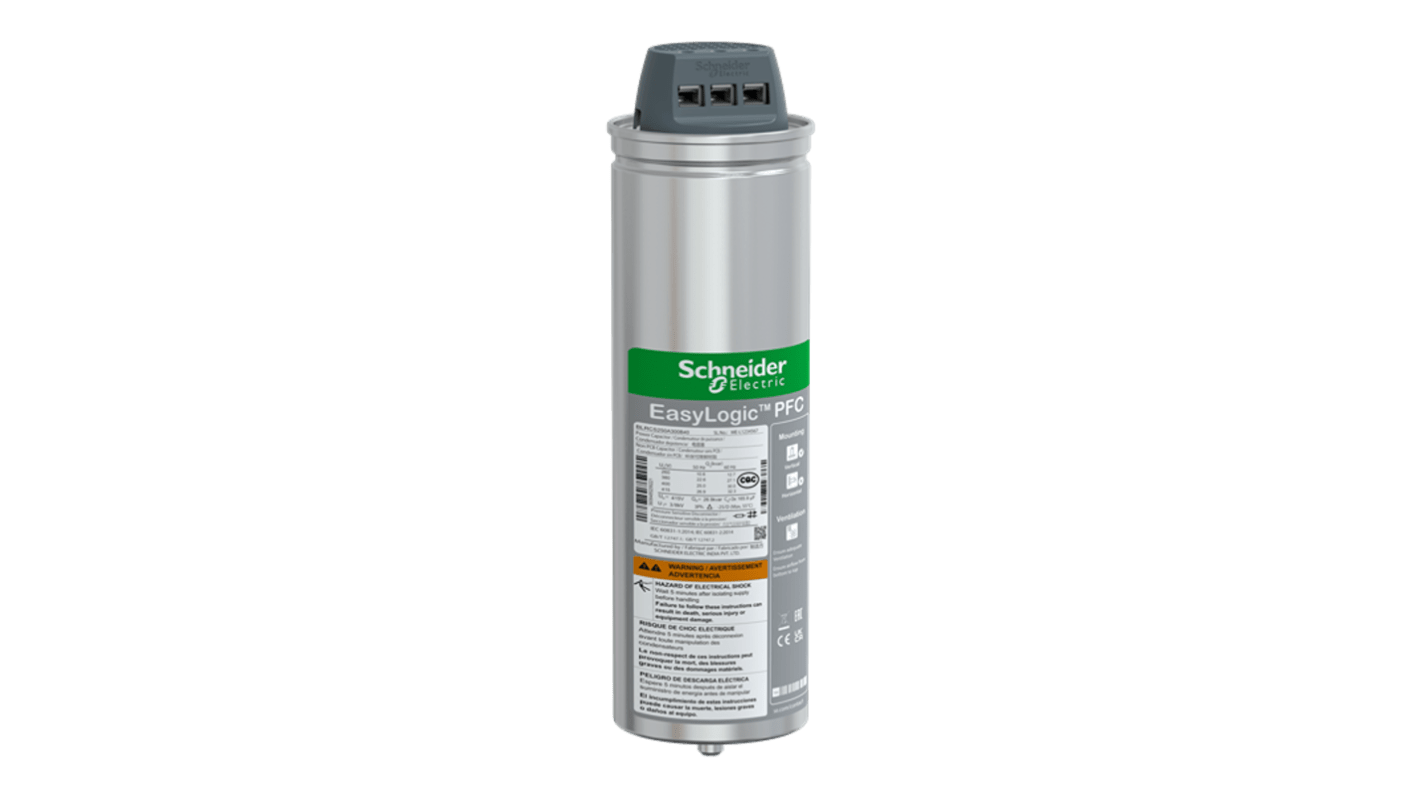

Schneider Electric Power Factor Correction Capacitor 25 kvar 30 kvar
- RS Stock No.:
- 346-827
- Mfr. Part No.:
- BLRCS250A300B40
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£585.46
(exc. VAT)
£702.55
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £585.46 |
*price indicative
- RS Stock No.:
- 346-827
- Mfr. Part No.:
- BLRCS250A300B40
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Factor Correction Capacitor | |
| Rated AC Voltage | 415V ac | |
| Standards/Approvals | CEI 60831-2, CEI 60831-1 | |
| Weight | 2.3kg | |
| Diameter | 90mm | |
| Maximum Operating Temperature | 55°C | |
| Series | VarPlusCAN | |
| Minimum Operating Temperature | -25°C | |
| Height | 308mm | |
| kVAr 50Hz | 25kvar | |
| Tolerance | -5 to 10 % | |
| kVAr 60Hz | 30kvar | |
| Terminal Type | Clamp Terminal | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Factor Correction Capacitor | ||
Rated AC Voltage 415V ac | ||
Standards/Approvals CEI 60831-2, CEI 60831-1 | ||
Weight 2.3kg | ||
Diameter 90mm | ||
Maximum Operating Temperature 55°C | ||
Series VarPlusCAN | ||
Minimum Operating Temperature -25°C | ||
Height 308mm | ||
kVAr 50Hz 25kvar | ||
Tolerance -5 to 10 % | ||
kVAr 60Hz 30kvar | ||
Terminal Type Clamp Terminal | ||
- COO (Country of Origin):
- IN
The Schneider Electric Heavy duty capacitors are designed to work in slightly polluted netwroks with Detuned reactors. These capacitors are used for standard operating conditions, and when no significant non linear loads are present. These capacitor are the right choice to maximize the savings in an electrical system which is stable.
RoHS compliant
Mercury free
IP20 protection rated
Toxic heavy metal free
