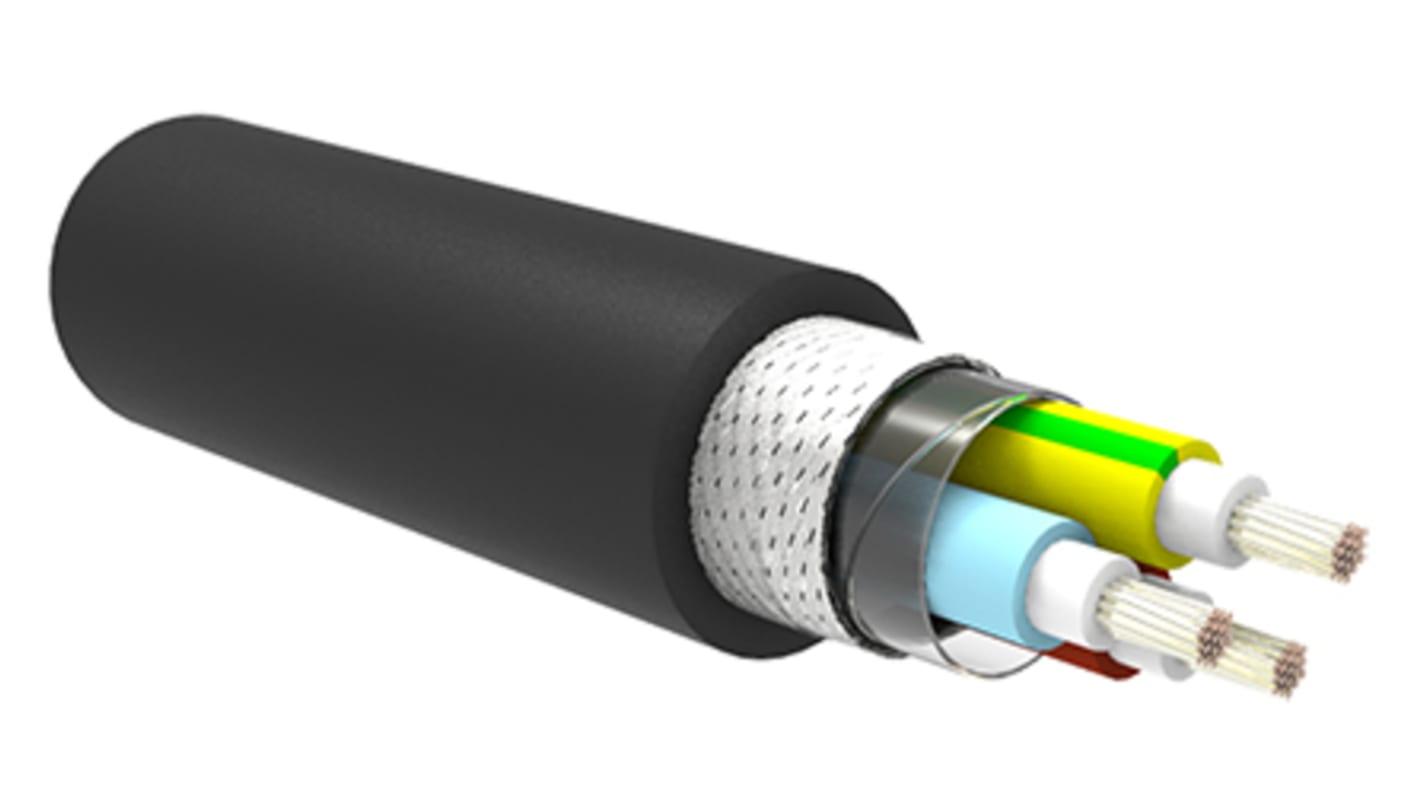

TE Connectivity C-Lite 2.5 mm² 3 Core Power Cable, Black Low Smoke Zero Halogen (LSZH), 50m
- RS Stock No.:
- 914-4235
- Mfr. Part No.:
- CL105-3GX2.50-SO-0(50)
- Brand:
- TE Connectivity
Subtotal (1 reel of 50 metres)*
£690.49
(exc. VAT)
£828.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £690.49 | £13.81 |
*price indicative
- RS Stock No.:
- 914-4235
- Mfr. Part No.:
- CL105-3GX2.50-SO-0(50)
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Cross Sectional Area | 2.5 mm² | |
| Number of Cores | 3 | |
| Sheath Colour | Black | |
| Length | 50m | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Outer Diameter | 8.2mm | |
| Voltage Rating | 600 V | |
| American Wire Gauge | 13 AWG | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +120°C | |
| Series | C-Lite | |
| Core Strands | 37/0.29 mm | |
| Insulation Material | LSZH | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -40°C | |
| Conductor Resistance | 8.21 Ω/km | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Cross Sectional Area 2.5 mm² | ||
Number of Cores 3 | ||
Sheath Colour Black | ||
Length 50m | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Outer Diameter 8.2mm | ||
Voltage Rating 600 V | ||
American Wire Gauge 13 AWG | ||
Conductor Material Copper | ||
Maximum Operating Temperature +120°C | ||
Series C-Lite | ||
Core Strands 37/0.29 mm | ||
Insulation Material LSZH | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -40°C | ||
Conductor Resistance 8.21 Ω/km | ||
TE Connectivity Screened C-Lite Marine Cable
TE Connectivity screened C-Lite marine cable use advanced thin-wall insulation and jacket technology to reduce the size and weight of cables, without reducing the electrical or mechanical properties. C-Lite cables offer excellent resistance to oils, solvents, fuels, petroleum and mud for use in demanding marine environments such as oil rigs.
Features and Benefits
Excellent substance resistance;Overall braid screen;Zerohal jacket;Lightweight;Stranded conductors for flexibility;Metre marked
Marine Cable
