RS PRO 2.5 mm² 3 Core Power Cable, Black PVC, 50m

View all Power Cable

Subtotal (1 reel of 50 metres)*

£227.35

(exc. VAT)

£272.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 53 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 11 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£227.35£4.547

*price indicative

RS Stock No.:
196-4715
Distrelec Article No.:
303-94-966
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

2.5 mm²

Number of Cores

3

Sheath Colour

Black

Length

50m

Armoured

Yes

Outer Diameter

12.6mm

CPR Certification

Eca

Sheath Material

PVC

Voltage Rating

600/1000 V

Conductor Strand Type

Stranded

Conductor Material

Annealed Copper

Maximum Operating Temperature

+90°C

Minimum Operating Temperature

-15°C

Core Strands

7/0.67 mm

Standards Met

BASEC

COO (Country of Origin):
GB

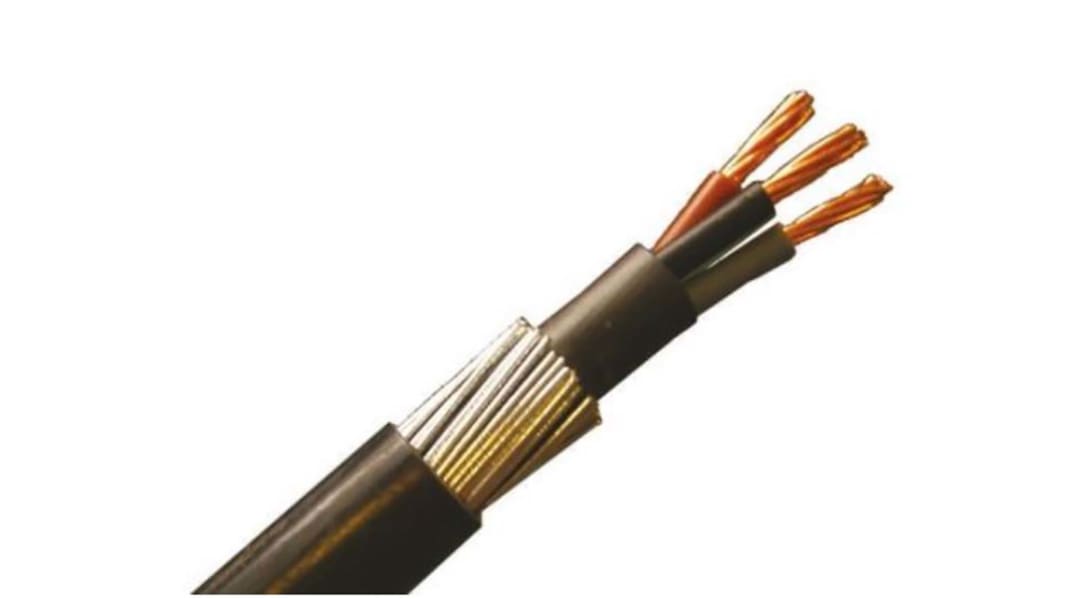

RS PRO 3 Core Steel Wire Armoured Cable, XLPE Insulated, PVC Sheathed


From our trusted and reliable own brand RS PRO, this range of steel wire armoured (SWA) cables are perfect for heavy duty applications that require the most durable wiring, providing excellent insulation and protection both indoors and outdoors as well as underground. This range of RS PRO SWA cables feature plain annealed copper conductors with XLPE thermosetting insulation, offering enhanced reliability and performance in the toughest conditions. The galvanised steel wire armoured construction of the cables also benefits from PVC bedding and sheathing, ensuring the cable is protected against damage from pinching or physical impact.

Features and Benefits


  • Galvanised steel wire armour for optimum protection against damage and impact

  • Thermosetting XLPE insulation offering excellent dielectric strength and corrosion resistance at high temperatures

  • PVC bedding and sheathing to protect the cable in a wide range of environments

  • Wide operating temperature range providing flexibility

  • Available in a wide range of sizes and cores

  • Suitable for use in underground heavy duty applications both indoors and outdoors

Applications


Steel wire armoured cables (SWA) allow a continuous flow of electricity to be carried in the harshest of environments, including underground making them highly versatile and reliable. As a result, steel wired armour cables are perfect for heavy duty applications where cables may be exposed to physical damage or impact as they feature a robust construction with a galvanised steel wire armour to protect the cores, offering exceptional protection and durability. SAW cables are commonly used to supply mains electricity indoors and outdoors in areas such as:
  • Underground systems

  • Power Networks

  • Construction

  • Railways

How is this cable installed?


Steel wire armoured cables are designed to be installed in air, clipped to surface, on cable tray/ ladder work, embedded in concrete and buried direct or in ducting underground. SWA is a versatile choice for industrial and heavy duty applications, ensuring the electricity supply remains reliable and protected in a wide range of environments.

Can this be installed underground?


Yes, this SWA cable from RS PRO is suitable for underground applications with free draining soil. However, care should be taken to prevent the cable being submerged in liquid.
