RS PRO 2.5 mm² 5 Core Power Cable, Black PVC, 50m
- RS Stock No.:
- 196-4697
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£343.79
(exc. VAT)
£412.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £343.79 | £6.876 |
*price indicative
- RS Stock No.:
- 196-4697
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 2.5 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | Black | |
| Length | 50m | |
| Armoured | Yes | |
| CPR Certification | Eca | |
| Outer Diameter | 14.5mm | |
| Sheath Material | PVC | |
| Voltage Rating | 600/1000 V | |
| American Wire Gauge | 13 AWG | |
| Conductor Material | Annealed Copper | |
| Core Strands | 7/0.67 mm | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -15°C | |
| Standards Met | BASEC | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 2.5 mm² | ||
Number of Cores 5 | ||
Sheath Colour Black | ||
Length 50m | ||
Armoured Yes | ||
CPR Certification Eca | ||
Outer Diameter 14.5mm | ||
Sheath Material PVC | ||
Voltage Rating 600/1000 V | ||
American Wire Gauge 13 AWG | ||
Conductor Material Annealed Copper | ||
Core Strands 7/0.67 mm | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -15°C | ||
Standards Met BASEC | ||
- COO (Country of Origin):
- GB

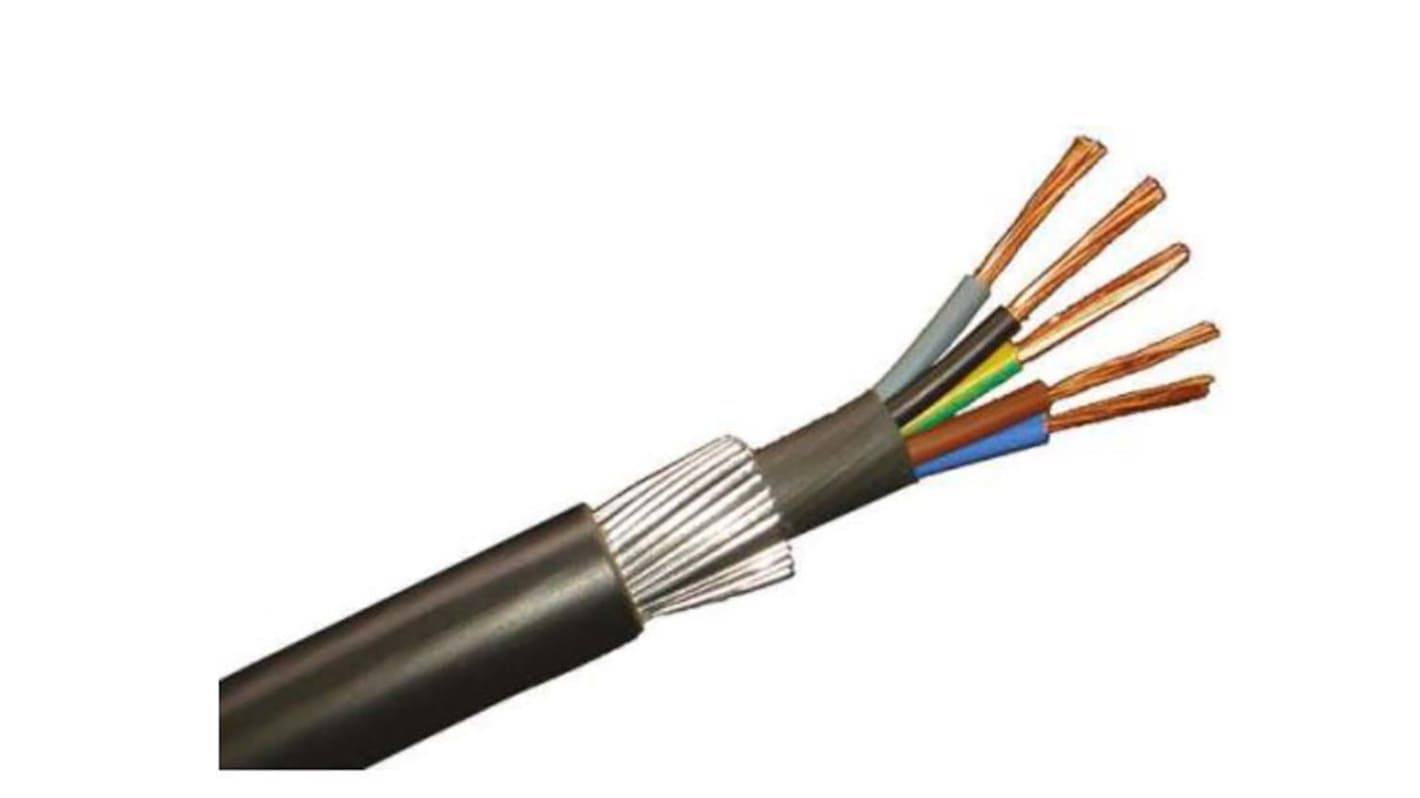

RS PRO 5-Core Screened Industrial BASEC Cable, Black, 2.5 mm², 50 m Reel
This heavy-duty, durable 5-core cable from RS PRO has been created to work in industrial environments and workspaces. The annealed copper cores allow a high degree of flexibility, while the polyvinyl chloride (PVC) sheathe protects it from chemical, heat and mechanical damage.
This cable's five colour-coded cores are screened with steel wire to prevents electromagnetic interference and keep the cable working at all times. The screened steel has been galvanised, which reduces the chances of the wire rusting and provides long-lasting protection from corrosion.
The hardness and durability of this cable make it suitable for both underground and outdoor cabling. It's most commonly used for industrial wiring and mains distribution.
This cable's five colour-coded cores are screened with steel wire to prevents electromagnetic interference and keep the cable working at all times. The screened steel has been galvanised, which reduces the chances of the wire rusting and provides long-lasting protection from corrosion.
The hardness and durability of this cable make it suitable for both underground and outdoor cabling. It's most commonly used for industrial wiring and mains distribution.
Features and Benefits
• Annealed copper conductor material
• Core strand size of 0.67 mm
• Cross-sectional area of 2.5 mm²
• Length of 50 m
• Operating temperature range of -15°C to +90°C
• Five cores
• Outer diameter of 14.5 mm
• Galvanised steel braid screen type
• Screened
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Shielded
• Meets British Approvals Service for Cables (BASEC) standards
• Voltage rating of 600 V, 1000 V
• Core strand size of 0.67 mm
• Cross-sectional area of 2.5 mm²
• Length of 50 m
• Operating temperature range of -15°C to +90°C
• Five cores
• Outer diameter of 14.5 mm
• Galvanised steel braid screen type
• Screened
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Shielded
• Meets British Approvals Service for Cables (BASEC) standards
• Voltage rating of 600 V, 1000 V
