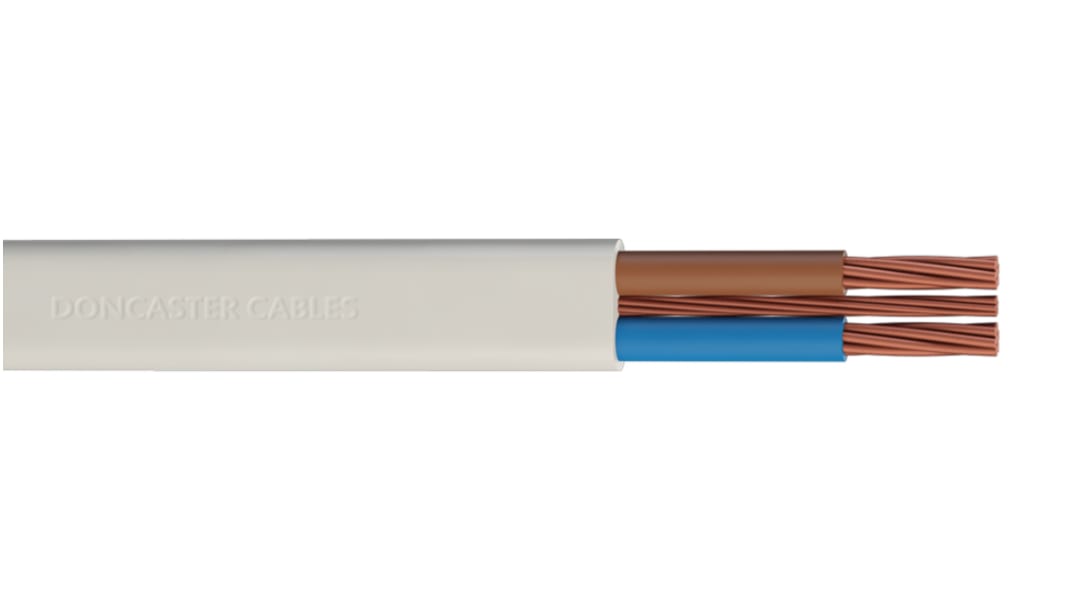

RS PRO 2+E Core Mains Power Cable, 1.5 mm², 50m, White Thermoplastic Sheath, Twin & Earth, 300/500 V

RS Stock No.:: 239-8432
Brand:: RS PRO

RS PRO 2+E Core Mains Power Cable, 1.5 mm², 50m, White Thermoplastic Sheath, Twin & Earth, 300/500 V

15 In stock - FREE next working day delivery available

2 available from Europe for delivery within 2 working day(s).

Price 1 Reel of 50 Metre(s)

£83.20

(exc. VAT)

£99.84

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 +	£83.20	£1.664

*price indicative

RS Stock No.:: 239-8432
Brand:: RS PRO

RS PRO Datasheet

RS PRO Twin & Earth Cables

Introducing a range of twin & earth cables from RS PRO. These cables are the perfect blend of high quality and cost-effectiveness. These flat cables feature a multicore construction consisting of plain annealed copper live, neutral and bare earth wires sealed in white thermoplastic. They are ideally suited where smoke and acid gas emission would pose a hazard in dry or damp locations.

Why would you choose Twin & Earth Cable?

These cables are intended for fixed installation, suitable in a wide range of indoor applications such as, lighting or power. They feature low smoke zero halogen (LSZH) sheaths which reduces smoke and fume emissions in the event of a fire. Our cables can be easily installed in cable trunking and ducting for a clean and professional install.

Features and Benefits

High-performance multicore

Unscreened making them highly cost effective and efficient

Type: 6242B

Cable Shape: Flat

Sheath Material: Thermoplastic

Sheath Colour: White

Core Colour: Blue and Brown

Conductor Material: Plain annealed copper

Cable End: Bare

Fire Behaviour: LSZH

Electrical Specifications

Voltage rating: 300 / 500 V

Conductor Material: Plain Annealed Copper

Insulation Material: XLPE

Temperature range: -15°C to 90°C

BASEC Approved

RS PRO Twin & Earth Cable Variants – Available Separately

100 m, 1 mm², RS Stock no: 239-8431

50 m, 1.5 mm², RS Stock no: 239-8432

50 m, 2.5 mm², RS Stock no: 239-8433

50 m, 4 mm², RS Stock no: 239-8434

50 m, 6 mm², RS Stock no: 239-8435

50 m, 10 mm², RS Stock no: 239-8436

50 m, 16 mm², RS Stock no: 239-8437

What is BASEC Approval?

BASEC is an independent accredited certification body for the cable industry worldwide which provides an approvals service for cables. BASEC conducts rigorous, high-quality testing across a range of sectors that supply and install cable. These tests meet all the relevant standards and regulations ensuring the cables supplied are safe to use and of the highest quality.

Compliance/ Certification

CE/ CSA/ UL94-V0

Applications

Ideal for use in light industrial and domestic wiring applications.

Why would you choose RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Not intended to be laid underground

Standards

BS 7211

Attribute	Value
Cross Sectional Area	1.5 mm²
Number of Cores	2+E
Sheath Colour	White
Length	50m
Cable Type	Twin & Earth
CPR Certification	Dca
Sheath Material	Thermoplastic
Voltage Rating	300/500 V
Insulation Material	XLPE
Fire Behaviour	LSZH
Cable Shape	Flat
Conductor Material	Annealed Copper
