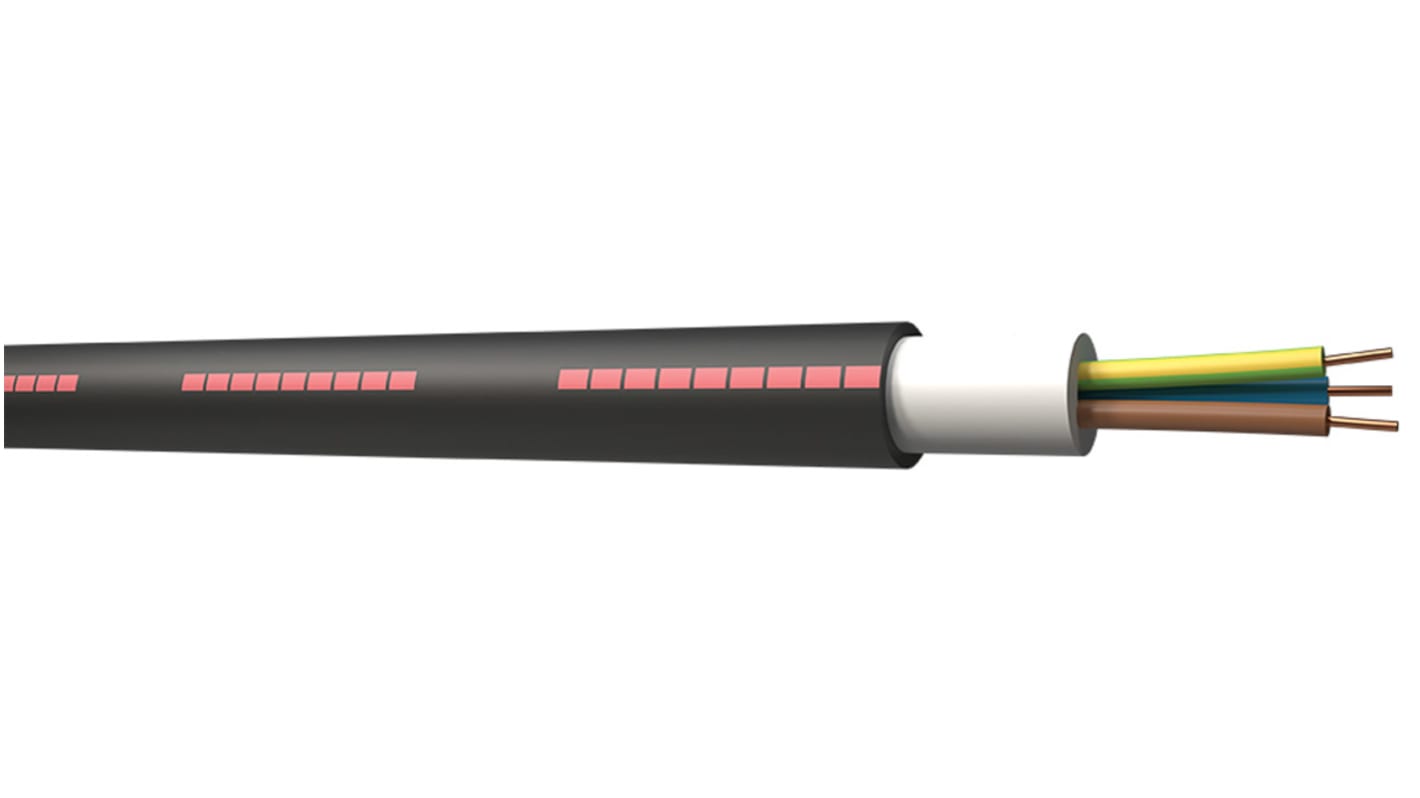

RS PRO U1000RO2V 6 mm² 3 Core Power Cable, Black PVC, 100m
- RS Stock No.:
- 201-0585
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£665.24
(exc. VAT)
£798.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £665.24 | £6.652 |
*price indicative
- RS Stock No.:
- 201-0585
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 6 mm² | |
Number of Cores | 3 | |
Sheath Colour | Black | |
Length | 100m | |
Armoured | No | |
Cable Type | U1000RO2V | |
Current Rating | 32 A | |
CPR Certification | Eca | |
Sheath Material | PVC | |
Outer Diameter | 13.5mm | |
Voltage Rating | 0.6/1 kV | |
Conductor Strand Type | Stranded | |
Series | U1000RO2V | |
Number of Strands | 1 | |
American Wire Gauge | 9 AWG | |
Conductor Material | Bare Copper | |
Maximum Operating Temperature | +70°C | |
Fire Behaviour | Flame Retardant | |
Insulation Material | XLPE | |
Minimum Operating Temperature | -20°C | |
Cable Shape | Multi-Conductor | |
Standards Met | Eca EN50575 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 6 mm² | ||
Number of Cores 3 | ||
Sheath Colour Black | ||
Length 100m | ||
Armoured No | ||
Cable Type U1000RO2V | ||
Current Rating 32 A | ||
CPR Certification Eca | ||
Sheath Material PVC | ||
Outer Diameter 13.5mm | ||
Voltage Rating 0.6/1 kV | ||
Conductor Strand Type Stranded | ||
Series U1000RO2V | ||
Number of Strands 1 | ||
American Wire Gauge 9 AWG | ||
Conductor Material Bare Copper | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Insulation Material XLPE | ||
Minimum Operating Temperature -20°C | ||
Cable Shape Multi-Conductor | ||
Standards Met Eca EN50575 | ||
- COO (Country of Origin):
- IT
RS PRO Multicore Cable
Introducing the range of RS PRO multicore cables, ideal for use across a wide variety of industrial sites and upright column applications, with the black outer sheath being suitable for outdoor use. The flexible cable has a multicore that can be used for reliable cable connections in a neat and well-organised layout. By using this RS PRO high quality range of multicore cables, tripping hazards can be drastically reduced while improving the overall appearance of electrical equipment, especially in areas where there is little space, or the cable installation is visible to individuals.
Features and Benefits:
- This RS PRO multicore cable has 3 6 mm² core strands which is ideal for using on industrial sites and upright column installations with the black outer sheath offering protection when the cable is being used outdoors
- It is a flexible cable with a durable PVC protective sheath that is UV resistant and XLPE wrapped stranded bare copper conductors
- The cable offers good insulation due to the insulation material and installation is easy and efficient thanks to the coloured cores and layout of the cable
- Operating temperature: -20 °C to +70 °C
- Rated voltage: 600 / 1000 V
Applications:
Multicore cables are electrical cables that have more cores than standard power or coaxial cables and are available in various lengths and cores, dependent on the applications they are being used for. They are ideal for using when there is little space or for organising cable installations that require multiple cabling connections, especially within industrial or entertainment applications. Multicore cables are found in many different environments, for example:
- Entertainment and audio industry
- Machines and factory control equipment
- Large control pads
- DIN-Rail terminals
- Conveyor belts
- Data and networking
- Security and safety
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Note:
Please be aware, although these cables are electrical, they are not to be regarded as power cables, or cables for the direct connection of equipment to mains power supplies.
