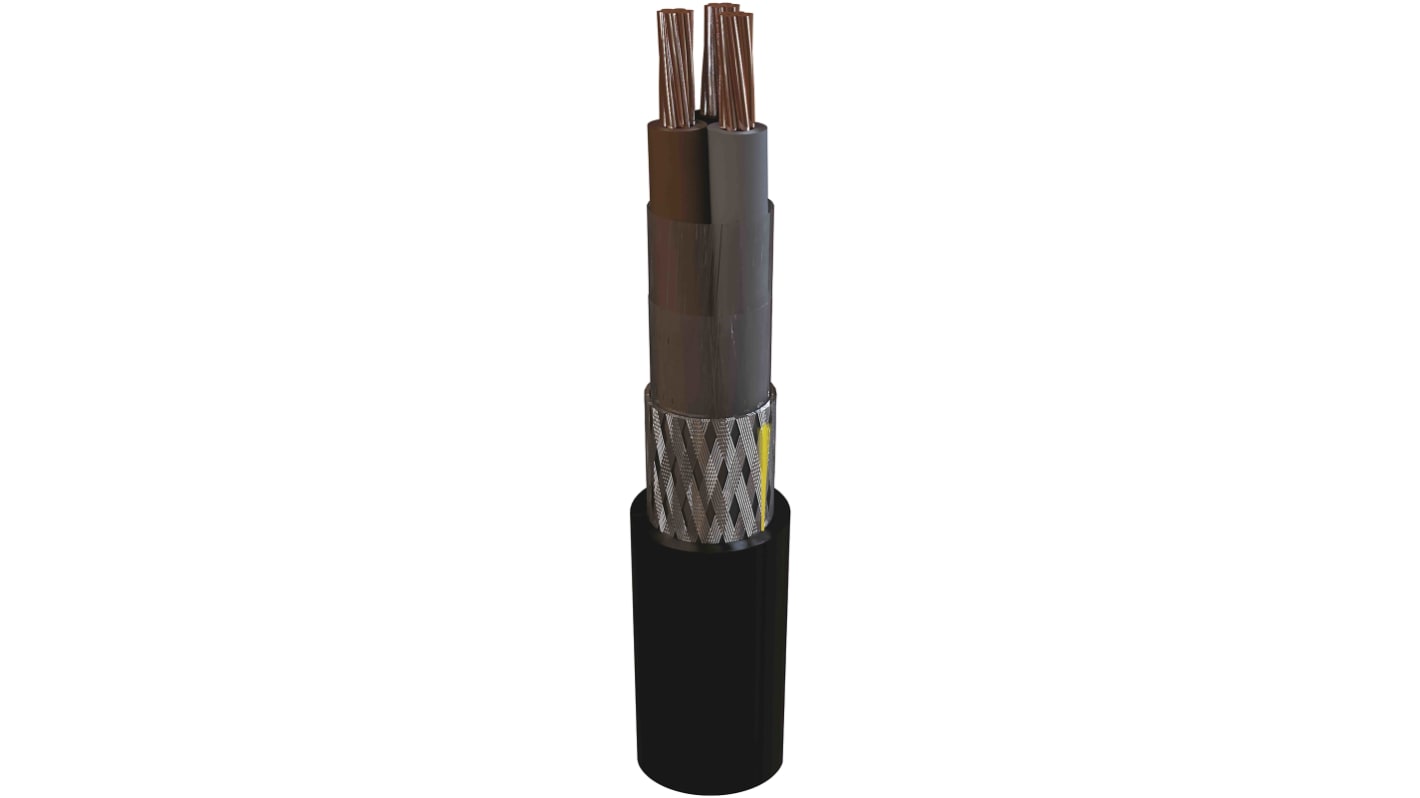

AXINDUS MarineLine YZp 0 Marine 1.5 mm² 3 Core Power Cable, Black LSZH, 100m
- RS Stock No.:
- 201-0608
- Mfr. Part No.:
- RS16112
- Brand:
- AXINDUS
Subtotal (1 reel of 100 metres)*
£998.19
(exc. VAT)
£1,197.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £998.19 | £9.982 |
*price indicative
- RS Stock No.:
- 201-0608
- Mfr. Part No.:
- RS16112
- Brand:
- AXINDUS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | AXINDUS | |
Cross Sectional Area | 1.5 mm² | |
Number of Cores | 3 | |
Sheath Colour | Black | |
Length | 100m | |
Armoured | Yes | |
Cable Type | Marine | |
Current Rating | 10 A | |
Sheath Material | LSZH | |
Outer Diameter | 9.1mm | |
Voltage Rating | 0.6/1 kV | |
Conductor Strand Type | CL2 | |
Minimum Operating Temperature | -20°C | |
Series | MarineLine YZp 0 | |
Insulation Material | XLPE | |
Fire Behaviour | Flame Retardant, Halogen Free | |
Conductor Material | Copper | |
Maximum Operating Temperature | +70°C | |
Standards Met | IEC 60092-350/-360/-353 | |
Cable Shape | Multi-Conductor | |
American Wire Gauge | 15 AWG | |
Select all | ||
---|---|---|
Brand AXINDUS | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 3 | ||
Sheath Colour Black | ||
Length 100m | ||
Armoured Yes | ||
Cable Type Marine | ||
Current Rating 10 A | ||
Sheath Material LSZH | ||
Outer Diameter 9.1mm | ||
Voltage Rating 0.6/1 kV | ||
Conductor Strand Type CL2 | ||
Minimum Operating Temperature -20°C | ||
Series MarineLine YZp 0 | ||
Insulation Material XLPE | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Conductor Material Copper | ||
Maximum Operating Temperature +70°C | ||
Standards Met IEC 60092-350/-360/-353 | ||
Cable Shape Multi-Conductor | ||
American Wire Gauge 15 AWG | ||
- COO (Country of Origin):
- NL
The CAE Multimedia Connect lightweight, armoured, reduced diameter low voltage power cables for power and lighting applications in all ship areas.
Class 2 conductors
Lightweight, reduced diameter
Halogen free and low smoke, flame retardant
Tinned copper wire braid armouring
Excellent abrasion resistance
Lightweight, reduced diameter
Halogen free and low smoke, flame retardant
Tinned copper wire braid armouring
Excellent abrasion resistance
