RS PRO Armoured 10 mm² 4 Core Power Cable, Black PVC, 50m
- RS Stock No.:
- 196-4706
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£891.59
(exc. VAT)
£1,069.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £891.59 | £17.832 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50
£688.49
(exc. VAT)
£826.19
(inc. VAT)
- RS Stock No.:
- 196-4706
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 10 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | Black | |
| Length | 50m | |
| Armoured | Yes | |
| Cable Type | Armoured | |
| Outer Diameter | 20.5mm | |
| CPR Certification | Eca | |
| Sheath Material | PVC | |
| Voltage Rating | 600/1000 V | |
| Conductor Strand Type | Stranded | |
| American Wire Gauge | 7 AWG | |
| Uncoiled Length | 50m | |
| Number of Strands | 7 | |
| Core Strands | 7/1.35 mm | |
| Maximum Operating Temperature | +90°C | |
| Standards Met | BASEC | |
| Size of Strands | 1.35mm | |
| Insulation Material | Cross Linked | |
| Conductor Material | Annealed Copper | |
| Minimum Operating Temperature | -15°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 10 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black | ||
Length 50m | ||
Armoured Yes | ||
Cable Type Armoured | ||
Outer Diameter 20.5mm | ||
CPR Certification Eca | ||
Sheath Material PVC | ||
Voltage Rating 600/1000 V | ||
Conductor Strand Type Stranded | ||
American Wire Gauge 7 AWG | ||
Uncoiled Length 50m | ||
Number of Strands 7 | ||
Core Strands 7/1.35 mm | ||
Maximum Operating Temperature +90°C | ||
Standards Met BASEC | ||
Size of Strands 1.35mm | ||
Insulation Material Cross Linked | ||
Conductor Material Annealed Copper | ||
Minimum Operating Temperature -15°C | ||
- COO (Country of Origin):
- GB

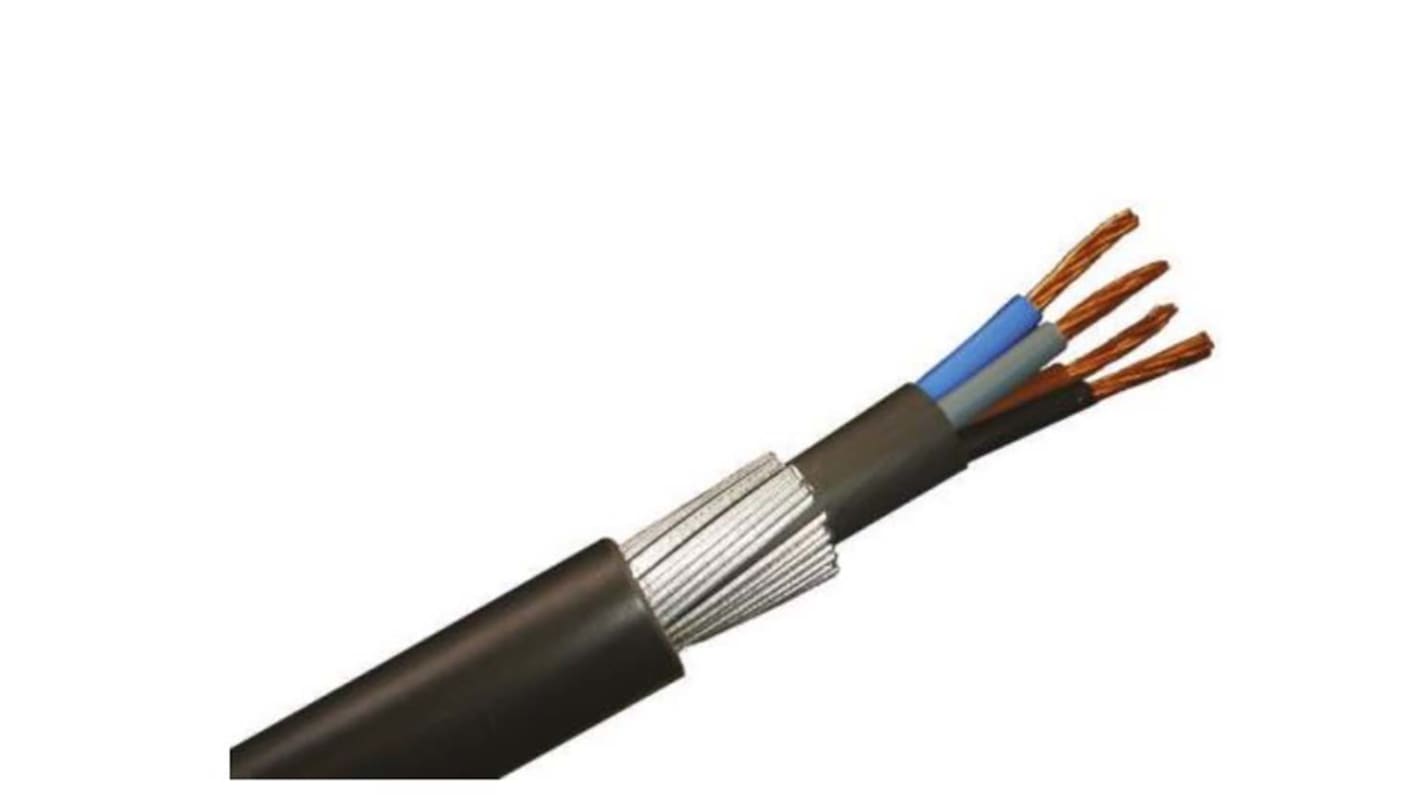

RS PRO 4 Core Armoured Power Cable 600/100V
A Steel Wire Armoured (SWA) power cable manufactured to BS 5467 ideally suited for use with industrial wirings and mains distribution. The 4 core cable features plain annealed Copper conductors for excellent conductivity and is manufactured with galvanised Steel wire armour for improved protection from mechanical stresses greatly improving the tensile strength of the power cable.
Featuring Cross-linked Polyethylene (XPLE) insulation providing enhanced thermal and mechanical properties with increased chemical resistance, a layer of PVC bedding and a waterproof PVC sheath.
A hardwearing armoured power cable suitable for a wide range of applications and environments including direct burial, embedding in concrete and underground ducting.
Features and Benefits
4 core power cable
Galvanised Steel wire braid
Rated at 600/1000V
10mm stranded plain annealed Copper
XPLE insulation
PVC bedding
PVC sheath
50m in length
Standards and Approvals: BS 5467
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
