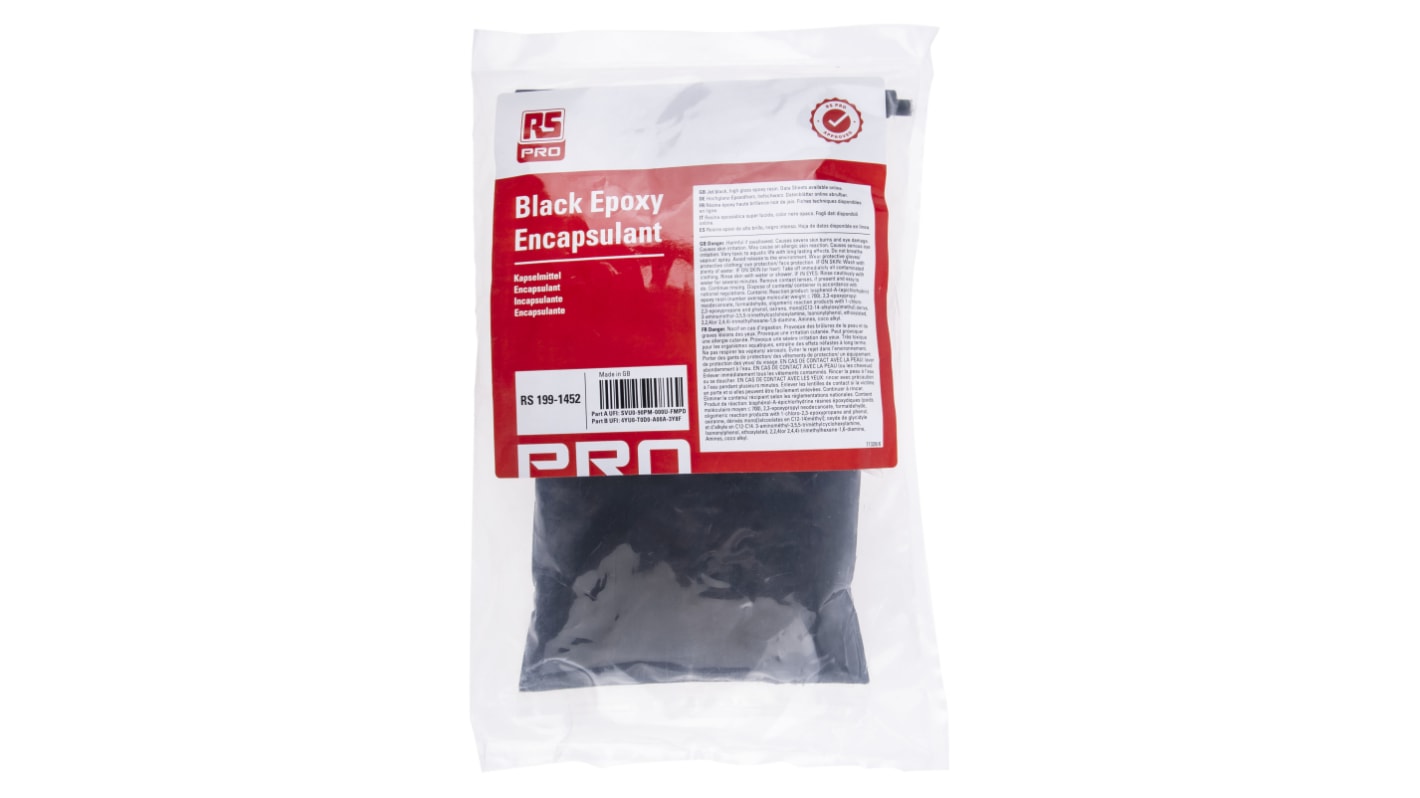

RS PRO Black Epoxy Potting Compound 1000 g
- RS Stock No.:
- 199-1452
- Brand:
- RS PRO
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£24.06
(exc. VAT)
£28.87
(inc. VAT)
- RS Stock No.:
- 199-1452
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Material | Epoxy | |
| Package Type | Pack | |
| Package Size | 1000 g | |
| Special Properties | Flame Retardant | |
| Cure Time | 24 h | |
| Hardness | 85 Shore D | |
| Thermal Conductivity | 0.45W/mK | |
| Colour | Black | |
| Maximum Operating Temperature | +120°C | |
| Minimum Operating Temperature | -40°C | |
| Dielectric Strength | 10kV/mm | |
| Chemical Composition | 3 Dimethylbenzene, Epoxy Resin, Formaldehyde, Neodecanoic Acid Glycidyl Ester, Polymer with 1 | |
| Physical Form | Viscous Liquid | |
| Viscosity Measurement | 150, 000 mPa/s at +25°C | |
| Operating Temperature Range | -40 → +120 °C | |
| Odour | Characteristic | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Material Epoxy | ||
Package Type Pack | ||
Package Size 1000 g | ||
Special Properties Flame Retardant | ||
Cure Time 24 h | ||
Hardness 85 Shore D | ||
Thermal Conductivity 0.45W/mK | ||
Colour Black | ||
Maximum Operating Temperature +120°C | ||
Minimum Operating Temperature -40°C | ||
Dielectric Strength 10kV/mm | ||
Chemical Composition 3 Dimethylbenzene, Epoxy Resin, Formaldehyde, Neodecanoic Acid Glycidyl Ester, Polymer with 1 | ||
Physical Form Viscous Liquid | ||
Viscosity Measurement 150, 000 mPa/s at +25°C | ||
Operating Temperature Range -40 → +120 °C | ||
Odour Characteristic | ||
- COO (Country of Origin):
- GB
RS PRO General Purpose Twin-Pack Black Epoxy Resin Potting Compound
What is Epoxy Resin Potting Compound?
Features and Benefits
Excellent mechanical protection against vibration and physical shock
Good chemical resistance and water resistance
Excellent electrical insulation properties
Adheres to a wide range of substrates
Flame retardant to UL94 V-0 with 'clean' flame retardant technology
Hardener free of DDMs or other aromatic amines
Low shrinkage ratio during curing
Low coefficient of thermal expansion when subject to temperature changes
Mix in the bag twin pack design reduces user contact and mess
What is This Epoxy Resin Potting Compound Used For?
Whats in the Pack?
How do you Apply Potting Compound?
