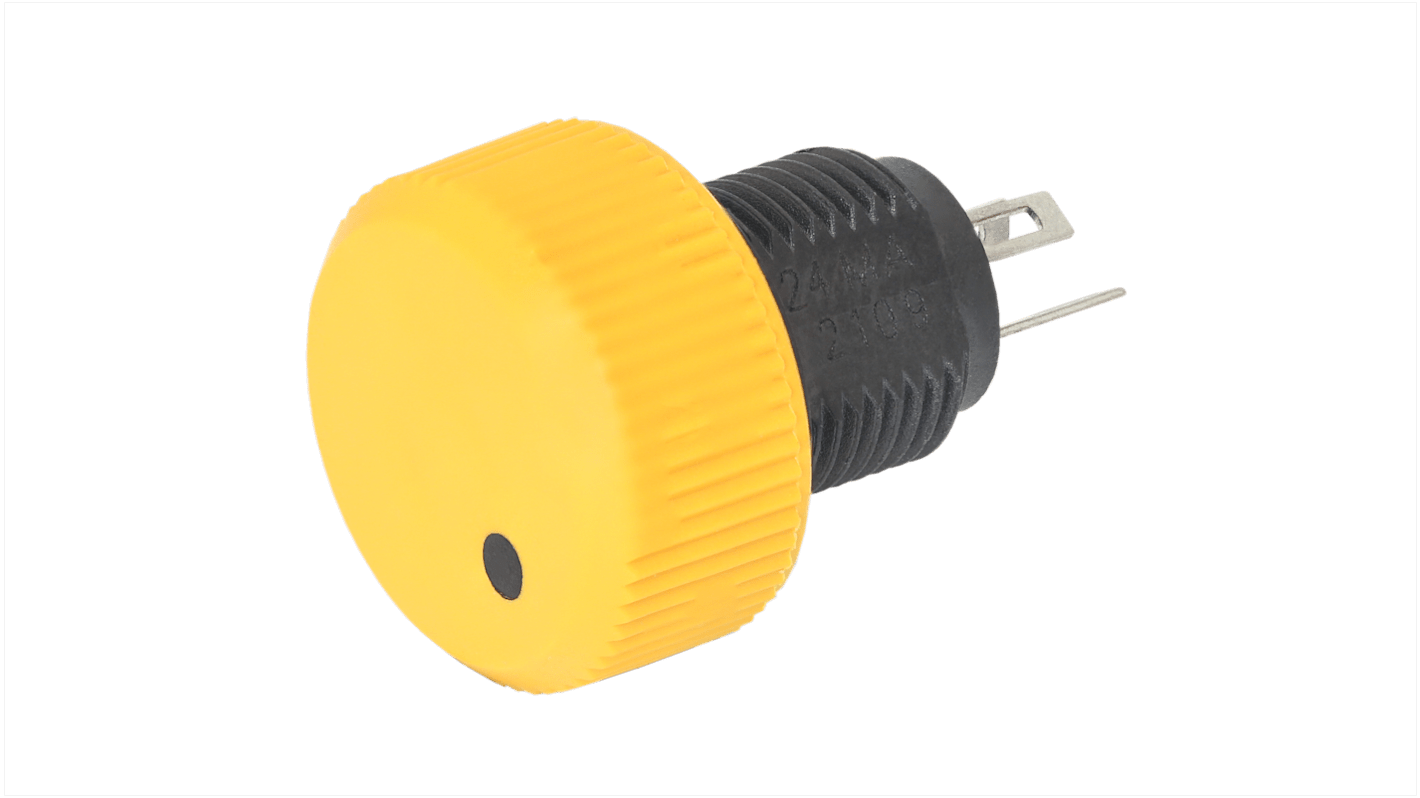

Vishay P16 1kΩ Rotary Potentiometer 1-Gang Panel Mount, P16YP102MAB15
- RS Stock No.:
- 249-1506
- Mfr. Part No.:
- P16YP102MAB15
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£19.62
(exc. VAT)
£23.54
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 23 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £19.62 |
| 5 - 9 | £17.11 |
| 10 + | £16.09 |
*price indicative
- RS Stock No.:
- 249-1506
- Mfr. Part No.:
- P16YP102MAB15
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 1kΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 1W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Shaft Length | 8.8mm | |
| Shaft Diameter | 16 mm | |
| Actuator Type | Round Shaft | |
| Series | P16 | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Potentiometer Type Rotary | ||
Maximum Resistance 1kΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 1W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mounting Type Panel Mount | ||
Termination Style Solder Lug | ||
Shaft Length 8.8mm | ||
Shaft Diameter 16 mm | ||
Actuator Type Round Shaft | ||
Series P16 | ||
Tolerance ±20% | ||
- COO (Country of Origin):
- CZ
The Vishay P16 series potentiometer is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel reducing to a minimum the required clearance.
Detent and electric cut off at beginning of travel
Fully sealed and panel sealed
Metallic or plastic knob options
Sealing level IP 67
Lifespan 10K cycles (switch), 50K cycles (track)
Fully sealed and panel sealed
Metallic or plastic knob options
Sealing level IP 67
Lifespan 10K cycles (switch), 50K cycles (track)
