Vishay P16 1kΩ Rotary Potentiometer 1-Gang Panel Mount, P16NP102MAB15CV1D

View all Potentiometers

Subtotal (1 box of 20 units)*

£261.64

(exc. VAT)

£313.96

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 20 unit(s) shipping from 03 November 2025
  • Plus 999,999,960 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
20 +£13.082£261.64

*price indicative

RS Stock No.:
298-393
Mfr. Part No.:
P16NP102MAB15CV1D
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Potentiometer Type

Rotary

Maximum Resistance

1kΩ

Number of Gangs

1

Number of Turns

1

Power Rating

1W

Electrical Taper

Linear

Element Material

Cermet

Mounting Type

Panel Mount

Termination Style

Solder Lug

Shaft Length

8.8mm

Shaft Diameter

16 mm

Actuator Type

Round Shaft

Series

P16

Tolerance

±20%

COO (Country of Origin):
CZ

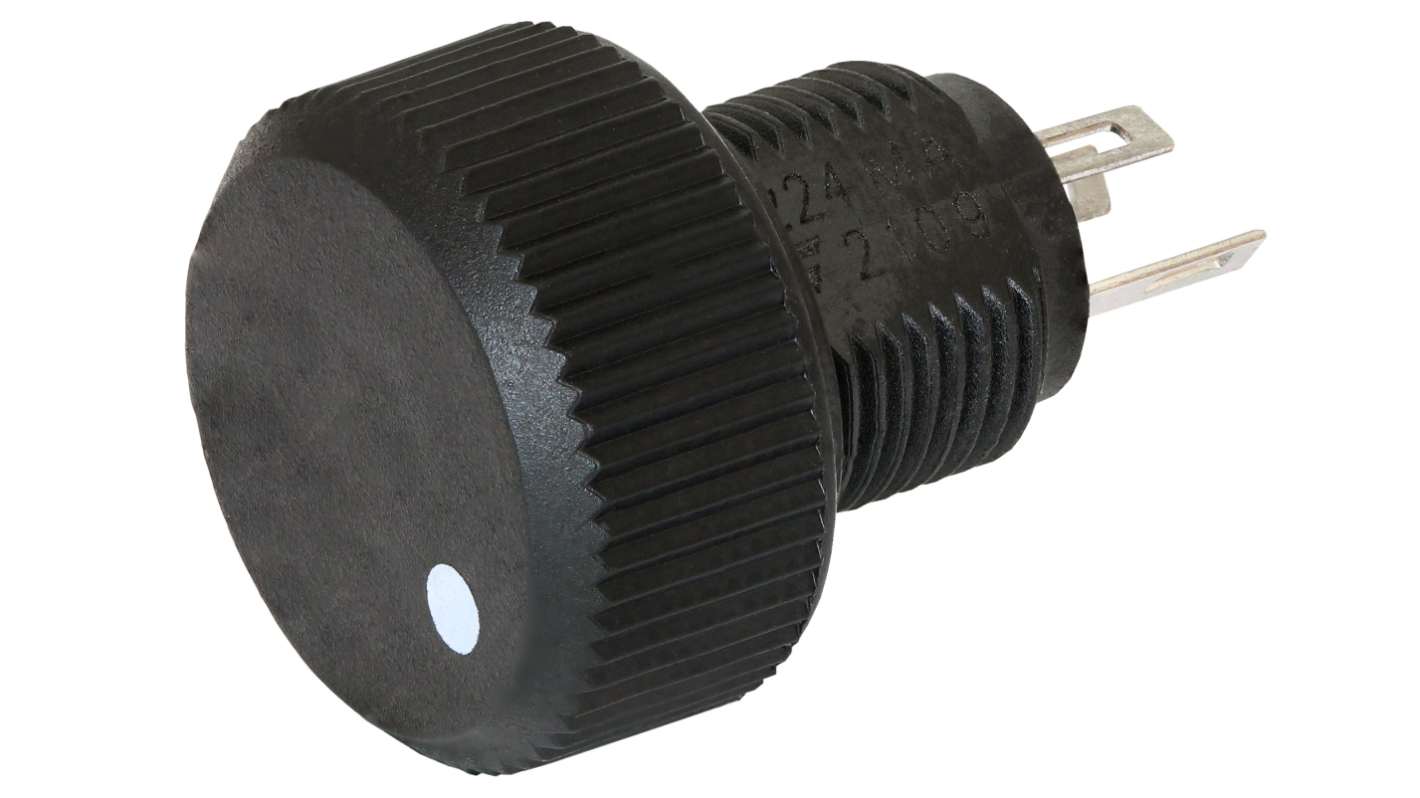

The Vishay Potentiometer comes with a compact design, featuring a knob-driven cermet potentiometer. The P16 version is rated for 1 W at 40°C for industrial applications, while the PA16 version is rated for 0.5 W at 40°C for audio applications. It offers high dielectric strength of 2500 VRMS and is fully sealed with minimal clearance requirements. Tested according to CECC 41000 or IEC 60393-1.

Blue white yellow red and black knob
Several marking dot line gradient 5 graduations 10 graduations fan light volume temperature
Metallic or plastic knob options
Custom knob and marking on request
Detent option on request haptic technology
