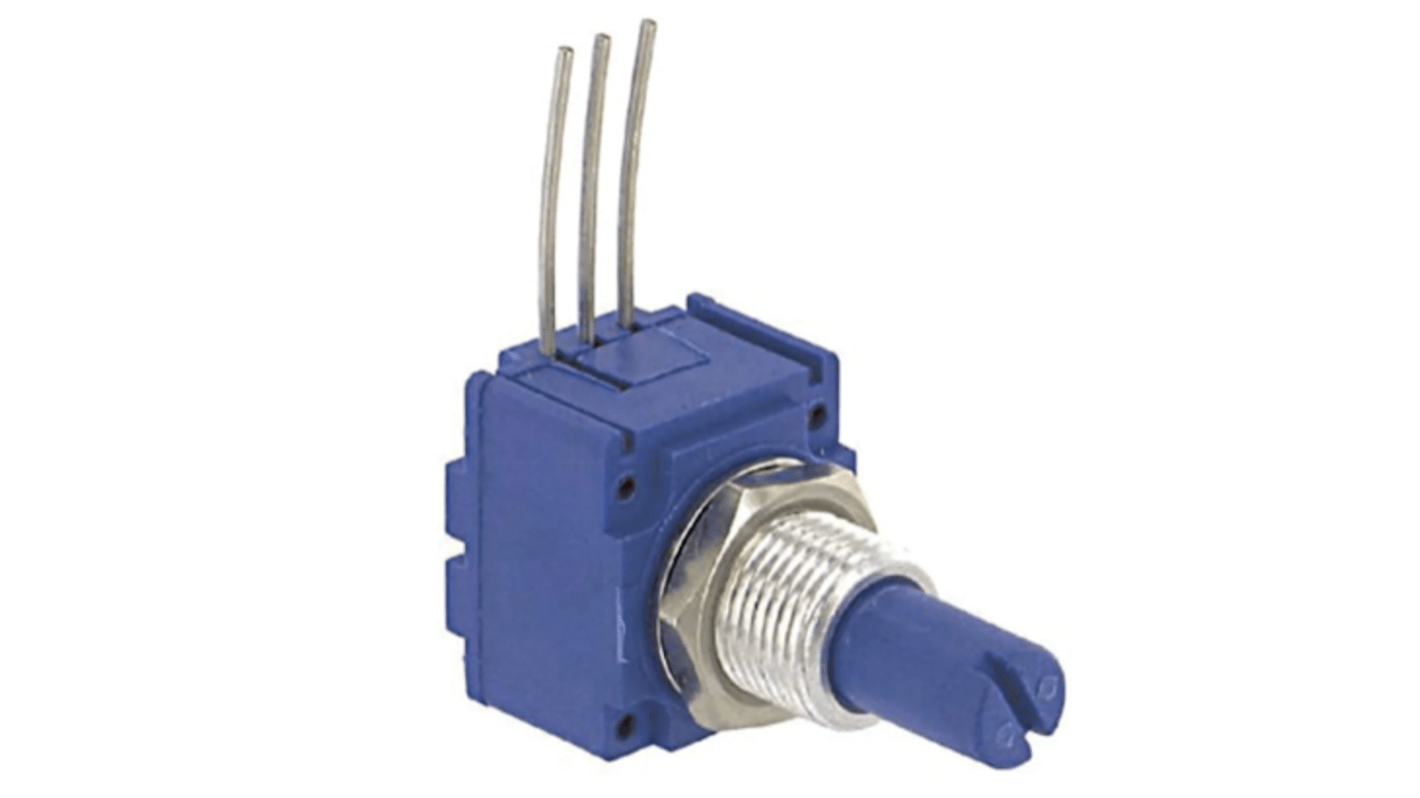

Bourns 91 250 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel, 91A1A-B28-A22L
- RS Stock No.:
- 230-7061
- Distrelec Article No.:
- 303-99-246
- Mfr. Part No.:
- 91A1A-B28-A22L
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 tray of 45 units)*
£178.65
(exc. VAT)
£214.20
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,260 unit(s) shipping from 04 June 2026
- Plus 225 unit(s) shipping from 04 June 2026
- Plus 495 unit(s) shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 45 - 45 | £3.97 | £178.65 |
| 90 - 135 | £3.577 | £160.97 |
| 180 + | £3.103 | £139.64 |
*price indicative
- RS Stock No.:
- 230-7061
- Distrelec Article No.:
- 303-99-246
- Mfr. Part No.:
- 91A1A-B28-A22L
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Potentiometer | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 250kΩ | |
| Number of Gangs | 1 | |
| Shaft Diameter | 6.35mm | |
| Number of Turns | 1 | |
| Packaging | Bulk | |
| Power Rating | 2W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mount Type | Panel | |
| Shaft Length | 22.23mm | |
| Adjustment Type | Side | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 32.74mm | |
| Depth | 17.45mm | |
| Standards/Approvals | RoHS RoHS Directive 2002, EU June 8, EC Jan. 27, 95, 2011, 2003 including annex and RoHS Recast 2011 | |
| Series | 91 | |
| Tolerance ± | 10% | |
| Actuator Type | Slotted Shaft | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Potentiometer | ||
Potentiometer Type Rotary | ||
Maximum Resistance 250kΩ | ||
Number of Gangs 1 | ||
Shaft Diameter 6.35mm | ||
Number of Turns 1 | ||
Packaging Bulk | ||
Power Rating 2W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mount Type Panel | ||
Shaft Length 22.23mm | ||
Adjustment Type Side | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 32.74mm | ||
Depth 17.45mm | ||
Standards/Approvals RoHS RoHS Directive 2002, EU June 8, EC Jan. 27, 95, 2011, 2003 including annex and RoHS Recast 2011 | ||
Series 91 | ||
Tolerance ± 10% | ||
Actuator Type Slotted Shaft | ||
- COO (Country of Origin):
- MX
The Bourns 91A1A-B28-A22L is a part of 91 Series which are single turn, rotary linear potentiometers. It is available in various pin-out configurations. It has one piece shaft and rotor assembly. It has Panel and PCB mountable capacity. It also has linear and audio (log) output track options.
Potentiometer type Rotary
Maximum resistance 500kΩ
Number of gangs 1
Number of turns 1
Power rating 2W
Electrical taper Linear
