- RS Stock No.:
- 168-0051
- Mfr. Part No.:
- P11L2V0FLSY00502KA
- Brand:
- Vishay
Available to back order for despatch 30/08/2024
Added
Price Each (In a Box of 40)
£18.542
(exc. VAT)
£22.25
(inc. VAT)
Units | Per unit | Per Box* |
40 - 40 | £18.542 | £741.68 |
80 + | £17.615 | £704.60 |
*price indicative |
- RS Stock No.:
- 168-0051
- Mfr. Part No.:
- P11L2V0FLSY00502KA
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

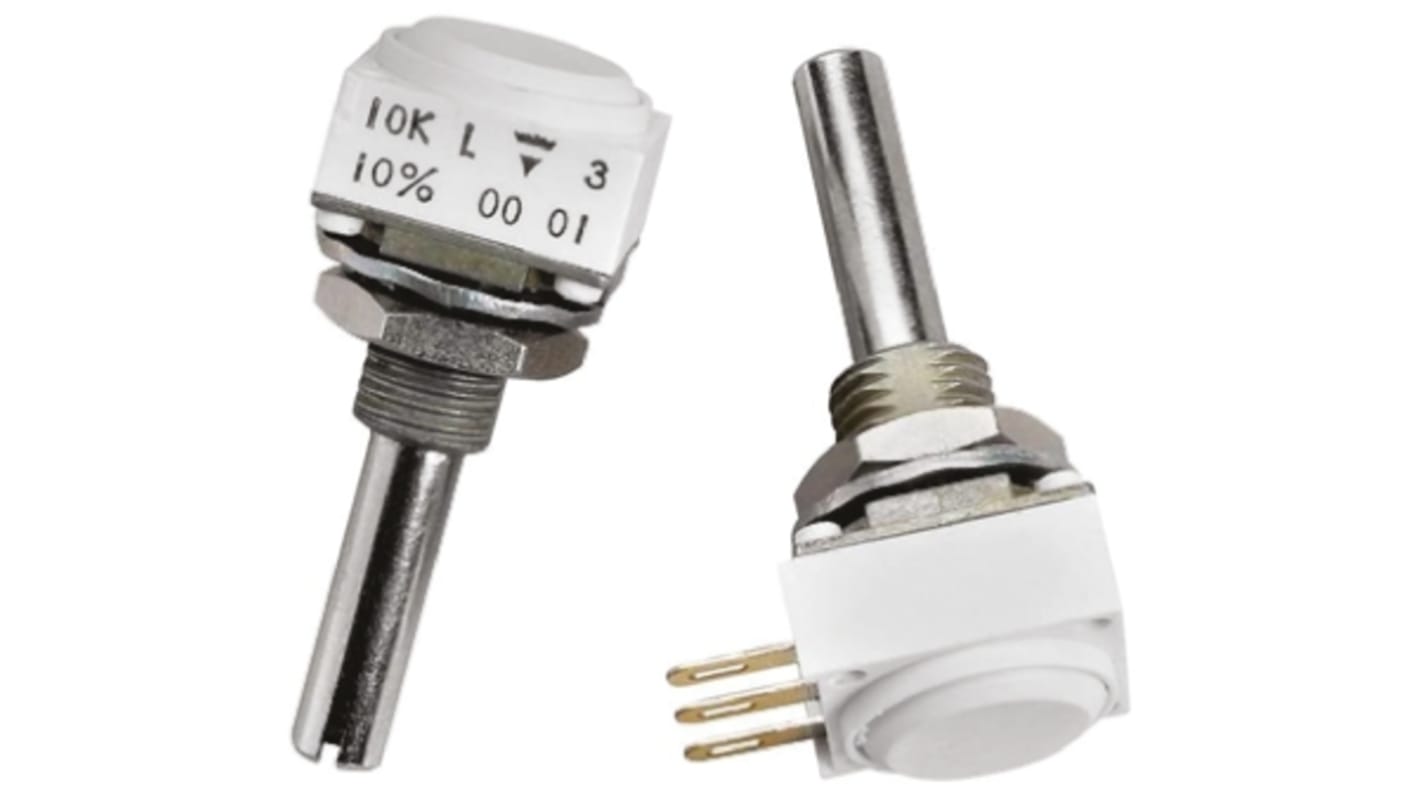

Long Life Cermet Potentiometer P11L
Vishay P11L series long life cermet potentiometers are economical, long-life panel potentiometers featuring up to four modules and a compact 12.5-mm size. While standard low-cost panel potentiometers reach 50,000 cycles, the P11L offers a long life of 2 million cycles. For designers, this reduces the need for replacement parts, increasing reliability and lowering maintenance costs. The versatile panel potentiometer is optimized for CMOS amplifier gain, CMOS IC offset setting, motor speed control, and angle sensor applications in welding machines, air conditioning units, tooling machines, medical systems, X-ray equipment, trucks and tractors, and military and avionics systems.
2 million cycles with Cermet element
12.5mm square single turn panel control
6mm Diameter, 25mm Length Slotted Shaft
Single or Dual assemblies
Test according to CECC 41000 or IEC 60393-1
Low Temperature Coefficient
Linearity ±3%
12.5mm square single turn panel control
6mm Diameter, 25mm Length Slotted Shaft
Single or Dual assemblies
Test according to CECC 41000 or IEC 60393-1
Low Temperature Coefficient
Linearity ±3%
Specifications
Attribute | Value |
---|---|
Potentiometer Type | Rotary |
Maximum Resistance | 5kΩ |
Number of Gangs | 2 |
Number of Turns | 1 |
Power Rating | 0.1W |
Electrical Taper | Linear |
Element Material | Cermet |
Mounting Type | Panel Mount |
Termination Style | Solder Lug |
Shaft Length | 25mm |
Shaft Diameter | 6 mm |
Actuator Type | Slotted Shaft |
Series | P11L |
Tolerance | ±10% |
