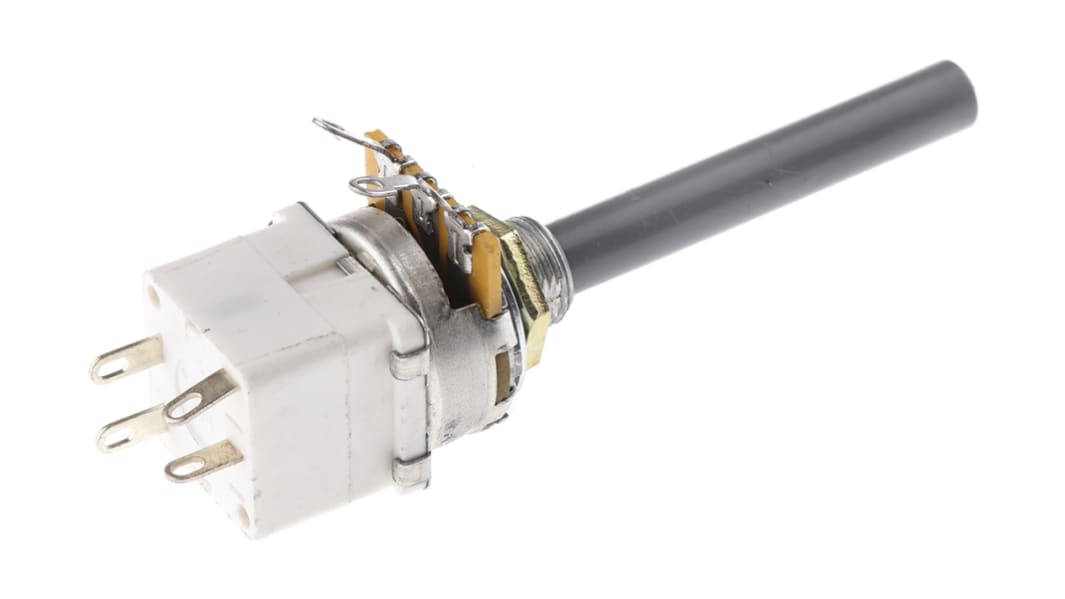

TE Connectivity 23 1MΩ Rotary Potentiometer 1-Gang Panel Mount, 1624204-2
- RS Stock No.:
- 164-9338
- Mfr. Part No.:
- 1624204-2
- Brand:
- TE Connectivity
Subtotal (1 box of 100 units)**
£563.00
(exc. VAT)
£676.00
(inc. VAT)
100 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit | Per Box** |
|---|---|---|
| 100 + | £5.63 | £563.00 |
**price indicative
- RS Stock No.:
- 164-9338
- Mfr. Part No.:
- 1624204-2
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 1MΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 0.4W | |
| Electrical Taper | Linear | |
| Element Material | Carbon | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Shaft Length | 50mm | |
| Shaft Diameter | 6.35 mm | |
| Tolerance | ±20% | |
| Actuator Type | Round Shaft | |
| Series | 23 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Potentiometer Type Rotary | ||
Maximum Resistance 1MΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 0.4W | ||
Electrical Taper Linear | ||
Element Material Carbon | ||
Mounting Type Panel Mount | ||
Termination Style Solder Lug | ||
Shaft Length 50mm | ||
Shaft Diameter 6.35 mm | ||
Tolerance ±20% | ||
Actuator Type Round Shaft | ||
Series 23 | ||
