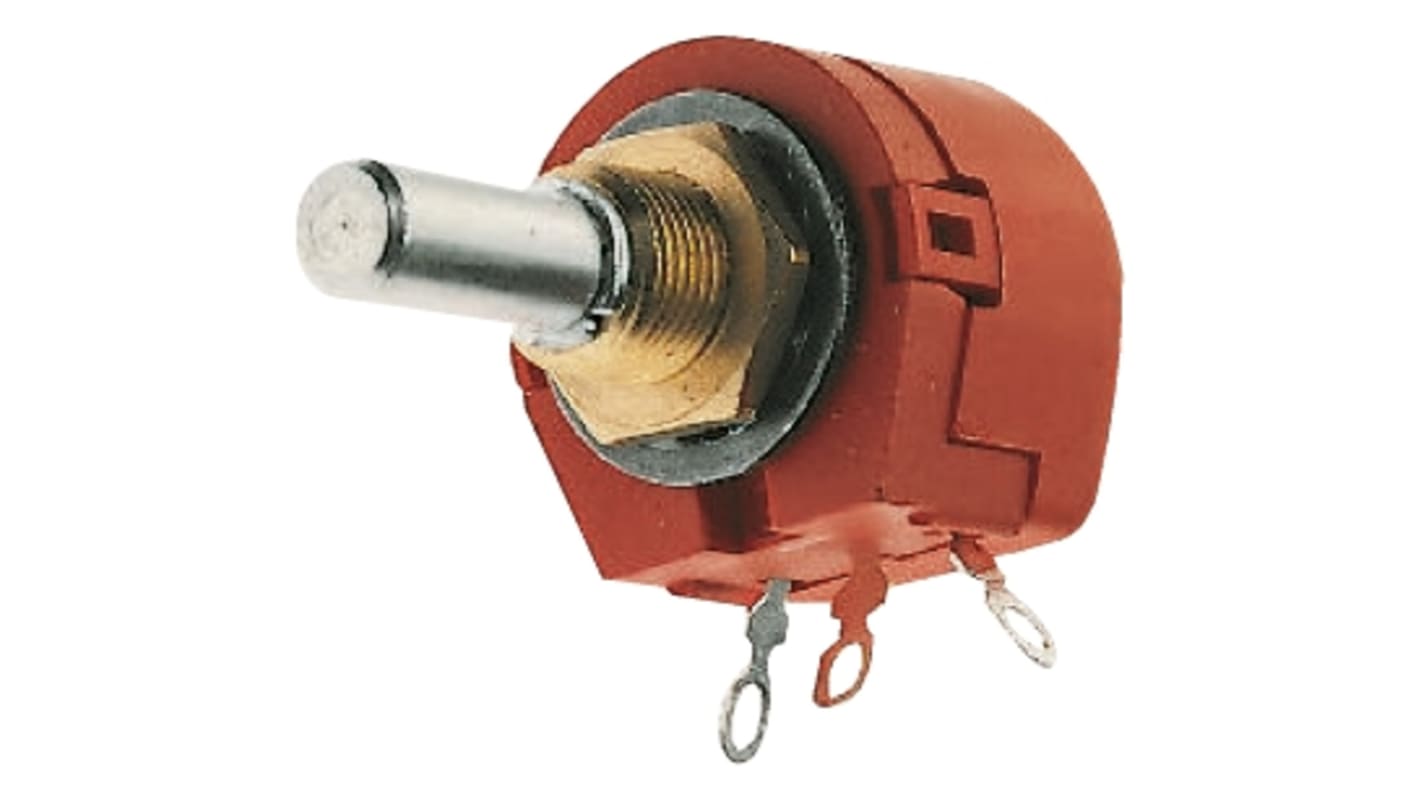

TE Connectivity TW 100Ω Rotary Potentiometer 1-Gang Panel Mount, TW1101KA
- RS Stock No.:
- 136-1809
- Mfr. Part No.:
- TW1101KA
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 136-1809
- Mfr. Part No.:
- TW1101KA
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Potentiometer Type | Rotary | |
Maximum Resistance | 100Ω | |
Number of Gangs | 1 | |
Number of Turns | 1 | |
Power Rating | 1W | |
Electrical Taper | Linear | |
Element Material | Wirewound | |
Mounting Type | Panel Mount | |
Termination Style | Solder Lug | |
Shaft Length | 15mm | |
Shaft Diameter | 6.35 mm | |
Series | TW | |
Tolerance | ±10% | |
Actuator Type | Round Shaft | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Potentiometer Type Rotary | ||
Maximum Resistance 100Ω | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 1W | ||
Electrical Taper Linear | ||
Element Material Wirewound | ||
Mounting Type Panel Mount | ||
Termination Style Solder Lug | ||
Shaft Length 15mm | ||
Shaft Diameter 6.35 mm | ||
Series TW | ||
Tolerance ±10% | ||
Actuator Type Round Shaft | ||
23mm TW Series Potentiometers
The 23mm high power wire-wound potentiometers from TE where designed to be used in a high power control environment. They are brilliant build quality with a stainless steel shaft and a rugged hard plastic casing. The potentiometers in this series are all standard with ±10% tolerance. They also have a life cycle of 10,000 operations. The 23mm series are panel mount for ease of use.
The series of 23mm TW are all rotary potentiometers. This means the shaft is housed by a knob. Turning the shaft will operate the wiper and adjust the resistance.
The series of 23mm TW are all rotary potentiometers. This means the shaft is housed by a knob. Turning the shaft will operate the wiper and adjust the resistance.
Features and Benefits –
Built with quality in mind so you can use these potentiometers in a rugged environment.
±10% tolerance
Excellent linearity
Sealed body provides additional protection
10,000 operations for a long life span
Solder eyelet termination
Supplied with a metal lock and washer
±10% tolerance
Excellent linearity
Sealed body provides additional protection
10,000 operations for a long life span
Solder eyelet termination
Supplied with a metal lock and washer
Compatible Potentiometer Knobs –
