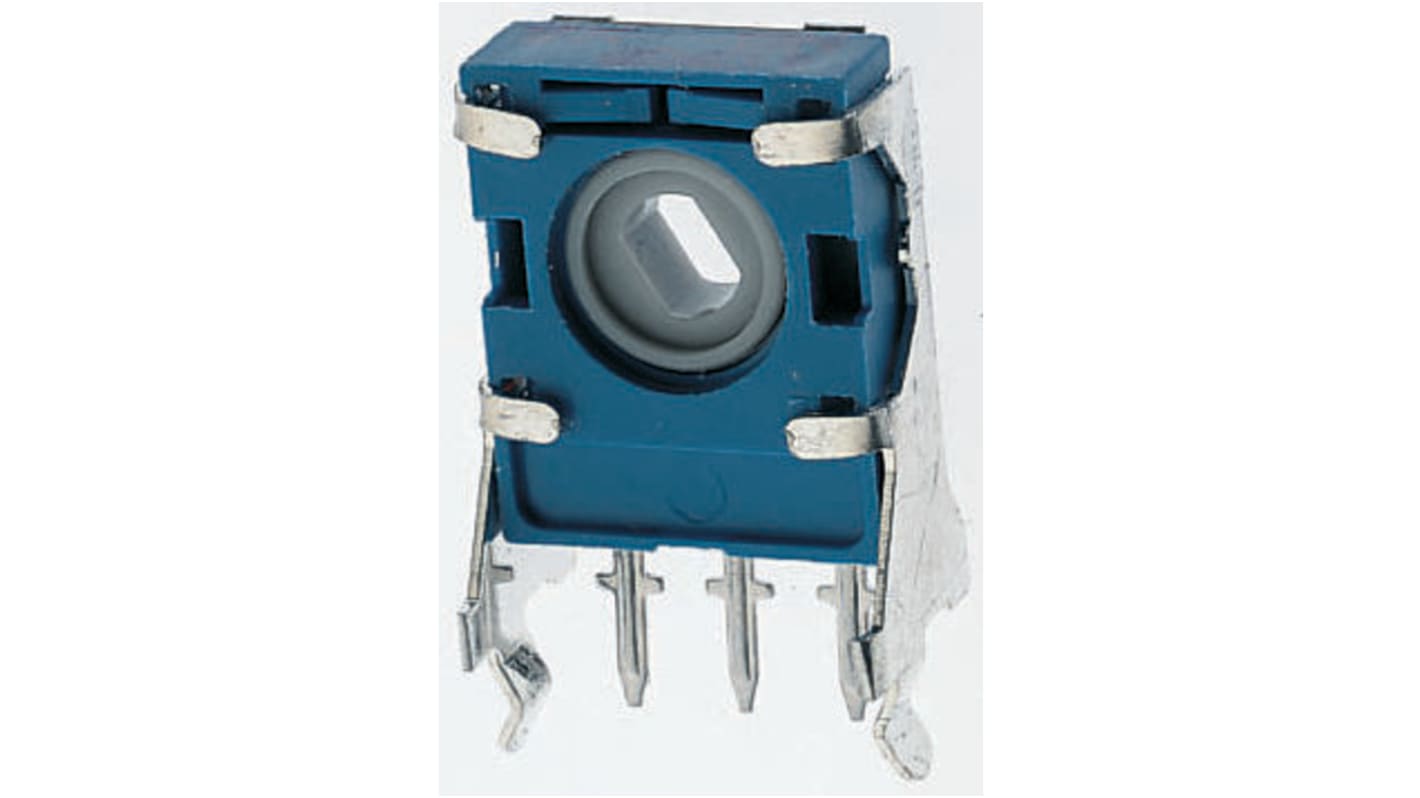

TE Connectivity 1 Gang Trimmer Carbon Potentiometer - 1MΩ, ±20%, 0.2W Power Rating, Linear, Panel Mount (Through Hole)

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

12mm Spindle Operated Potentiometers

Small, robust design with built-in stabilising bracket
Resin based track technology
Long life track (15000 cycles)
Multi-contact stainless steel wiper
Adjustable from both sides
Easily fitted snap-in spindles and edge wheels (optional)
300° rotation
±20% tolerance

//media.rs-online.com/t_line/L393778-01.gif
//media.rs-online.com/t_line/L393784-01.gif
//media.rs-online.com/t_line/L393790-01.gif
Specifications
Attribute Value
Potentiometer Type Trimmer
Maximum Resistance 1 MΩ
Number of Gangs 1
Number of Turns 1
Power Rating 0.2W
Electrical Taper Linear
Element Material Carbon
Mounting Type Panel Mount, Through Hole
Termination Style Pin
Tolerance ±20%
Actuator Type Round Shaft
7 In stock - FREE next working day delivery available
Price Each
£ 2.61
(exc. VAT)
£ 3.13
(inc. VAT)
Units
Per unit
1 - 9
£2.61
10 - 24
£2.22
25 - 49
£1.96
50 - 99
£1.70
100 +
£1.57
Packaging Options:
