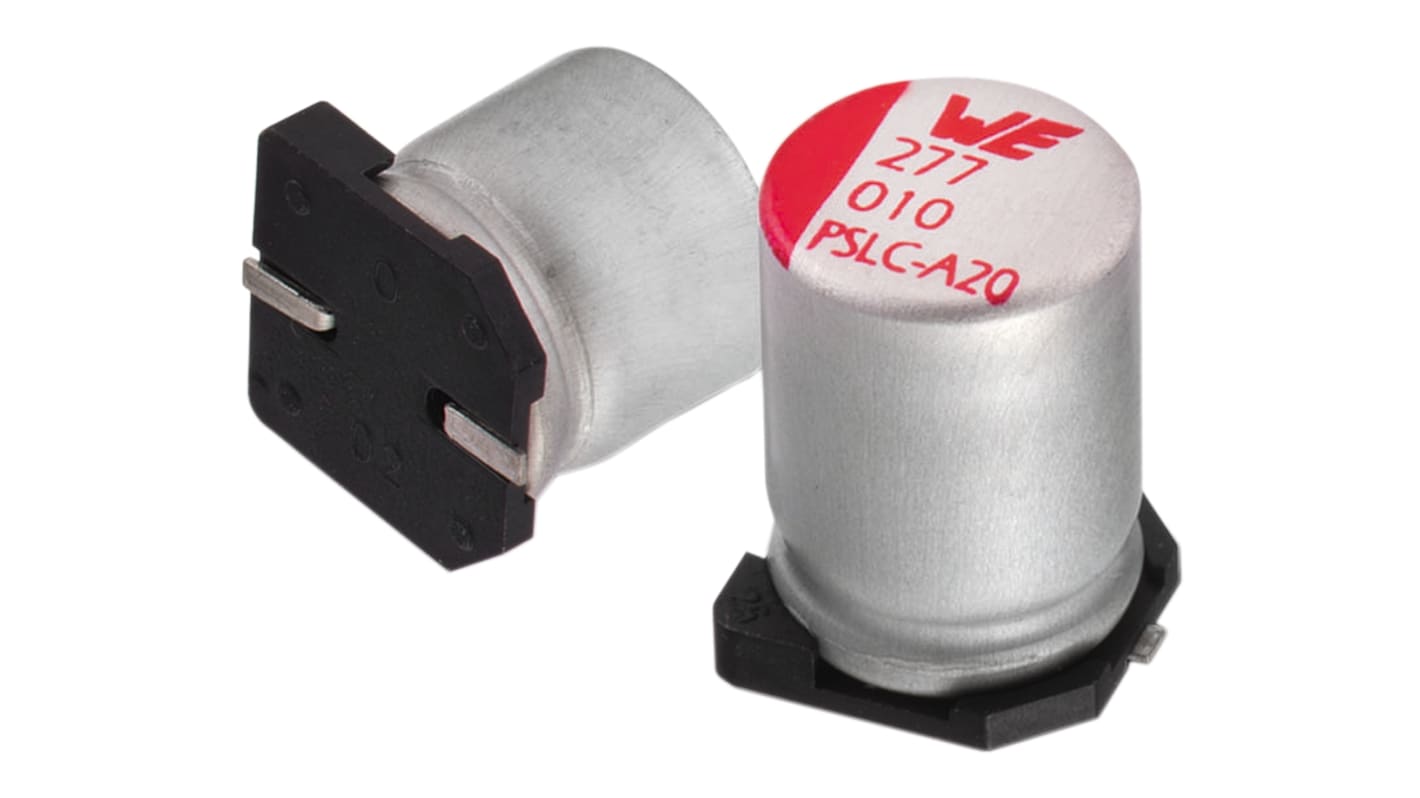

Wurth Elektronik 82μF Surface Mount Polymer Capacitor, 6.3V dc
- RS Stock No.:
- 838-7403
- Mfr. Part No.:
- 875105142004
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 10 units)*
£4.00
(exc. VAT)
£4.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.40 | £4.00 |
| 50 - 90 | £0.336 | £3.36 |
| 100 - 190 | £0.291 | £2.91 |
| 200 - 990 | £0.277 | £2.77 |
| 1000 + | £0.227 | £2.27 |
*price indicative
- RS Stock No.:
- 838-7403
- Mfr. Part No.:
- 875105142004
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Technology | Polymer | |
| Capacitance | 82µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 6.3V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 30mΩ | |
| Lead Pitch | 1.4mm | |
| Tolerance | ±20% | |
| Height | 5mm | |
| Maximum Operating Temperature | +105°C | |
| Dimensions | 5.5 (Dia) x 5mm | |
| Series | WCAP-PSLP | |
| Leakage Current | 300 μA | |
| Diameter | 5.5mm | |
| Dissipation Factor | 8% | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 1.97A | |
| Polarised | Polar | |
| Lifetime | 2000h | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Technology Polymer | ||
Capacitance 82µF | ||
Dielectric Material Family Aluminium | ||
Voltage 6.3V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 30mΩ | ||
Lead Pitch 1.4mm | ||
Tolerance ±20% | ||
Height 5mm | ||
Maximum Operating Temperature +105°C | ||
Dimensions 5.5 (Dia) x 5mm | ||
Series WCAP-PSLP | ||
Leakage Current 300 μA | ||
Diameter 5.5mm | ||
Dissipation Factor 8% | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 1.97A | ||
Polarised Polar | ||
Lifetime 2000h | ||
Wurth Elektronik SMD Aluminium Polymer Capacitor - WCAP-PSLP series
Aluminium Polymer capacitors contain solid conductive polymer instead of wet electrolytic,thus the benefits are:
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer
WCAP-PSLP are low profile SMD polymer electrolytic capacitors Series
Load life of 2000h @ +105°C
Operating temperature: -55°C to +105°C
Reflow soldering is recommended
Load life of 2000h @ +105°C
Operating temperature: -55°C to +105°C
Reflow soldering is recommended
