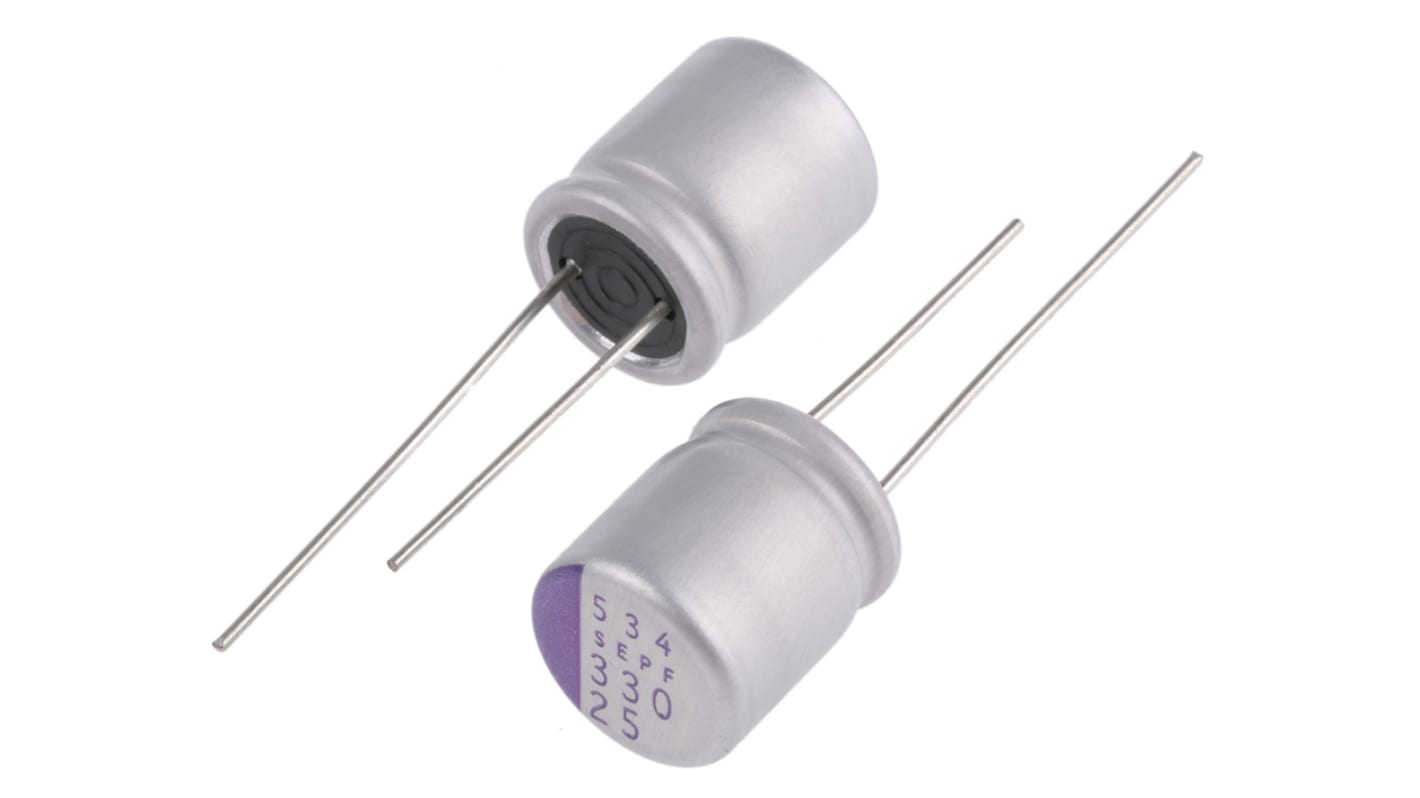

Panasonic 330μF Through Hole Polymer Capacitor, 25V dc
- RS Stock No.:
- 795-5581
- Mfr. Part No.:
- 25SEPF330M
- Brand:
- Panasonic
Save 25% when you buy 200 units
Subtotal (1 pack of 2 units)*
£2.67
(exc. VAT)
£3.204
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 68 unit(s) ready to ship
- Plus 114 unit(s) shipping from 08 October 2025
- Plus 200 unit(s) shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £1.335 | £2.67 |
| 20 - 48 | £1.265 | £2.53 |
| 50 - 98 | £1.175 | £2.35 |
| 100 - 198 | £1.095 | £2.19 |
| 200 + | £0.995 | £1.99 |
*price indicative
- RS Stock No.:
- 795-5581
- Mfr. Part No.:
- 25SEPF330M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 330µF | |
| Voltage | 25V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 14mΩ | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Length | 13mm | |
| Maximum Operating Temperature | +105°C | |
| Height | 13mm | |
| Dimensions | 10 (Dia) x 13mm | |
| Series | SEPF | |
| Electrolyte Type | Solid | |
| Ripple Current | 5A | |
| Polarised | Polar | |
| Dissipation Factor | 0.12% | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Leakage Current | 1650 μA | |
| Lifetime | 5000h | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 330µF | ||
Voltage 25V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 14mΩ | ||
Lead Pitch 5mm | ||
Tolerance ±20% | ||
Length 13mm | ||
Maximum Operating Temperature +105°C | ||
Height 13mm | ||
Dimensions 10 (Dia) x 13mm | ||
Series SEPF | ||
Electrolyte Type Solid | ||
Ripple Current 5A | ||
Polarised Polar | ||
Dissipation Factor 0.12% | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Leakage Current 1650 μA | ||
Lifetime 5000h | ||
OSCON Solid Electrolytic radial SEPF series
Panasonic OS-CON SEPF electrolytic capacitors have a solid aluminium construction with a high conductive polymer. These aluminium capacitors cater for high voltage up to 35 V dc and feature large capacitance up to 1000μF.
5000 h guarantee at +105°C
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
Radial lead type
Halogen free
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
Radial lead type
Halogen free
Applications
These radial capacitors are recommended for use in industrial infrastructure in industrial PCs, motor drivers, measuring instruments, power supplies, security cameras and inverters. Suitable uses for these electrolytic capacitors include infotainment and comfort accessories within automotive applications and ICT applications such as PCs, base stations, SSD and data centres. SEPF capacitors are also suitable for home appliances such as air conditioners and home information appliances.
Solid Radial 105°C
