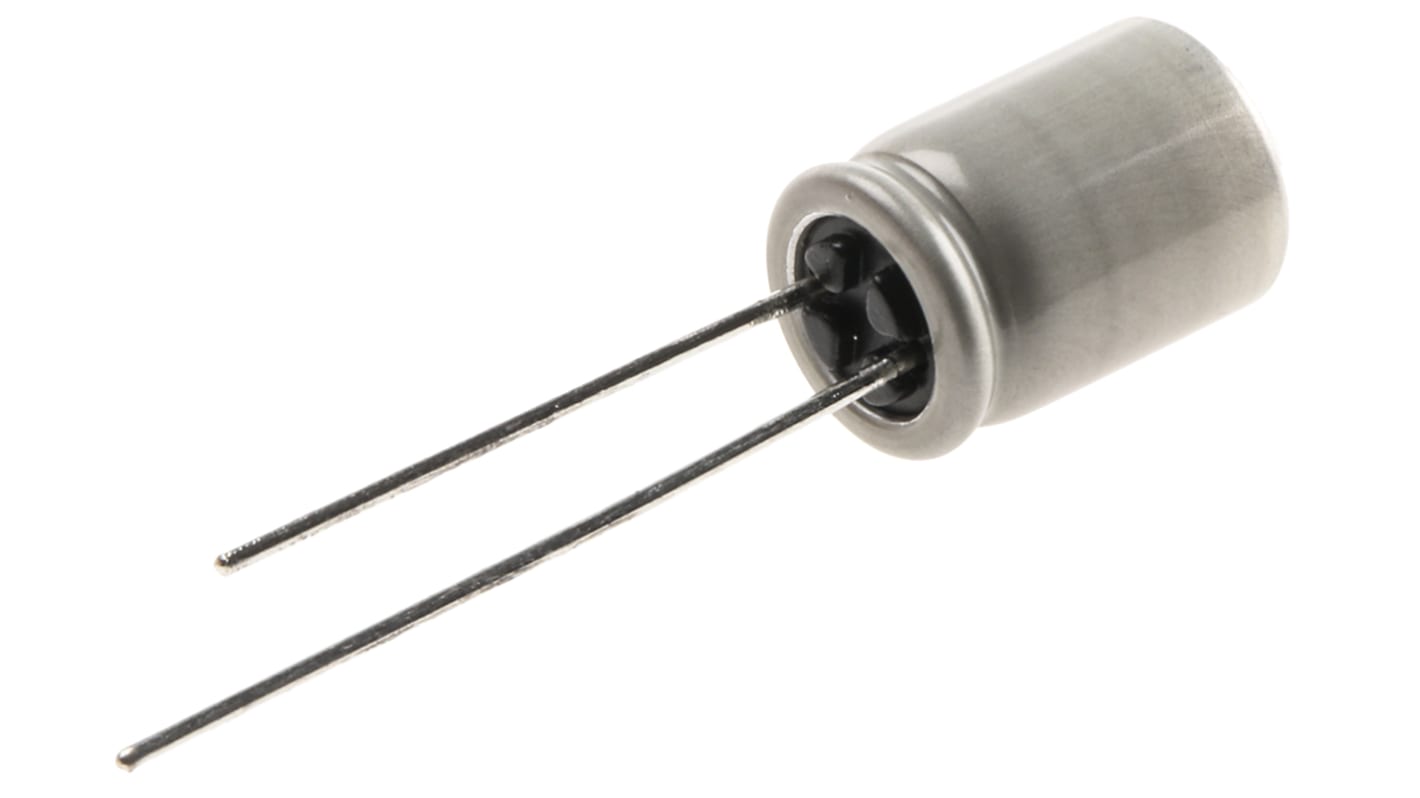

Panasonic 100μF Through Hole Polymer Capacitor, 20V dc
- RS Stock No.:
- 795-5531
- Mfr. Part No.:
- 20SEP100M
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.44
(exc. VAT)
£8.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 115 unit(s) ready to ship
- Plus 130 unit(s) ready to ship from another location
- Plus 595 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.488 | £7.44 |
| 25 - 45 | £1.414 | £7.07 |
| 50 - 120 | £1.306 | £6.53 |
| 125 - 245 | £1.22 | £6.10 |
| 250 + | £1.10 | £5.50 |
*price indicative
- RS Stock No.:
- 795-5531
- Mfr. Part No.:
- 20SEP100M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 100µF | |
| Voltage | 20V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 24mΩ | |
| Lead Pitch | 3.5mm | |
| Tolerance | ±20% | |
| Maximum Operating Temperature | +105°C | |
| Height | 12mm | |
| Dimensions | 8 (Dia) x 12mm | |
| Series | SEPC | |
| Dissipation Factor | 15% | |
| Polarised | Polar | |
| Lifetime | 3000h | |
| Leakage Current | 400 μA | |
| Ripple Current | 3.32A | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 8mm | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 100µF | ||
Voltage 20V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 24mΩ | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Maximum Operating Temperature +105°C | ||
Height 12mm | ||
Dimensions 8 (Dia) x 12mm | ||
Series SEPC | ||
Dissipation Factor 15% | ||
Polarised Polar | ||
Lifetime 3000h | ||
Leakage Current 400 μA | ||
Ripple Current 3.32A | ||
Minimum Operating Temperature -55°C | ||
Diameter 8mm | ||
OSCON Solid Electrolytic radial SEP series
Panasonic OS-CON SEP series electrolytic capacitors feature a solid, aluminium construction with a high conductive polymer.
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
3000 h guarantee at +105°C
Radial lead type
Lead and Halogen free
Long life span
High voltage
High reliability
Low ESR and high ripple current
3000 h guarantee at +105°C
Radial lead type
Lead and Halogen free
Applications
Suitable uses for these electrolytic capacitors include infotainment and comfort accessories within automotive applications and ICT applications such as PCs, base stations, SSD and data centres. These radial capacitors are recommended for use in industrial infrastructure in industrial PCs, motor drivers, measuring instruments, power supplies, security cameras and inverters. SEP series capacitors are also suitable for home appliances such as air conditioners and home information appliances.
Solid Radial 105°C
