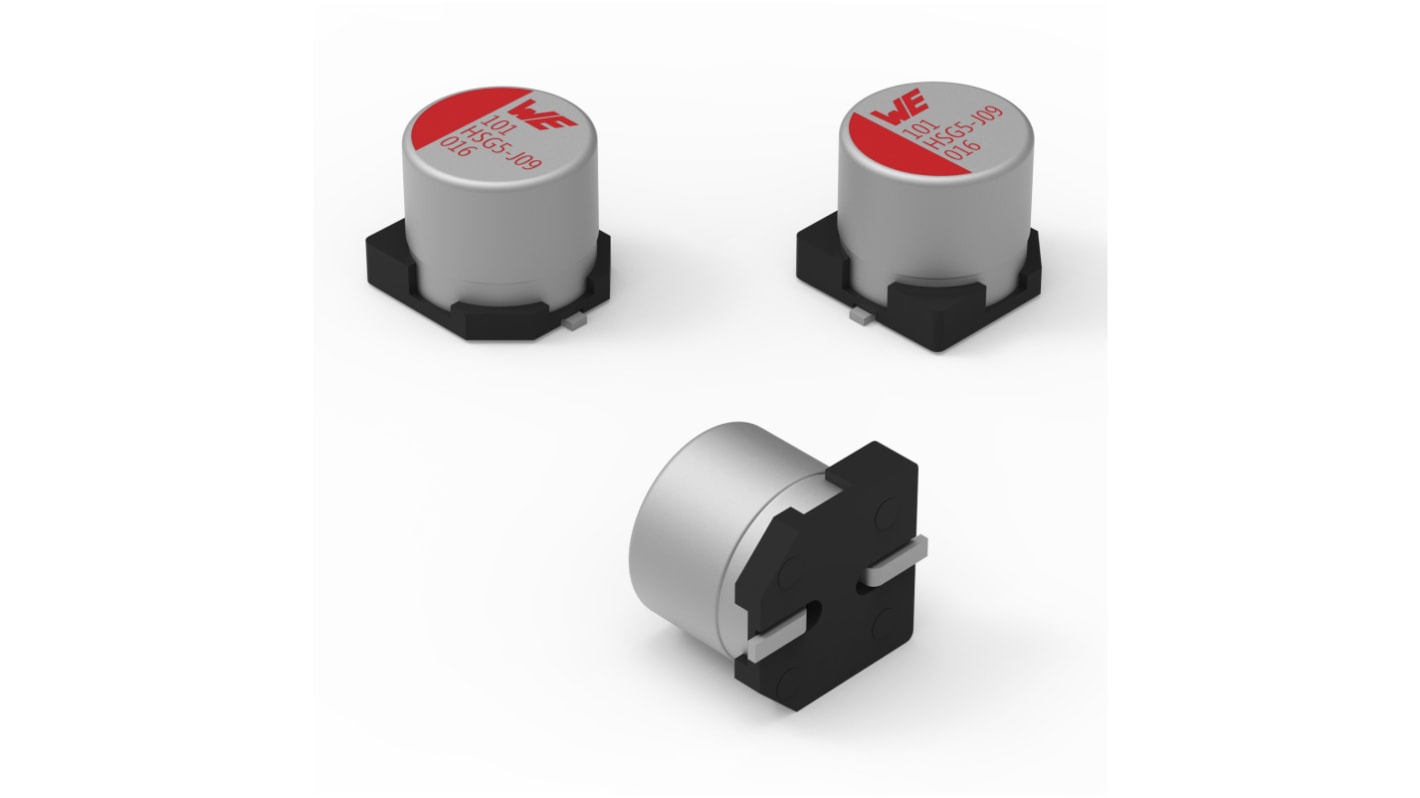

Wurth Elektronik 22 μF Surface Aluminium Polymer Capacitor, 50V dc
- RS Stock No.:
- 275-9432
- Distrelec Article No.:
- 304-42-256
- Mfr. Part No.:
- 875575744002
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£10.20
(exc. VAT)
£12.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £1.02 | £10.20 |
| 100 - 290 | £0.927 | £9.27 |
| 300 - 490 | £0.834 | £8.34 |
| 500 + | £0.723 | £7.23 |
*price indicative
- RS Stock No.:
- 275-9432
- Distrelec Article No.:
- 304-42-256
- Mfr. Part No.:
- 875575744002
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Technology | Hybrid, Polymer | |
| Product Type | Aluminium Polymer Capacitor | |
| Capacitance | 22μF | |
| Voltage | 50V dc | |
| Mount Type | Surface | |
| Package/Case | Plastic | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 105°C | |
| Dimensions | 6.3 x 5.8 mm | |
| Series | WCAP-HSG5 | |
| Length | 5.8mm | |
| Height | 5.8mm | |
| Leakage Current | 11μA | |
| Ripple Current | 1100mA | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 10% | |
| Automotive Standard | No | |
| Lifetime | 10000 h | |
| Diameter | 6.3mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Technology Hybrid, Polymer | ||
Product Type Aluminium Polymer Capacitor | ||
Capacitance 22μF | ||
Voltage 50V dc | ||
Mount Type Surface | ||
Package/Case Plastic | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 105°C | ||
Dimensions 6.3 x 5.8 mm | ||
Series WCAP-HSG5 | ||
Length 5.8mm | ||
Height 5.8mm | ||
Leakage Current 11μA | ||
Ripple Current 1100mA | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 10% | ||
Automotive Standard No | ||
Lifetime 10000 h | ||
Diameter 6.3mm | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik hybrid capacitor has high ripple current characteristics and high stability over the temperature range.
It has application in industry and telecommunication
Low leakage current
