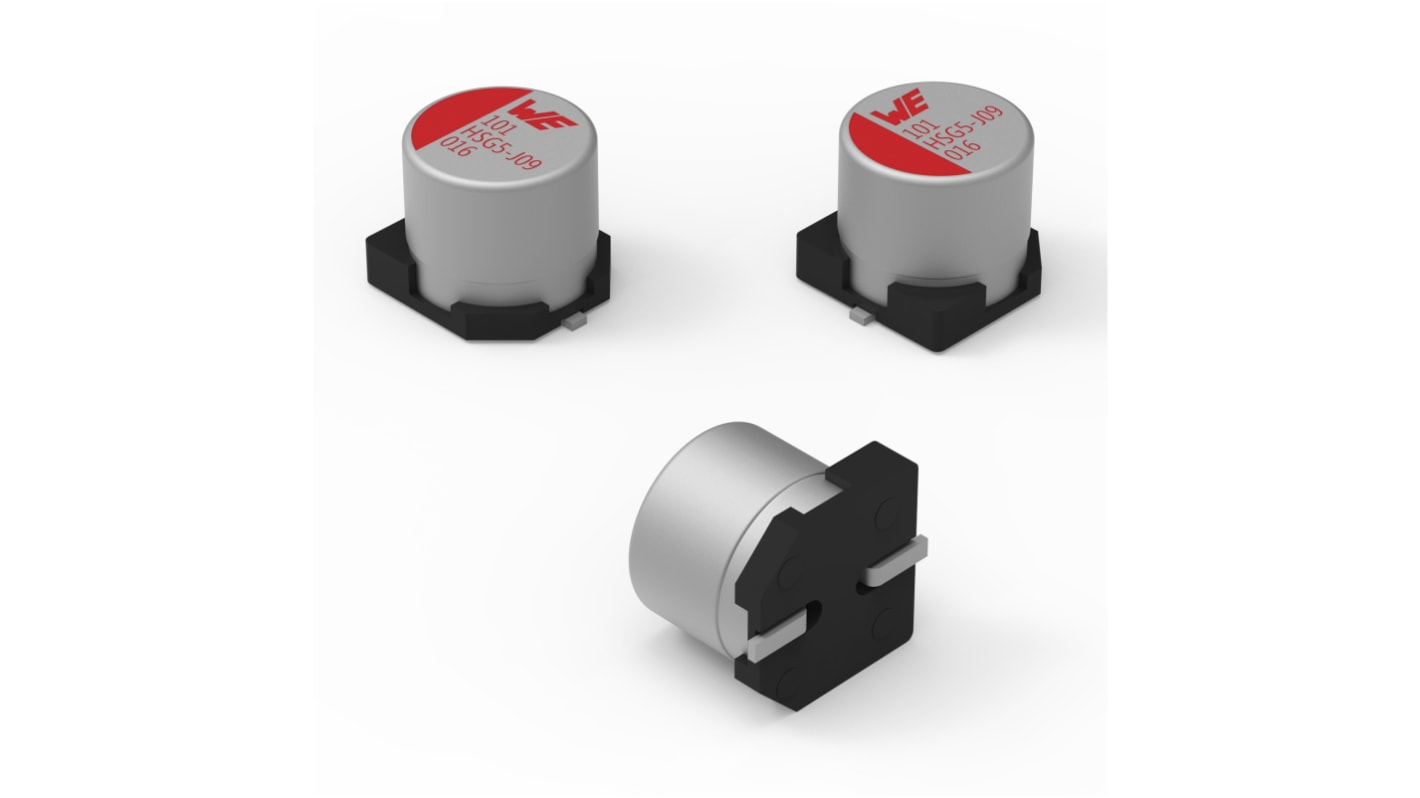

Wurth Elektronik 220 μF Surface Mount Aluminium Polymer Capacitor, 25V dc
- RS Stock No.:
- 275-9423
- Mfr. Part No.:
- 875575553004
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 500 units)*
£449.00
(exc. VAT)
£539.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 500 unit(s) shipping from 03 July 2026
- Plus 500 unit(s) shipping from 07 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.898 | £449.00 |
*price indicative
- RS Stock No.:
- 275-9423
- Mfr. Part No.:
- 875575553004
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Technology | Hybrid, Polymer | |
| Product Type | Aluminium Polymer Capacitor | |
| Capacitance | 220μF | |
| Voltage | 25V dc | |
| Mount Type | Surface Mount | |
| Package/Case | Plastic | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 105°C | |
| Dimensions | 8 x 10.5 mm | |
| Series | WCAP-HSG5 | |
| Length | 10.5mm | |
| Height | 10.5mm | |
| Lifetime | 10000 h | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Leakage Current | 55μA | |
| Ripple Current | 2300mA | |
| Dissipation Factor | 14% | |
| Diameter | 8mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Technology Hybrid, Polymer | ||
Product Type Aluminium Polymer Capacitor | ||
Capacitance 220μF | ||
Voltage 25V dc | ||
Mount Type Surface Mount | ||
Package/Case Plastic | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 105°C | ||
Dimensions 8 x 10.5 mm | ||
Series WCAP-HSG5 | ||
Length 10.5mm | ||
Height 10.5mm | ||
Lifetime 10000 h | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Leakage Current 55μA | ||
Ripple Current 2300mA | ||
Dissipation Factor 14% | ||
Diameter 8mm | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik hybrid capacitor has high ripple current characteristics and high stability over the temperature range.
It has application in industry and telecommunication
Low leakage current
