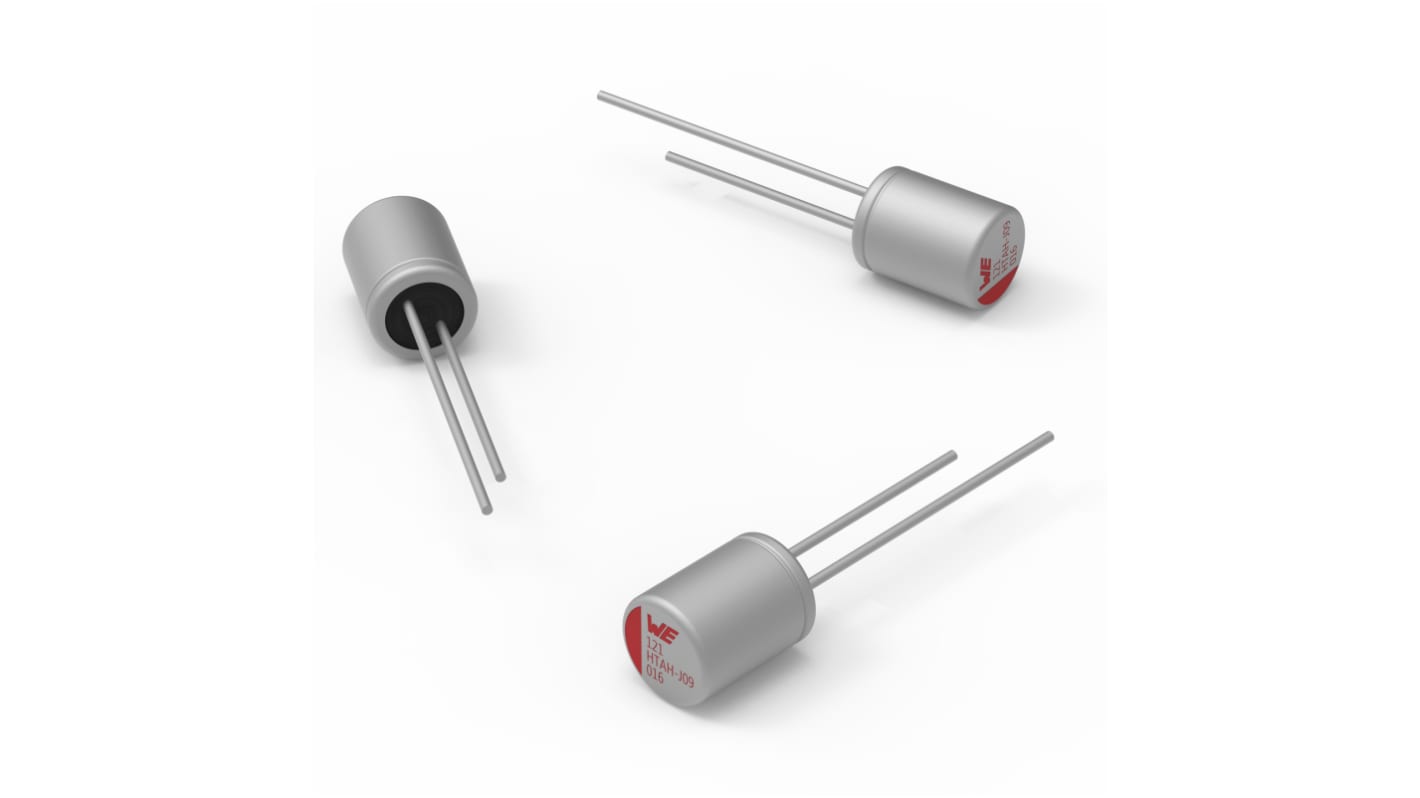

Wurth Elektronik 220 μF Through Hole Aluminium Polymer Capacitor, 25V dc
- RS Stock No.:
- 275-9382
- Mfr. Part No.:
- 870585574003
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 800 units)*
£645.60
(exc. VAT)
£774.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 800 + | £0.807 | £645.60 |
*price indicative
- RS Stock No.:
- 275-9382
- Mfr. Part No.:
- 870585574003
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Technology | Hybrid, Polymer | |
| Product Type | Aluminium Polymer Capacitor | |
| Capacitance | 220μF | |
| Voltage | 25V dc | |
| Mount Type | Through Hole | |
| Package/Case | Plastic | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Dimensions | 8 x 11.5 mm | |
| Length | 11.5mm | |
| Series | WCAP-HTAH | |
| Height | 11.5mm | |
| Automotive Standard | No | |
| Dissipation Factor | 16% | |
| Lifetime | 4000 h | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 8mm | |
| Ripple Current | 2230mA | |
| Leakage Current | 55μA | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Technology Hybrid, Polymer | ||
Product Type Aluminium Polymer Capacitor | ||
Capacitance 220μF | ||
Voltage 25V dc | ||
Mount Type Through Hole | ||
Package/Case Plastic | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Dimensions 8 x 11.5 mm | ||
Length 11.5mm | ||
Series WCAP-HTAH | ||
Height 11.5mm | ||
Automotive Standard No | ||
Dissipation Factor 16% | ||
Lifetime 4000 h | ||
Minimum Operating Temperature -55°C | ||
Diameter 8mm | ||
Ripple Current 2230mA | ||
Leakage Current 55μA | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik hybrid capacitor has high ripple current characteristics and high stability over the temperature range.
It has application in industry and telecommunication
Low leakage current
