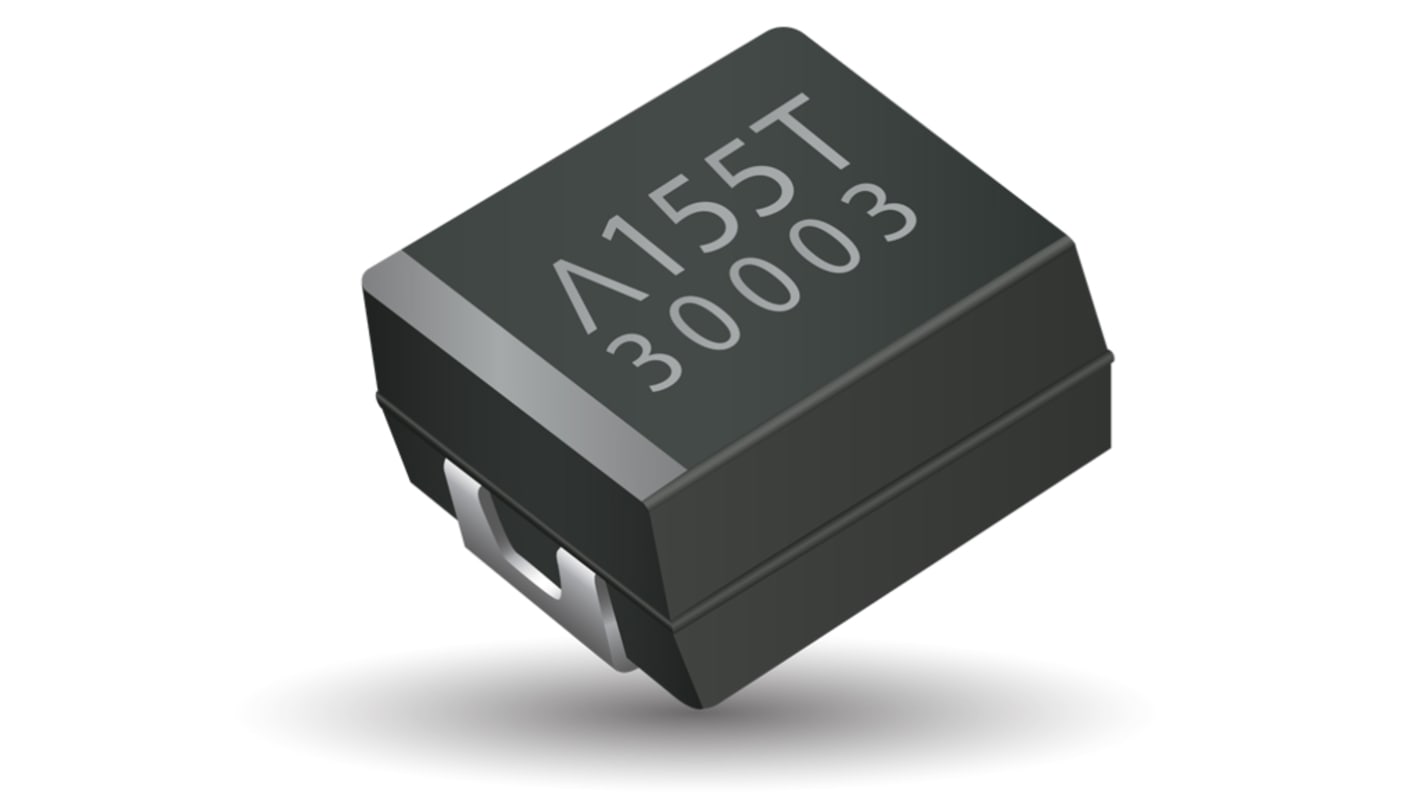

AVX 22 μF Surface Polymer Capacitor, 6.3V dc
- RS Stock No.:
- 249-0438
- Mfr. Part No.:
- TCQB226M006R0070E
- Brand:
- AVX
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£4.21
(exc. VAT)
£5.05
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 24 May 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.421 | £4.21 |
| 100 - 490 | £0.377 | £3.77 |
| 500 + | £0.31 | £3.10 |
*price indicative
- RS Stock No.:
- 249-0438
- Mfr. Part No.:
- TCQB226M006R0070E
- Brand:
- AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AVX | |
| Product Type | Polymer Capacitor | |
| Technology | Polymer | |
| Capacitance | 22μF | |
| Voltage | 6.3V dc | |
| Mount Type | Surface | |
| Package/Case | 1210 | |
| Lead Pitch | 1.4mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Dimensions | 3.5 x 2.8 x 1.9 mm | |
| Height | 1.9mm | |
| Length | 3.5mm | |
| Series | TCQ | |
| Electrolyte Type | Solid | |
| Minimum Operating Temperature | -55°C | |
| Lifetime | 2000 h | |
| Automotive Standard | No | |
| Leakage Current | 13.2μA | |
| Dissipation Factor | 6% | |
| Select all | ||
|---|---|---|
Brand AVX | ||
Product Type Polymer Capacitor | ||
Technology Polymer | ||
Capacitance 22μF | ||
Voltage 6.3V dc | ||
Mount Type Surface | ||
Package/Case 1210 | ||
Lead Pitch 1.4mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Dimensions 3.5 x 2.8 x 1.9 mm | ||
Height 1.9mm | ||
Length 3.5mm | ||
Series TCQ | ||
Electrolyte Type Solid | ||
Minimum Operating Temperature -55°C | ||
Lifetime 2000 h | ||
Automotive Standard No | ||
Leakage Current 13.2μA | ||
Dissipation Factor 6% | ||
- COO (Country of Origin):
- CZ
The AVX TCQ Series has automotive conductive polymer chip & low ESR conductive polymer capacitors series.it designed to operate within the limits of the environmental conditions specified for series. If operated continuously at their maximum temperature and humidity limit, beyond these limits, capacitors may exhibit a parametric shift in capacitance and increases in ESR.
100% surge current tested
Robust design for automotive applications
Full voltage range is 2.5 - 50 V
Temperature range is -55 °C to +125 °C
