Select all	Attribute	Value
	Brand	AVX
	Technology	Polymer
	Product Type	Polymer Capacitor
	Capacitance	4.7μF
	Voltage	25 V
	Mount Type	Surface Mount
	Package/Case	1210
	Lead Pitch	1.4mm
	Tolerance	±20 %
	Maximum Operating Temperature	105°C
	Dimensions	3.5 x 2.8 x 1.9 mm
	Length	3.5mm
	Height	1.9mm
	Series	TCJ
	Electrolyte Type	Solid
	Automotive Standard	No
	Lifetime	2000 h
	Minimum Operating Temperature	-55°C
	Leakage Current	11.8μA
	Dissipation Factor	6%

	Select all
	Brand AVX
	Technology Polymer
	Product Type Polymer Capacitor
	Capacitance 4.7μF
	Voltage 25 V
	Mount Type Surface Mount
	Package/Case 1210
	Lead Pitch 1.4mm
	Tolerance ±20 %
	Maximum Operating Temperature 105°C
	Dimensions 3.5 x 2.8 x 1.9 mm
	Length 3.5mm
	Height 1.9mm
	Series TCJ
	Electrolyte Type Solid
	Automotive Standard No
	Lifetime 2000 h
	Minimum Operating Temperature -55°C
	Leakage Current 11.8μA
	Dissipation Factor 6%

Datasheet - TCJB475M025R0150E

COO (Country of Origin):: CZ

The AVX TCJ Series has conductive polymer solid electrolytic chip capacitors & these capacitors are for general use in commercial, industrial , networking and other applications, it benign failure mode under recommended use conditions & designed to operate within the limits of the environmental conditions specified for series.

Conductive polymer electrode

3x reflow 260 °C compatible

Lower ESR

100% surge current tested

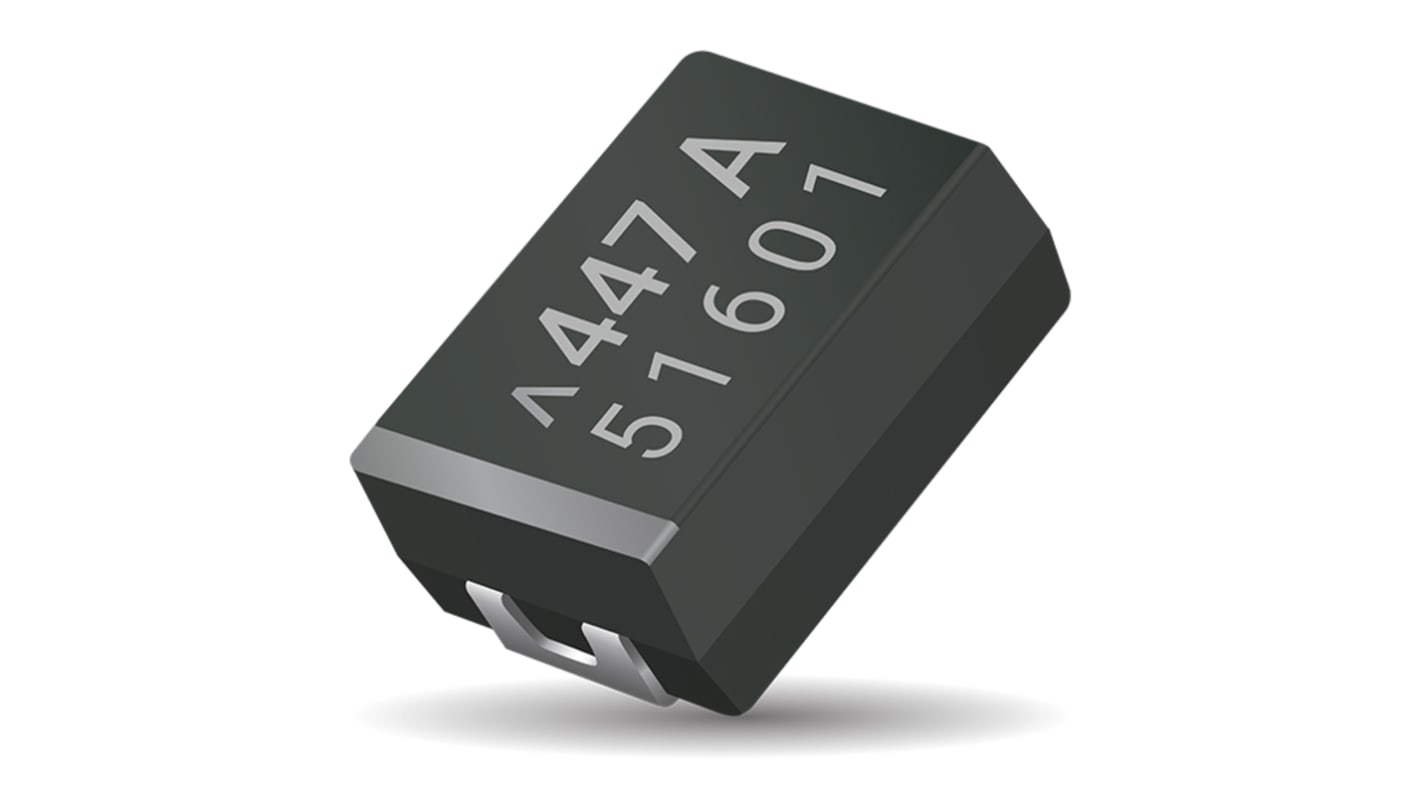

AVX 4.7 μF Surface Mount Polymer Capacitor, 25 V
