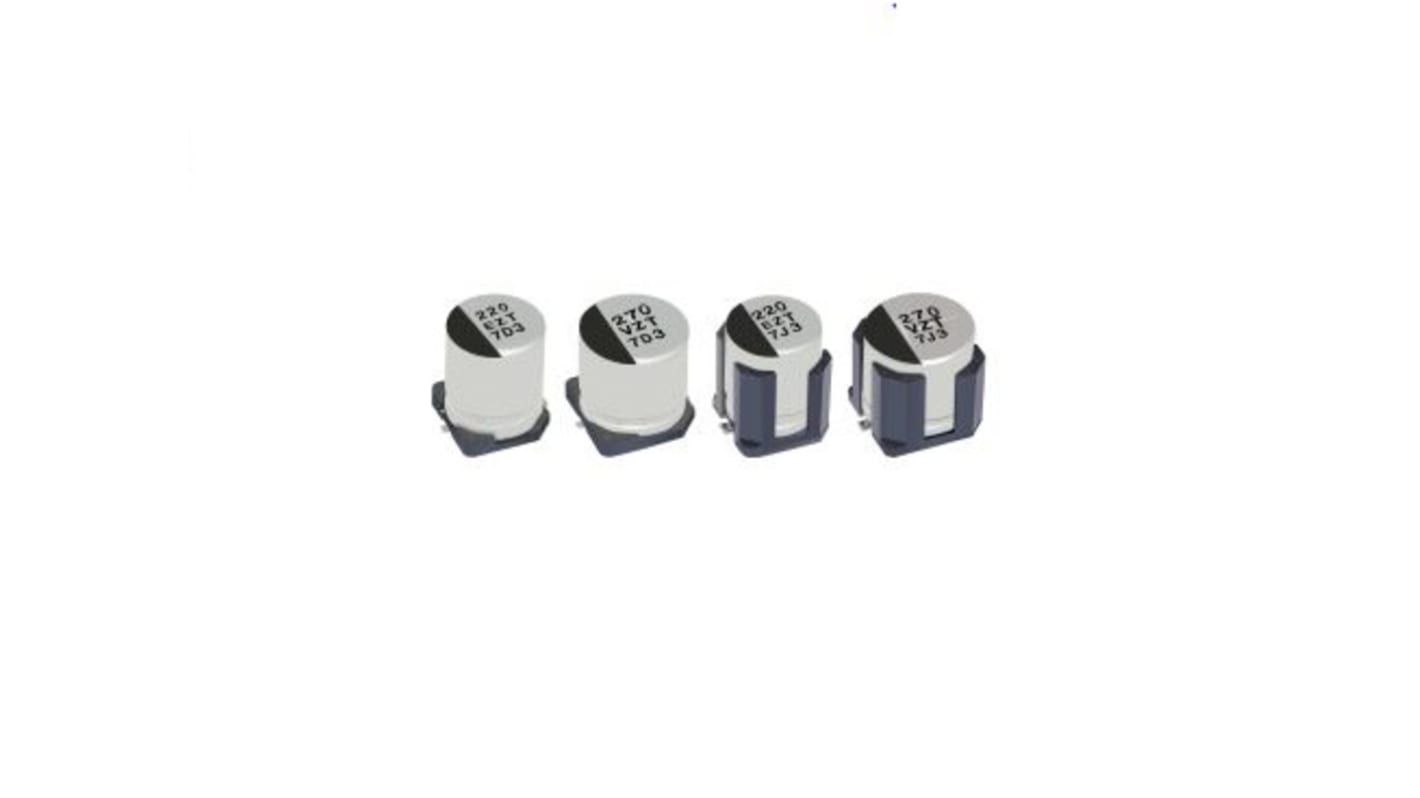

Panasonic 270μF Surface Mount Polymer Capacitor, 35V dc

Subtotal (1 reel of 500 units)*

£470.00

(exc. VAT)

£565.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
500 +£0.94£470.00

*price indicative

RS Stock No.:
210-6012
Mfr. Part No.:
EEHZT1V271V
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Technology

Hybrid

Capacitance

270µF

Voltage

35V dc

Mounting Type

Surface Mount

Equivalent Series Resistance

16mΩ

Lead Pitch

3.1mm

Tolerance

±20%

Length

10.5mm

Height

10mm

Maximum Operating Temperature

+125°C

Dimensions

10 x 10.5mm

Series

ZT

Electrolyte Type

Solid

Lifetime

4000h

Leakage Current

94.5 μA

Ripple Current

3.5A

Diameter

10mm

Dissipation Factor

12%

Minimum Operating Temperature

-55°C

Polarised

Polar

COO (Country of Origin):
JP
The Panasonic ZT series V type uses hybrid technology. It has voltage rating of 25 V and capacitance of 270 uF with 125 °C maximum temperature range. It provides high safety with compact design. It has ESR value 16 mOhm with over all dimensions of 10x10.5 mm.

Endurance 4000 h at 125 ℃
Higher ripple current (75 % to 118 % higher than ZC series)
Vibration-proof product is available upon request.
AEC-Q200 compliant
RoHS compliant
