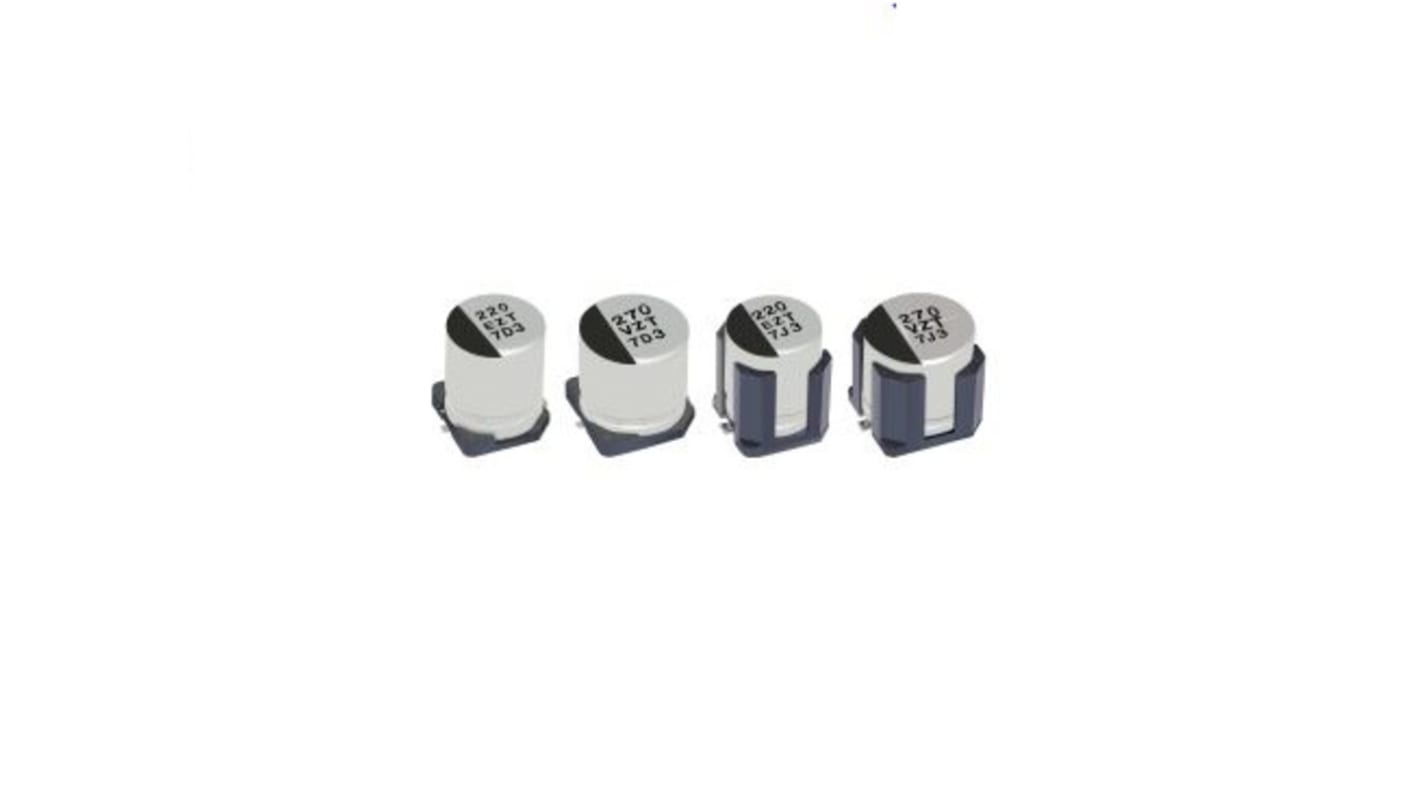

Panasonic 33μF Surface Mount Polymer Capacitor, 63V dc
- RS Stock No.:
- 210-5987
- Mfr. Part No.:
- EEHZT1J330V
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 tape of 2 units)*
£2.50
(exc. VAT)
£3.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,348 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 8 | £1.25 | £2.50 |
| 10 - 48 | £1.00 | £2.00 |
| 50 - 98 | £0.91 | £1.82 |
| 100 - 248 | £0.82 | £1.64 |
| 250 + | £0.80 | £1.60 |
*price indicative
- RS Stock No.:
- 210-5987
- Mfr. Part No.:
- EEHZT1J330V
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Hybrid | |
| Capacitance | 33µF | |
| Voltage | 63V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 32mΩ | |
| Lead Pitch | 3.1mm | |
| Tolerance | ±20% | |
| Length | 10.5mm | |
| Maximum Operating Temperature | +125°C | |
| Height | 10mm | |
| Dimensions | 8 x 10.5mm | |
| Series | ZT | |
| Electrolyte Type | Solid | |
| Dissipation Factor | 8% | |
| Polarised | Polar | |
| Diameter | 8mm | |
| Lifetime | 4000h | |
| Ripple Current | 2.4A | |
| Leakage Current | 20.7 μA | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Hybrid | ||
Capacitance 33µF | ||
Voltage 63V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 32mΩ | ||
Lead Pitch 3.1mm | ||
Tolerance ±20% | ||
Length 10.5mm | ||
Maximum Operating Temperature +125°C | ||
Height 10mm | ||
Dimensions 8 x 10.5mm | ||
Series ZT | ||
Electrolyte Type Solid | ||
Dissipation Factor 8% | ||
Polarised Polar | ||
Diameter 8mm | ||
Lifetime 4000h | ||
Ripple Current 2.4A | ||
Leakage Current 20.7 μA | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- JP
The Panasonic ZT series V type uses hybrid technology. It has voltage rating of 63 V and capacitance of 33 uF with 125 °C maximum temperature range. It provides high safety with compact design. It has ESR value 32 mOhm with over all dimensions of 8x10.5 mm.
Endurance 4000 h at 125 ℃
Higher ripple current (75 % to 118 % higher than ZC series)
Vibration-proof product is available upon request.
AEC-Q200 compliant
RoHS compliant
Higher ripple current (75 % to 118 % higher than ZC series)
Vibration-proof product is available upon request.
AEC-Q200 compliant
RoHS compliant
