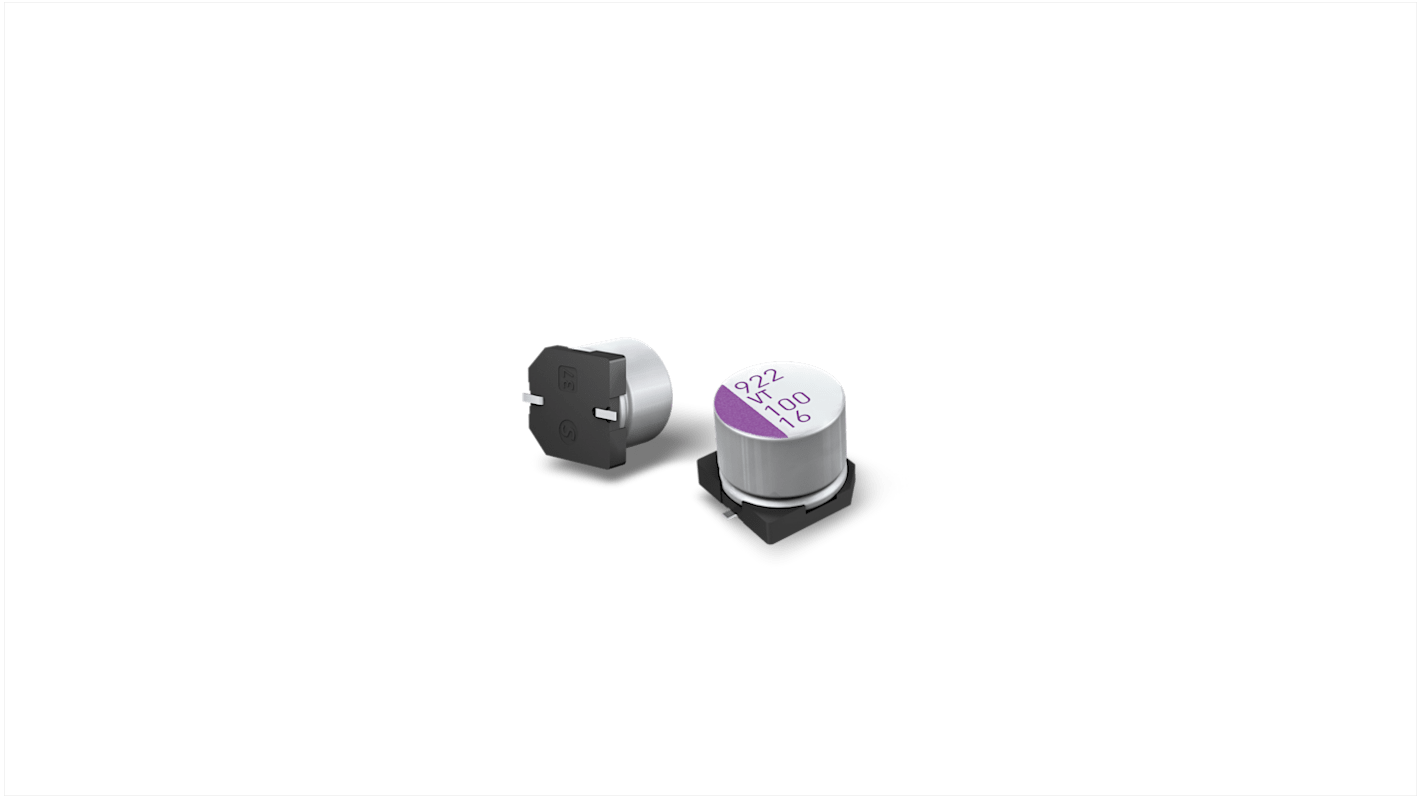

Panasonic 82μF Surface Mount Polymer Capacitor, 35V dc
- RS Stock No.:
- 210-5593
- Mfr. Part No.:
- 35SVT82M
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 tape of 2 units)*
£4.08
(exc. VAT)
£4.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 800 unit(s) shipping from 28 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 18 | £2.04 | £4.08 |
| 20 - 48 | £1.845 | £3.69 |
| 50 - 98 | £1.70 | £3.40 |
| 100 - 198 | £1.46 | £2.92 |
| 200 + | £1.26 | £2.52 |
*price indicative
- RS Stock No.:
- 210-5593
- Mfr. Part No.:
- 35SVT82M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 82µF | |
| Voltage | 35V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 20mΩ | |
| Lead Pitch | 3.2mm | |
| Tolerance | ±20% | |
| Length | 11.9mm | |
| Maximum Operating Temperature | +125°C | |
| Height | 8.3mm | |
| Dimensions | 8 x 11.9mm | |
| Series | SVT | |
| Electrolyte Type | Solid | |
| Dissipation Factor | 12% | |
| Lifetime | 2000h | |
| Leakage Current | 574 μA | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 1.2A | |
| Diameter | 8mm | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 82µF | ||
Voltage 35V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 20mΩ | ||
Lead Pitch 3.2mm | ||
Tolerance ±20% | ||
Length 11.9mm | ||
Maximum Operating Temperature +125°C | ||
Height 8.3mm | ||
Dimensions 8 x 11.9mm | ||
Series SVT | ||
Electrolyte Type Solid | ||
Dissipation Factor 12% | ||
Lifetime 2000h | ||
Leakage Current 574 μA | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 1.2A | ||
Diameter 8mm | ||
Polarised Polar | ||
- COO (Country of Origin):
- JP
The Panasonic Conductive Polymer Aluminium solid capacitors works with low ESR and excellent noise reduction capability. The SVT capacitors are ideal for industrial applications.
2700μF maximum capacitance
–55°C to +125°C category temperature range
±20% capacitance tolerance
–55°C to +125°C category temperature range
±20% capacitance tolerance
