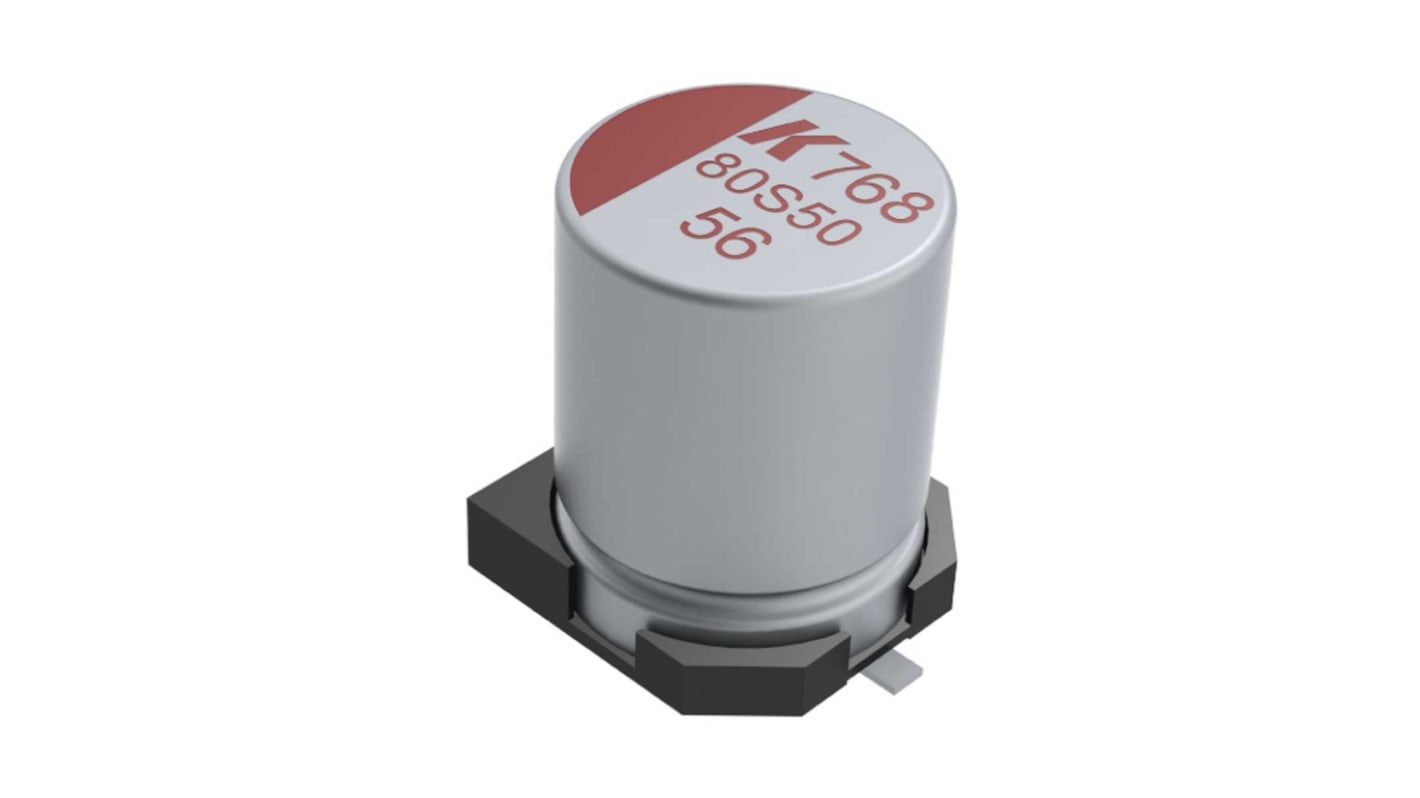

KEMET 120μF Surface Mount Polymer Capacitor, 50V dc
- RS Stock No.:
- 209-5411
- Mfr. Part No.:
- A768MS127M1HLAE024
- Brand:
- KEMET
Bulk discount available
Subtotal (1 reel of 500 units)*
£107.00
(exc. VAT)
£128.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 - 1000 | £0.214 | £107.00 |
| 1500 + | £0.20 | £100.00 |
*price indicative
- RS Stock No.:
- 209-5411
- Mfr. Part No.:
- A768MS127M1HLAE024
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Technology | Polymer | |
| Capacitance | 120µF | |
| Voltage | 50 V dc, 57.5V dc | |
| Dielectric Material Family | Aluminium | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 24mΩ | |
| Lead Pitch | 3.2mm | |
| Tolerance | ±20% | |
| Length | 12.2mm | |
| Maximum Operating Temperature | +125°C | |
| Dimensions | 10 (Dia) x 12.2mm | |
| Series | A768 | |
| Lifetime | 2000h | |
| Ripple Current | 2150mA | |
| Diameter | 10mm | |
| Minimum Operating Temperature | -55°C | |
| Leakage Current | 1200 μA | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Technology Polymer | ||
Capacitance 120µF | ||
Voltage 50 V dc, 57.5V dc | ||
Dielectric Material Family Aluminium | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 24mΩ | ||
Lead Pitch 3.2mm | ||
Tolerance ±20% | ||
Length 12.2mm | ||
Maximum Operating Temperature +125°C | ||
Dimensions 10 (Dia) x 12.2mm | ||
Series A768 | ||
Lifetime 2000h | ||
Ripple Current 2150mA | ||
Diameter 10mm | ||
Minimum Operating Temperature -55°C | ||
Leakage Current 1200 μA | ||
- COO (Country of Origin):
- CN
The KEMET surface mount aluminium polymer capacitor operates on 50V DC and have capacitance range of 120uF with capacitance tolerance of ±20% .It has maximum operating temperature of 125 °C and ripple current 2,150mA. Its dimensions are 10x12.2mm in size.
Capacitance 120uF
Voltage Rating 50V
Ripple Current 2,150mA
Dimensions 10x12.2mm
Tolerance 20%
Voltage Rating 50V
Ripple Current 2,150mA
Dimensions 10x12.2mm
Tolerance 20%
